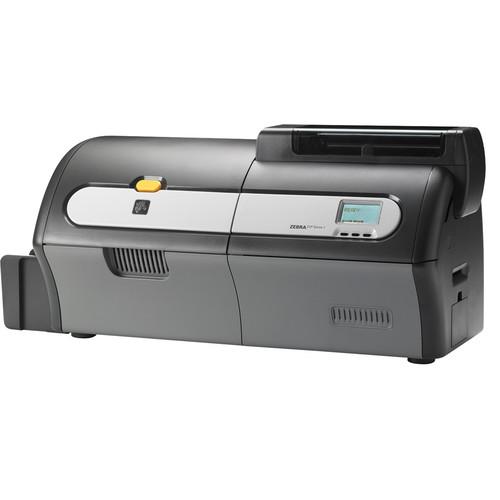

Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00
  • Manufacturer: Zebra
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - ID Card Printers
  • Safety instructions
  • Startup and operation of the id card printers
  • Tips for setting up your Zebra
  • Settings and expert assistance
  • Contact Zebra service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00, which address similar problems with connecting and setting up ID Card Printers Zebra.



User manual for the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00

The user manual for the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00 provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.

With an efficient design able to handle a wide range of media thicknesses the ZXP Series 7 Single-Sided Card Printer with Magnetic Stripe Encoder & Media Starter Kit from Zebra is able to quickly produce prints using a dye sublimation and thermal transfer process. Working with standard CR-80 cards, the ZXP Series 7 is able to produce 300 dpi images in full color YMCKO at a rate of 300 cards/hour or in monochrome at 1375 cards/hour. It will print single-sided and edge-to-edge. Additionally, this model features a high and low coercivity magnetic stripe encoder and comes with a media starter kit.

The printer can hold 200 cards in the input hopper and can hold 100 cards in the output hopper. This unit also has a reject tray that can hold up to 15 cards. It also has a 21-character 6-line LCD display with customizable soft keys for viewing print status and changing settings. Additionally, it has a Kensington lock slot for security as well as both USB 2.0 and Ethernet connectivity.
If you own a Zebra id card printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00:
Printing Method
Print Method Dye sublimation / thermal transfer
Print Resolution 300 dpi
Ribbon Options True Colors ix Series Ribbons
YMCKO: 250 or 750 images/roll
YMCUvK: 750 images/roll
YMCKOK: 250 or 750 images/roll
Half Panel YMC, Full KO: 1250 images/roll
KdO and KrO: 2000 images/roll
WrKr: 2000 images/roll
Blue, Red, Gold, Silver Monochrome: 5000 images/roll
Black Monochrome: 2500 or 5000 images/roll
White Monochrome: 4000 image/roll
Scratch-Off Gray: 3250 images/roll
Other colors available on request
Lamination True Secure i Series Laminates
Linerless Waste-Free 1 mil (0.025 mm) Top and Bottom Laminate: 750 images/roll
Laminate Types: Clear, magnetic stripe, smart card, and holographic wallpaper designs
Custom laminates with registered or wallpaper holographic images available on request
Double/Single-Sided Single
Performance
Print Speed Monochrome, Single-Sided: 1375 cards/hour
YMCKO, Single-Sided: 300 cards/hour
YMCKO, Single-Sided with Lamination: 270 cards/hour
Print Size CR-80, ISO 7810, Type ID-1: 3.375 x 2.125" (85.6 x 54.0 mm)
Card Type PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin composite
Specialty Cards: Adhesive backed, signature panel, transparent cards with IR blocker
Technology Cards: Contact and contactless smart cards
Media Thickness 10-50 mil (0.25-1.27 mm)
For Lamination: 30 mil (0.76 mm)
Capacity Input: 200 cards
Output: 100 cards
Reject: 15 cards
Encoding High and low coercivity magnetic stripe
Connectivity
Interface USB 2.0
10/100 Ethernet
Compatible Operating Systems Windows XP (32-bit), Vista (32/64-bit), Server 2003 (32-bit), 7 (32/64-bit), Server 2008 (32/64-bit), 8 and 8 Pro (32/64-bit), Server 2012 (64-bit)
General
Display 21-character x 6-line LCD display with configurable soft keys
Security Kensington lock slot
Power Requirements 90-264 VAC, 47-63 Hz (50-60 Hz nominal)
Operating Conditions Temperature: 59 to 95°F (15 to 35°C)
Humidity: 20 to 80% inclusive, non-condensing
Storage Conditions Temperature: 23 to 158°F (-5 to 70°C)
Humidity: 10 to 90% inclusive, non-condensing
Temperature, Media: 41 to 68°F (5 to 20°C)
Humidity, Media: 30 to 50% relative
Dimensions 12.0 x 27.5 x 10.9" (30.6 x 69.9 x 27.7 cm)
Weight 26.9 lb (12.2 kg)
The user manual for the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00 can be downloaded in .pdf format if it did not come with your new id card printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zebra users keep a unique electronic library for Zebra id card printerss, where you can use our link to download the user manual for the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00.

The user manual lists all of the functions of the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00, all the basic and advanced features and tells you how to use the id card printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zebra service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zebra ZXP Series 7 Single-Sided Card Printer Z710M0CD000US00. User manuals are also available on the Zebra website under Computers & Solutions - Printers & Accessories - ID Card Printers.
