User manual Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982

Operating instructions and pdf manual for use - Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982 User manual, User manual Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982, Zeiss, 3-15x50, Conquest, HD5, Riflescope, 522631, 9982,


User manual for Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982

Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982
  • Manufacturer: Zeiss
  • Basic description and contents of package
  • Product classification: Optics - Riflescopes & Sights - Riflescopes
  • Safety instructions
  • Startup and operation of the riflescopes
  • Tips for setting up your Zeiss
  • Settings and expert assistance
  • Contact Zeiss service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982, which address similar problems with connecting and setting up Riflescopes Zeiss.



User manual for the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982

The user manual for the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982 provides necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

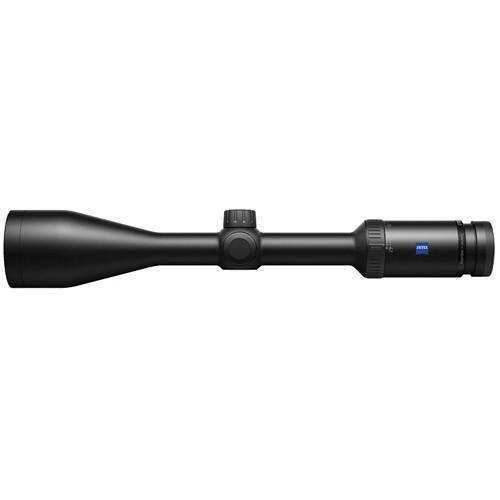

The 3-15x50 Conquest HD5 Riflescope from Zeiss combines large objective lens, fully multicoated optics made of High Definition (HD) glass, longer than average range capability, and zoom magnification. The 50mm objective increases light gathering capacity of this rifle scope which allows you to extend your hunting day and take shots at dawn or dusk. The High Definition (HD) glass and Zeiss' T* anti-reflection coatings provide enhanced light transmission and image clarity, contrast, and color fidelity. The LotuTec protective lens coatings repel water and dust particles from the surface to allow you an unobstructed clear view in a variety of environmental and terrain conditions.

Aiming is parallax-free from 50 yards to infinity, and offers a 1/4 MOA per click impact point correction, a 34 MOA windage, and 60 MOA elevation adjustment with hunting turrets. Simply remove the protective cup, make your windage or elevation adjustment, and close the cup. To make it easier for you to use any flat shooting or hot loaded magnum, ultra magnum and Weatherby type hunting calibers the scope features a non-illuminated Rapid-Z 800 reticle with the newly added confidence of enhanced solid crosshairs for close distance low light target acquisition on big game. The RAPID-Z ballistic reticles feature numbered holdover lines that correspond to target distances and wind compensation hashes to correct for crosswinds. The reticle is located at a second focal plane and appears the same in size regardless of your zoom setting. To adjust it, use the left side parallax correction turret.

The riflescope also features a 1" diameter main tube and is nitrogen-filled water and fogproof. The housing is made anodized aluminum alloy and has a scratch-resistant matte-black finish.
If you own a Zeiss riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982:
Magnification 3 - 15x
Objective Lens Diameter 50mm
Reticle Rapid-Z 800, second focal plane
Field of View 34' - 6.8' @ 100 yd (11.3 - 2.3 m @ 100 m)
Parallax Correction Parallax - free from 50 yards
Eye Relief 89 mm
Exit Pupil Diameter 10 - 3.3 mm
Diopter Adjustment +2 to -3
Impact Point Correction 1/4 MOA
Maximum Windage/Elevation Adjustment 34 MOA / 60 MOA
Weatherproofing Waterproof rated to 400 mbar
Fogproof
Temperature Ranges - 4 to 140°F (- 20 to 60°C)
Dimensions Length: 13.8" (35 cm)
Main tube diameter: 1" (25.4 mm)
Objective tube diameter: 2.4" (60 mm)
Eyepiece tube diameter: 1.73" (44 mm)
Weight 24.7 oz (700 g)
The user manual for the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982 can be downloaded in .pdf format if it did not come with your new riflescopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zeiss users keep a unique electronic library for Zeiss riflescopess, where you can use our link to download the user manual for the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982.

The user manual lists all of the functions of the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982, all the basic and advanced features and tells you how to use the riflescopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zeiss service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982. User manuals are also available on the Zeiss website under Optics - Riflescopes & Sights - Riflescopes.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982

Post new comment to Zeiss 3-15x50 Conquest HD5 Riflescope 522631 9982

Subject: Parrallax
Date: 30.12.2019 00:39:20Author: Wisener Darwin
What is the parallax increments on the conquest hd5 3-15x50. Looks like it starts at 50.... each increment thereafter is what distance? 50 yards?

Please help.... thank you... Darwin
