User manual Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980

Operating instructions and pdf manual for use - Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980 User manual, User manual Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980, Zeiss, 4-12x42, Terra, 3X, Riflescope, RZ-8, Retic


User manual for Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980

Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980
  • Manufacturer: Zeiss
  • Basic description and contents of package
  • Product classification: Optics - Riflescopes & Sights - Riflescopes
  • Safety instructions
  • Startup and operation of the riflescopes
  • Tips for setting up your Zeiss
  • Settings and expert assistance
  • Contact Zeiss service
  • Troubleshooting
  • Warranty information
  • Price: 450 USD
We recommend checking out our discussion threads on the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980, which address similar problems with connecting and setting up Riflescopes Zeiss.



User manual for the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980

The user manual for the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980 provides necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

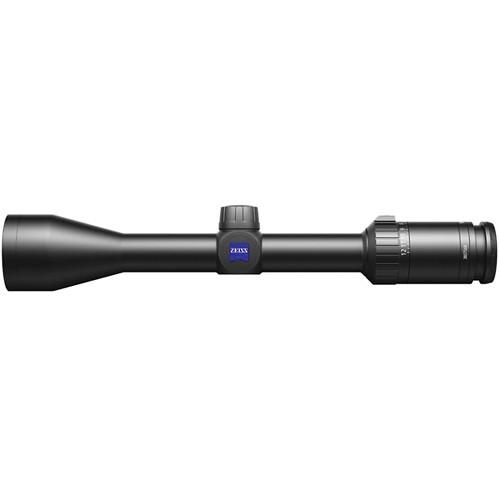

The 4-12x42 Terra 3X Riflescope with RZ-8 reticle from Zeiss combines 42mm objective lens, Zeis's MC optical coatings, zoom magnification, and durable construction. The Zeiss' MC anti-reflection coatings enhance light transmission for increased image brightness and contrast.

Aiming is parallax-free from 100 yards to infinity, and offers a 1/4 MOA per click impact point correction, a 44 MOA windage, and 44 MOA elevation adjustment with standard hunting turrets. Simply remove the protective cup, make your windage or elevation adjustment, and close the cup. To make it easier for you to use all flat shooting magnum hunting calibers the scope features a non-illuminated RZ 8 reticle with the newly added confidence of an enhanced solid crosshairs for close distance target acquisition during low light encounters. The reticle is located at a second focal plane and appears the same in size regardless of your zoom setting. To adjust it, use the left side parallax correction turret.

The riflescope also features a 1" diameter main tube and is nitrogen-filled water and fogproof. The housing is made anodized aluminum alloy and has a scratch-resistant matte-black finish.
If you own a Zeiss riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980:
Magnification 4 - 12x
Objective Lens Diameter 42 mm
Main-Tube Diameter 1"
Reticle RZ-8, second focal plane
Field of View 29 - 11' @ 100 yd
Angle of View 5.5 - 2°
Eye Relief 3.5" (90 mm)
Exit Pupil Diameter 10.5 - 3.5 mm
Diopter Adjustment +2.5 to -2.5
Parallax Correction 100 yd (91.4 m)
Impact Point Correction 1/4 MOA
Maximum Windage/Elevation Adjustment 44 MOA / 44 MOA
Operating temperature -13 to 122°F (-25 to 50°C)
Water Resistance Water resistant to 400 mbar
Length 12.4" (32 cm)
Weight 14.8 oz (419 g)
Packaging Info
Package Weight 2.45 lb
Box Dimensions (LxWxH) 15.4 x 3.7 x 3.7"
The user manual for the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980 can be downloaded in .pdf format if it did not come with your new riflescopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zeiss users keep a unique electronic library for Zeiss riflescopess, where you can use our link to download the user manual for the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980.

The user manual lists all of the functions of the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980, all the basic and advanced features and tells you how to use the riflescopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zeiss service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980. User manuals are also available on the Zeiss website under Optics - Riflescopes & Sights - Riflescopes.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980

Post new comment to Zeiss 4-12x42 Terra 3X Riflescope (RZ-8 Reticle ) 522711 9980

Subject: zeiss terra 3x 4-12x42
Date: 16.05.2019 07:48:06Author: Mike de Jager
Good Morning,
I need the instruction manual for the rifle scope mentioned above.

Kind Regards
Reply
