User manual for the Zeiss 522431-9920-010 Victory HT 3-12x56 522431-9920-010
The user manual for the Zeiss 522431-9920-010 Victory HT 3-12x56 522431-9920-010 provides
necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

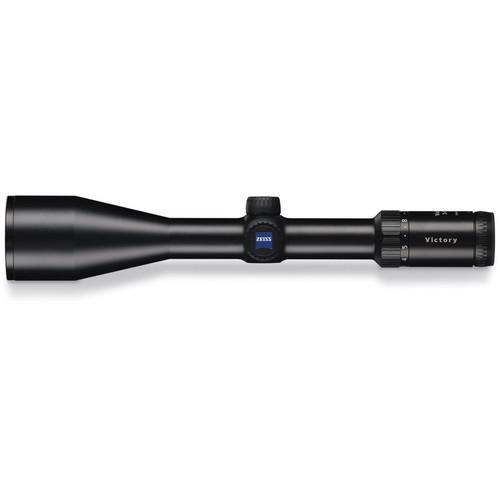

The Zeiss 522431-9920-010 Victory HT 3-12x56 Riflescope is equipped with bullet drop compensation ASV and a non-illuminated reticle #20 (Z-plex), for achieving accurate aiming at all times. The combination of the advanced SCHOTT HT glass, ASV elevated turret, and a high-performance 56mm objective lens makes this riflescope accurate at any distance, in any light.
The equally fine Reticle Z-Plex sits in the 2nd image plane. It therefore offers particularly precise aiming for long-range shooting in daylight. With the Z-Plex, the posts are in the shape of arrows pointing to the fine lines in the middle. This makes it possible to aim with precision at particularly small targets.
This riflescope achieves up to 95% or more light transmission, and the optical concept of this riflescope offers low light performance. With its SCHOTT HT high-transmission lens and a reticle (20) for minimum target coverage, this riflescope allows you to successfully hunt for a long duration. Its compact construction with eyepiece enables the scope to be mounted low on the rifle, merging the 2 into a low-profile, high-performing shooting unit. The lightweight, matte black, aircraft-grade aluminum housing is both elegant and rugged.
|
If you own a Zeiss riflescopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Zeiss 522431-9920-010 Victory HT 3-12x56 522431-9920-010 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Zeiss 522431-9920-010 Victory HT 3-12x56 522431-9920-010:
| Reticle | #20 | | Image | Plane: 2 | | Magnification | 3.0x & 12.0x | | Effective Diameter | Lens
For 3.0x: 1.73" (44.00 mm)
For 12.0x: 2.20" (56.00 mm) | | Exit Pupil Diameter | For 3.0x: 0.59" (14.90 mm)
For 12.0x: 0.19" (4.70 mm) | | Twilight Factor | For 3.0x: 8.5
For 12.0x: 25.9 | | Field of View | For 3.0x: 37.50' (11.43 m) at 100 yards
For 12.0x: 10.50' (3.20 m) at 100 yards | | Viewing Angle | Objective
For 3.0x: 7.2°
For 12.0x: 2° | | Diopter Adjustment | +2/-4 dpt | | Eye Relief | 3.54" (89.92 mm) | | Parallax-Free | 109.0 yards (0.1 km) | | Adjustment Range | 43.2" (1,097.3 mm) at 100 yards | | Adjustments | 0.34 MOA per click | | Diameter | Center Tube: 1.18" (30.00 mm)
Eyepiece: 1.65" (42.00 mm)
Objective: 2.44" (62.00 mm) | | Coating | LotuTec | | Waterproof | 13.10' (3.00 m) | | Operating Temperature | -13 to 122°F (-25 to 50°C) | | Length | 13.66" (346.96 mm) | | Weight | 19.90 oz (564.16 g) | |
