User manual Zeiss 8x54 Victory HT Binocular 52 56 28

Operating instructions and pdf manual for use - Zeiss 8x54 Victory HT Binocular 52 56 28 User manual, User manual Zeiss 8x54 Victory HT Binocular 52 56 28, Zeiss, 8x54, Victory, HT, Binocular, 52, 56, 28, Video


User manual for Zeiss 8x54 Victory HT Binocular 52 56 28

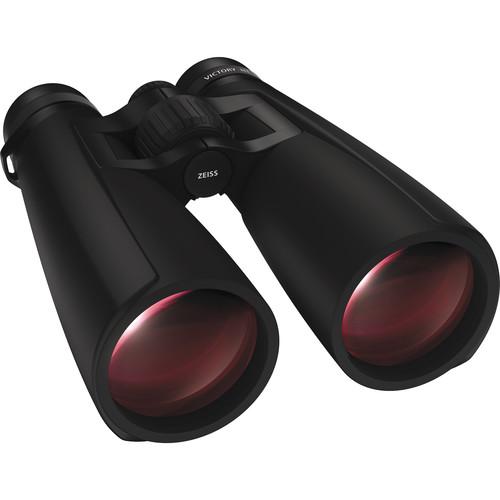

Zeiss  8x54 Victory HT Binocular 52 56 28
  • Manufacturer: Zeiss
  • Basic description and contents of package
  • Product classification: Optics - Binoculars - Binoculars
  • Safety instructions
  • Startup and operation of the binoculars
  • Tips for setting up your Zeiss
  • Settings and expert assistance
  • Contact Zeiss service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Zeiss 8x54 Victory HT Binocular 52 56 28, which address similar problems with connecting and setting up Binoculars Zeiss.



User manual for the Zeiss 8x54 Victory HT Binocular 52 56 28

The user manual for the Zeiss 8x54 Victory HT Binocular 52 56 28 provides necessary instructions for the proper use of the product Optics - Binoculars - Binoculars.

The 8x54 Victory HT Binocular from Zeiss combines their proprietary High Transmission (HT) optical system with large objectives to produce an optic with outstanding performance, especially in low-light conditions. Zeiss' HT system delivers 95% light transmission from the objectives to the user's eyes by using Schott fluoride (FL) glass elements with multicoated with Zeiss T* anti-reflection coatings to maximize light transmission through the entire optical channel. The highly reflective Abbe-Koenig prism design complements the FL glass and T* coatings, resulting in an image that is exceptionally bright and rich with contrast, clarity, and detail from dawn to dusk.
If you own a Zeiss binoculars and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zeiss 8x54 Victory HT Binocular 52 56 28 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Zeiss  8x54 Victory HT Binocular 52 56 28Download user manual for Zeiss 8x54 Victory HT Binocular 52 56 28
(PDF file, 1.54 MB)
Additional parameters of the Zeiss 8x54 Victory HT Binocular 52 56 28:
Specifications
    Prism Type Roof
    Magnification 8x
    Objective Lens Diameter 54mm
    Angle of View 60° (apparent)
    Field-of-View 390' @ 1000 yd / 129.48 m @ 1000 m
    Minimum Focus Distance 11.5' / 3.51 m
    Exit Pupil Diameter 6.7  mm
    Eye Relief 16  mm
    Interpupillary Adjustment 54 - 76 mm / 2.13 - 2.99"
    Dioptric Correction ±3
    Focus Type Center
    Tripod Mount Yes (Adapter Optional)
    Dimensions 7.6 x 5.6" / 19.30 x 14.22  cm
    Weight 2.19 lb / 995 g
    Packaging Info
    Package Weight 4.15 lb
    Box Dimensions (LxWxH) 10.394 x 7.874 x 6.378"
    The user manual for the Zeiss 8x54 Victory HT Binocular 52 56 28 can be downloaded in .pdf format if it did not come with your new binoculars, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zeiss users keep a unique electronic library for Zeiss binocularss, where you can use our link to download the user manual for the Zeiss 8x54 Victory HT Binocular 52 56 28.

    The user manual lists all of the functions of the Zeiss 8x54 Victory HT Binocular 52 56 28, all the basic and advanced features and tells you how to use the binoculars. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zeiss service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zeiss 8x54 Victory HT Binocular 52 56 28. User manuals are also available on the Zeiss website under Optics - Binoculars - Binoculars.
