User manual for the Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062

The user manual for the Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062 provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.

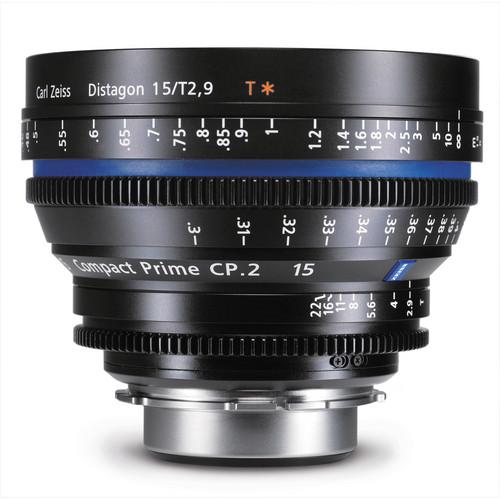

The Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount with Imperial Markings is a cine prime lens designed for filmmaking and video production applications. Aside from great optics and mechanics, it offers broad flexibility in the areas of camera compatibility, follow-focus compatibility, and shooting capacity.

Announced at NAB 2012, this lens is a super-wide addition to Zeiss's Compact Prime CP.2 family of cine primes. Like the rest of the family, the 15mm features an interchangeable-mount system that affords a major forward-looking benefit -- not only can the lens now be used with cameras of different mounts, but rather it is ensured to also be compatible with most all future cameras. The system offers compatibility with PL, EF, F, MFT and E mounts. Zeiss's website provides instructions on how to dismantle an existing mount and assemble a new one. The five mounts allow use with cine cameras and DSLRs.

The CP.2 15 is designed to shoot wide angles in tight spaces and does so very effectively. It's a rectilinear flat field lens that does extremely well in the distortion area, minimizing it to almost non-existence and producing razor-sharpness to the very edges of a frame, even on full frame sensor cameras. The 15mm is a great tool for shooting architectural settings in confined spaces, as it accurately captures horizontal and vertical lines and delivers natural looks.

The optics and mechanics are superior too. The lens incorporates two aspheric lens elements and two special types of glass with abnormal partial dispersion that exceptionally corrects for chromatic aberration. Zeiss-famous T* anti-reflective coating along with internal light traps provide advanced flare suppression. Fourteen high-precision iris blades open up consistently circular across all T-stops, allowing impressive highlights in out-of-focus areas and producing smooth bokeh.

As for high flexibility, in addition to the interchangeable-mount system, the CP.2 15, like the rest of its family, provides full coverage of full frame 24 x 36 sensors. Accordingly, it can, now or at a future time, be used with any 24 x 36 sensor camera, such as the Canon 5D and 1DC and the Nikon D800.

The lens also offers follow-focus flexibility. Across the entire CP.2 family, the front diameter is consistent, focus and iris gears are standard, and the housing is cine-style, offering thus compatibility with all standardized follow-focus systems. In addition, the CP.2 15 also offers a focus ring rotation of a manual 300° and as such allows accurate follow-focusing.

Yet back to flexibility -- for anyone who wants to take advantage of the 4K shooting capacity of many of the cameras being released, the entire CP.2 family, with the 15mm included, is 4K-compatible.

The 15mm is also color-matched with the rest of the CP.2 family, and so swapping it with another from within the family can conveniently be done without correcting for changes in post.

Built sturdy and with long-lasting optics, and promising future-proof compatibility, the 15mm can be relied on for many years of use in sharp resolution.

The particular page you've clicked on is for an MFT mount version with imperial body markings.
If you own a Zeiss digital cine lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062Download user manual for Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062
(PDF file, 2.42 MB)
Additional parameters of the Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062:
Specifications
    Mount Type MFT mount
    Lens Body Markings In imperial measurements (feet)
    Focal Length 15 mm
    Aperture T2.9 -22
    Close Focus Distance From image plane: 12" (.3 m)
    Angle of View 79°
    Focus Rotation 300°
    Iris Blades 14
    Housing Cine-style
    Weight 2 lbs (.9 kg)
    Packaging Info
    Package Weight 4.4 lb
    Box Dimensions (LxWxH) 10.4 x 9.2 x 8.9"
    The user manual for the Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062 can be downloaded in .pdf format if it did not come with your new digital cine lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zeiss users keep a unique electronic library for Zeiss digital cine lensess, where you can use our link to download the user manual for the Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062.

    The user manual lists all of the functions of the Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062, all the basic and advanced features and tells you how to use the digital cine lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zeiss service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zeiss Compact Prime CP.2 15mm/T2.9 MFT Mount 1889-062. User manuals are also available on the Zeiss website under Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.
