User manual for the Zigen ZIG-HX-1616-HDBT 16x16 Modular HDMI ZIG-HX-1616-HDBT
The user manual for the Zigen ZIG-HX-1616-HDBT 16x16 Modular HDMI ZIG-HX-1616-HDBT provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - DA & Extender/Repeater Accessories.

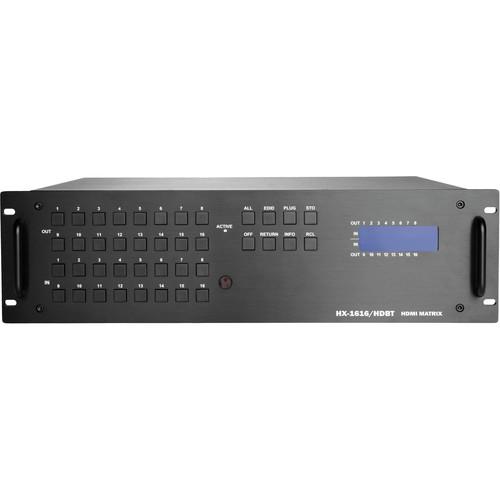

The ZIG-HX-1616-HDBT 16x16 Modular HDMI HDbaseT Matrix Routing Switcher from Zigen is designed to route and extend high resolution digital video signals. This Matrix switcher supports up to 16 HDMI input/output interfaces and 16 RJ45 outputs over CAT5e. It is HDMI 1.4b compatible and supports resolutions up to 4k x 2k at 30 Hz and HDTV 1080p at 60 Hz. The HX-1616 ensures simultaneous distribution of any input source signal to one or more HDCP compliant displays (all-to-one/one-to-all combination). It also features a memory control option which can save up to eight frequently used I/O configurations as presets. The switcher can be operated via the front panel, RS-232, IR, or Ethernet.
|
If you own a Zigen da & extender/repeater accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Zigen ZIG-HX-1616-HDBT 16x16 Modular HDMI ZIG-HX-1616-HDBT in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Zigen ZIG-HX-1616-HDBT 16x16 Modular HDMI ZIG-HX-1616-HDBT:
| Compatibility | Receivers: ZIG-HVX-70R and ZIG-HVX-100R
I/O Cards: HX-HH-L, HX-HH-R, HX-70-LSC, HX-70-RCS, HX-100-LSC, HX-100-RSC | | Connectors | 16 x HDMI Input, Type A
16 x RJ-45 Output
1 x RS-232 9-pin female, D Type
1 x RJ-45 LAN
2 x RS-485 | | Switches | 1 x 2-pin DIP switcher
1 x 8-pin DIP switcher | | Maximum Resolution | 4k x 2k @ 30 Hz (8-bit) | | TMDS | 300 MHz highest frequency | | Power | 100 - 240 VAC, 50 / 60 Hz, internal | | Supported HDMI Cable Length | 32.8' (10.0 m) minimum | | Cat-5e Cable Distance | 328' (100 m) maximum | | Baud Rate | 9600 bps; 8 data bits, 1 stop bit, no parity | | Ethernet Protocol | HTTP, DHCP, TCP/IP, ICMP (ping) | | Mounting | 3 RU rackmountable | | Finish | Black aluminum | | Dimensions (L x W x H) | 13.2 x 19.0 x 5.1" (336.0 x 482.0 x 130.0 mm) | | Weight | 16.64 lb (7.55 kg) | |
The user manual for the Zigen ZIG-HX-1616-HDBT 16x16 Modular HDMI ZIG-HX-1616-HDBT can be downloaded in .pdf
format if it did not come with your new da & extender/repeater accessories, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Zigen users keep a unique electronic library
for Zigen da & extender/repeater accessoriess,
where you can use our link to download the user manual for the Zigen ZIG-HX-1616-HDBT 16x16 Modular HDMI ZIG-HX-1616-HDBT.
The user manual lists all of the functions of the Zigen ZIG-HX-1616-HDBT 16x16 Modular HDMI ZIG-HX-1616-HDBT,
all the basic and advanced features and tells you how to use the da & extender/repeater accessories.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Zigen service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Zigen ZIG-HX-1616-HDBT 16x16 Modular HDMI ZIG-HX-1616-HDBT. User manuals are also
available on the Zigen website under Professional Video - Signal Processing & Distribution - DA & Extender/Repeater Accessories.
