User manual Zoom G3X Guitar Effects and Amp Simulator ZG3X
Operating instructions and pdf manual for use - Zoom G3X Guitar Effects and Amp Simulator ZG3X User manual, User manual Zoom G3X Guitar Effects and Amp Simulator ZG3X, Zoom, G3X, Guitar, Effects, Amp, Simulator, ZG3X, Video
User manual for Zoom G3X Guitar Effects and Amp Simulator ZG3X
Manufacturer: Zoom
Basic description and contents of package
Product classification: Pro Audio - Musical Instruments - Effects Pedals
Safety instructions
Startup and operation of the effects pedals
Tips for setting up your Zoom
Settings and expert assistance
Contact Zoom service
Troubleshooting
Warranty information
Price: 200 USD
We recommend checking out our discussion threads on the Zoom G3X Guitar Effects and Amp Simulator ZG3X,
which address similar problems with connecting and setting up Effects Pedals Zoom.
User manual for the Zoom G3X Guitar Effects and Amp Simulator ZG3X
The user manual for the Zoom G3X Guitar Effects and Amp Simulator ZG3X provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Effects Pedals.

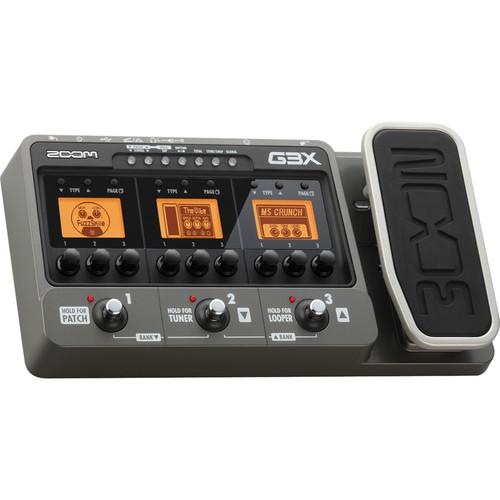

The Zoom G3X Guitar Effects and Amp Simulator comes with the three stomp box style panels to let you use and edit up to six models of effects and amps at the same time. Using the scroll function, you can put the effect you want to adjust on one of the large screens in an instant. Since each effect unit has three knobs, not only is sound creation easy, reordering effects is also simple.nbsp;
If you own a Zoom effects pedals and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Zoom G3X Guitar Effects and Amp Simulator ZG3X in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zoom G3X Guitar Effects and Amp Simulator ZG3X:
Specifications
Effect Types
116
Simultaneous Effects
6
Patch Memory
10 patches x 10 banks
Sampling Frequency
44.1 kHz
Conversion
A/D & D/A: 24-bit, 128 times over-sampling
Signal Processing
32-bit floating point and 32-bit fixed point
Frequency Response
20 Hz to 20 kHz +1 dB -3 dB (10 kΩ load)
Display
LCD x 3
Inputs
1/4" phone jack Rated input level: -20 dBm Input impedance: 1 MΩ Active / Passive (Switch selectable)
Outputs
R 1/4" phone jack Maximum output level: +5 dBm Output load impedance 10 kΩ or higher
L/Mono/Phones 1/4" stereo phone jack (Line/Phones) Maximum output level: [Line] +5 dBm (Output load impedance: 10 kΩ or higher), [Phones] 20 mW + 20 mW into 32 Ω load
Audio Interface: 16-bit / 44.1 kHz Supported OS: Windows XP / Vista / 7 / 8, Mac OS X v10.4 / 10.5 / 10.6 / 10.7
Signal to Noise Ratio
120 dB
Noise Floor
-100 dBm
Power
AC adapter: 9 VDC / Center negative / 500 mA (ZOOM AD-16) Batteries: AA/LR6 battery x 4(sold separately) Battery Life: 6 hours (with alkaline batteries) USB bus power
The user manual for the Zoom G3X Guitar Effects and Amp Simulator ZG3X can be downloaded in .pdf
format if it did not come with your new effects pedals, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Zoom users keep a unique electronic library
for Zoom effects pedalss,
where you can use our link to download the user manual for the Zoom G3X Guitar Effects and Amp Simulator ZG3X.
The user manual lists all of the functions of the Zoom G3X Guitar Effects and Amp Simulator ZG3X,
all the basic and advanced features and tells you how to use the effects pedals.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Zoom service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Zoom G3X Guitar Effects and Amp Simulator ZG3X. User manuals are also
available on the Zoom website under Pro Audio - Musical Instruments - Effects Pedals.
