User manual for the Zoom H4nSP 4-Channel Handy Recorder (2015) ZH4NSP
The user manual for the Zoom H4nSP 4-Channel Handy Recorder (2015) ZH4NSP provides
necessary instructions for the proper use of the product Pro Audio - Recording - Portable Digital Recorders.

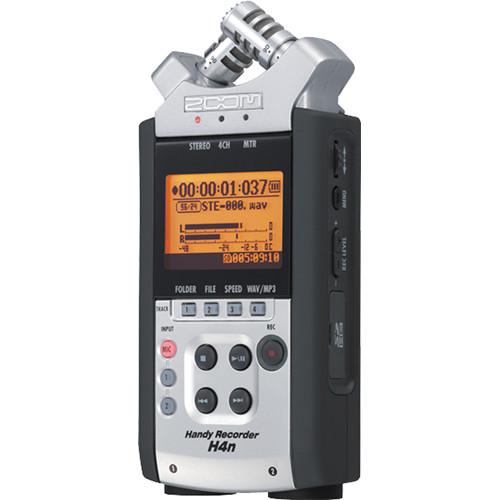

The Zoom H4nSP 4-Channel Handy Recorder (2015) picks up where the H4 left off and adds additional features to an already popular audio recorder. The solution package version offers the Handy Recorder in a more affordable package, wherein additional accesories can be purchased separately. Useful for recording interviews, lectures, rehearsals, meetings, and more, this palm-sized unit packs the ability to record up to 4 channels of audio at greater than CD quality sample rates and bit depths.
The recorder features onboard true X/Y stereo microphones to pick up clear, natural sound without phase shifting. The mics can be rotated to select a 90° or 120° recording pattern for versatility. The digitally-controlled preamps, combined with the high-quality microphones, allows you to capture Linear PCM audio at rates up to 24-bit/96kHz. The recorder captures audio to SD or SDHC cards with capacities up to 32GB. A USB 2.0 port allows you to quickly transfer files to a Mac or PC, or use the H4n as a live audio interface.
For connecting your own microphones or instruments, the unit features XLR/TRS combo input jacks with phantom capability. A 3.5mm line output is provided, and a reference speaker is built-in for quickly reviewing your recordings. The unit operates on a pair of standard AA batteries, and features a Stamina mode to provide up to 11 hours of continuous recording at 16-bit/44.1kHz. Other useful features of the recorder include variable playback speed, automatic and pre-record functions, a low-cut filter and limiter for improving the sound quality of recordings, time stamping, a metronome and tuner, and more. The backlit LCD screen and intuitive controls are easy to use, even for the recording novice.
|
If you own a Zoom portable digital recorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Zoom H4nSP 4-Channel Handy Recorder (2015) ZH4NSP in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Zoom H4nSP 4-Channel Handy Recorder (2015) ZH4NSP:
| Type | Hand-held multi-track stereo SD card recorder | | Recording/Reading Methods | SD/SDHC card (up to 32GB, 2GB included)
USB connection to PC/Mac | | Recording Bit Rate | WAV: 16 and 24-bit
MP3: 48 to 320kbps | | Sampling Frequency | WAV: 44.1/48/96kHz
MP3 - 44.1/48kHz | | Number of Channels | 2 or 4, depending on mode | | Recording Time | Per 1GB of SD memory
Stereo Mode:
MP3: 17 hours 21 mins (128kbps), 6 hours 56 mins (320kbps)
WAV: 1 hour 34 mins (16-bit/44.1kHz), 1 hour 26 mins (16-bit/48kHz), 28 mins (24-bit/96kHz)
4-Channel Mode:
WAV: 47 mins (16-bit/44.1kHz), 28 mins (24-bit/48kHz)
MTR Mode:
WAV: 3 hours 8 mins (16-bit/44.1kHz) | | AD/DA Conversion | 24-bit, 128x oversampling | | Signal Processing | 32-bit | | Phantom Power | 48V, 24V, off | | Inputs | 2 x XLR/TRS combo inputs (balanced, unbalanced)
1 x 3.5mm mic input
2 x Built-in condenser microphones
1 x USB 2.0 port | | Output | 1 x 3.5mm mini stereo headphone/line out jack
1 x USB 2.0 port (same as input) | | Power | 2 x AA or LR6 batteries
AC wall power
USB bus power | | Battery Life | Approx 6 hours (normal) or 11 hours (stamina mode) | | Display | 128 x 64 pixel 1.9" backlit LCD | | Dimensions (WxDxH) | 2.75 x 6.1 x 1.4" (70 x 156 x 35mm) | | Weight | 9.9 oz (280g) (without batteries) | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 7.6 x 5.6 x 2.9" | |
The user manual for the Zoom H4nSP 4-Channel Handy Recorder (2015) ZH4NSP can be downloaded in .pdf
format if it did not come with your new portable digital recorders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Zoom users keep a unique electronic library
for Zoom portable digital recorderss,
where you can use our link to download the user manual for the Zoom H4nSP 4-Channel Handy Recorder (2015) ZH4NSP.
The user manual lists all of the functions of the Zoom H4nSP 4-Channel Handy Recorder (2015) ZH4NSP,
all the basic and advanced features and tells you how to use the portable digital recorders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Zoom service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Zoom H4nSP 4-Channel Handy Recorder (2015) ZH4NSP. User manuals are also
available on the Zoom website under Pro Audio - Recording - Portable Digital Recorders.
