User manual Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W

Operating instructions and pdf manual for use - Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W User manual, User manual Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W, Zoom, iQ5, Stereo, Microphone, iOS, Devices, w


User manual for Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W
  • Manufacturer: Zoom
  • Basic description and contents of package
  • Product classification: Pro Audio - iOS/iPad - Microphones
  • Safety instructions
  • Startup and operation of the microphones
  • Tips for setting up your Zoom
  • Settings and expert assistance
  • Contact Zoom service
  • Troubleshooting
  • Warranty information
  • Price: 70 USD

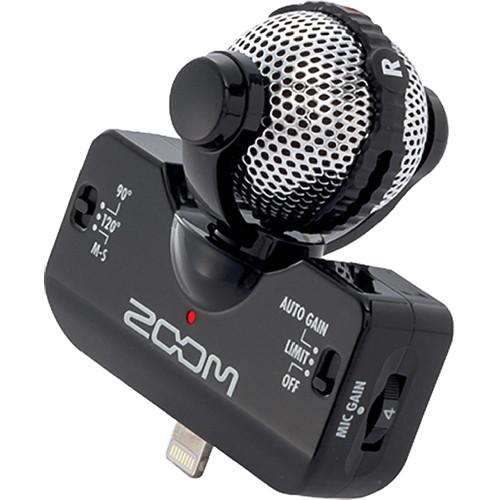

Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W
Click to enlarge image

We recommend checking out our discussion threads on the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W, which address similar problems with connecting and setting up Microphones Zoom.



User manual for the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W

The user manual for the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W provides necessary instructions for the proper use of the product Pro Audio - iOS/iPad - Microphones.

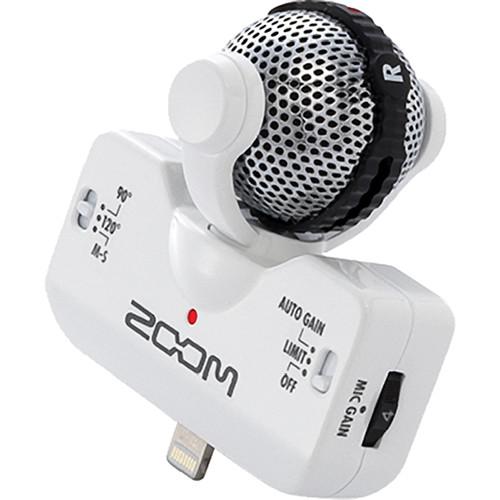

The white iQ5 from Zoom is a compact mid-side stereo condenser microphone for lightning equipped iOS devices. It allows for high-quality 44.1kHz/16-bit, mono-compatible audio tracking and is ideal for recording live concerts, ENG, videos and more.

The iQ5 features a rotating capsule that enables it to be used vertically or horizontally with your iOS device. This allows you to record video with your device situated in either standard or landscape positions while ensuring that the audio is recorded with the correct left-right stereo orientation.

The capsule contains two elements including a directional "mid" mic that captures audio coming from the front and a bidirectional "side" mic that picks up ambient sounds from the sides. The stereo width can be set to either 90° or 120°, or you can record the mid and side mic signals as raw data and use Zoom's Handy Recorder iOS app to adjust the stereo width after the fact. The app also allows you to collapse the signal into phase-coherent mono, ideal for voice recordings such as interviews.

The iQ5 allows you to set the recording level of the microphone manually by using the MIC GAIN wheel, or automatically by choosing from three Auto Gain presets: Concert, Solo or Meeting. The unit also features a built-in limiter for protection against input overloads.
If you own a Zoom microphones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W:
Specifications
Microphone Mid-side (M-S) stereo mic(90°/120°/M-S)
Maximum SPL 120 dB SPL
Input Gain + 0 to + 40dB
Audio 44.1 kHz, 16-bit
Power Powered by the connected iOS device.
The connected iPhone/iPod touch can be powered by connecting the genuine Apple power adapter that was included with it to the USB connector. (iPad/iPad mini does not support this function)
Connector Lightning connector
USB Mini-B connector (only for recharging the connected iOS device)
Stereo mini-jack (combined headphone/line level output)
Compatible Audio Import Formats iPhone 5, iPod touch (5th Gen), iPad (4th Gen), iPad mini
Compatible Operating Systems iOS 6.0 or newer
Dimensions 2.3 x 2.46 x 1.51" (58.6 x 62.45 x 38.5 mm)
Weight 1.1 oz (30.5 g)
Packaging Info
Package Weight 0.3 lb
Box Dimensions (LxWxH) 9.4 x 5.7 x 2.0"
Zoom iQ5 Demo
The user manual for the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W can be downloaded in .pdf format if it did not come with your new microphones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zoom users keep a unique electronic library for Zoom microphoness, where you can use our link to download the user manual for the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W.

The user manual lists all of the functions of the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W, all the basic and advanced features and tells you how to use the microphones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zoom service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W. User manuals are also available on the Zoom website under Pro Audio - iOS/iPad - Microphones.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W

Post new comment to Zoom iQ5 Stereo Microphone for iOS Devices with Lightning ZIQ5W

Subject: Mic and video
Date: 18.10.2016 23:51:53Author: Kennedy
Hi I can't get the mic to pick up the sound when I am trying to film on the video of my iPhone 6. Am I missing a setting I need ?
