User manual Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R

Operating instructions and pdf manual for use - Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R User manual, User manual Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R, Zoom, TAC-2R, Thunderbolt, Audio, Interface, ZTAC2R, Video


User manual for Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R

Zoom  TAC-2R - Thunderbolt Audio Interface ZTAC2R
  • Manufacturer: Zoom
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Zoom
  • Settings and expert assistance
  • Contact Zoom service
  • Troubleshooting
  • Warranty information
  • Price: 350 USD
We recommend checking out our discussion threads on the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R, which address similar problems with connecting and setting up Audio Interfaces & Systems Zoom.



User manual for the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R

The user manual for the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

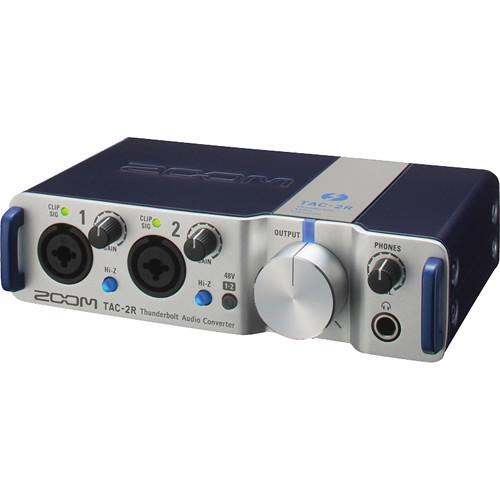

The TAC-2R from Zoom is a two-channel Thunderbolt audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The compact and robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback, and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface.

The unit features dual XLR/TRS combo inputs to the preamplifiers and two balanced 1/4" outputs. Phantom power is available for use with condenser microphones and the interface is bus powered, so no AC adapter is required. The headphone output has a dedicated volume control and a free Mac application is available for setting mix parameters and adding effects such as reverb and echo.
If you own a Zoom audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Zoom  TAC-2R - Thunderbolt Audio Interface ZTAC2RDownload user manual for Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R
(PDF file, 4.6 MB)
Additional parameters of the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R:
Specifications
    Interface Thunderbolt
    Converters Bit Depth
    24-bit
    Sampling Rates
    44.1, 48, 88.2, 96, 176.4 and 192 kHz
    Audio Channels I/O
    2
    Inputs Connectors
    2 x XLR/TRS combo
    Gain
    0 to 60 dB (1 dB steps)
    Input Impedance
    5 kohm
    Hi-Z: 1 Mohm
    Maximum Input Level
    +12 dBu @ 0 dBFS
    Outputs Connectors
    2 x 1/4" TRS
    Output Impedance
    100 ohm
    Maximum Output Level
    +14 dBu @ 0 dBFS
    Headphones Connectors
    1 x 1/4" TRS
    Output Impedance
    30 ohm
    Maximum Output Level
    +8 dBu @ 0 dBFS
    Power
    20 mW + 20 mW (into 32 ohm load)
    MIDI 2 x 5-pin DIN Input/Output
    Phantom Power 48V (global)
    Dynamic Range A/D: 118 dB typical (IHF-A)
    D/A: 120 dB typical (IHF-A)
    Frequency Response 20 Hz to 20 kHz, -1.0 dB @ 44.1 kHz
    20 Hz to 40 kHz, -1.0 dB @ 96 kHz
    20 Hz to 60 kHz, -1.0 dB @ 192 kHz
    SNR EIN: 125 dB(IHF-A) @ 60 dB, 150 ohm input
    Power Requirements Bus powered
    Consumption: 10 W maximum
    Dimensions (WxHxD) 7.0 x 4.5 x 1.8" (176 x 114 x 46 mm)
    Weight 1.6 lb (0.7 kg)
    Packaging Info
    Package Weight 2.35 lb
    Box Dimensions (LxWxH) 12.047 x 6.85 x 3.071"
    The user manual for the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zoom users keep a unique electronic library for Zoom audio interfaces & systemss, where you can use our link to download the user manual for the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R.

    The user manual lists all of the functions of the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zoom service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zoom TAC-2R - Thunderbolt Audio Interface ZTAC2R. User manuals are also available on the Zoom website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
