User manual Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8

Operating instructions and pdf manual for use - Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8 User manual, User manual Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8, Zoom, TAC-8, Thunderbolt, Audio, Interface, 18, x, 20, ZTAC8,

User manual for Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8
  • Manufacturer: Zoom
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Zoom
  • Settings and expert assistance
  • Contact Zoom service
  • Troubleshooting
  • Warranty information
  • Price: 650 USD
We recommend checking out our discussion threads on the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8, which address similar problems with connecting and setting up Audio Interfaces & Systems Zoom.


User manual for the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8

The user manual for the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

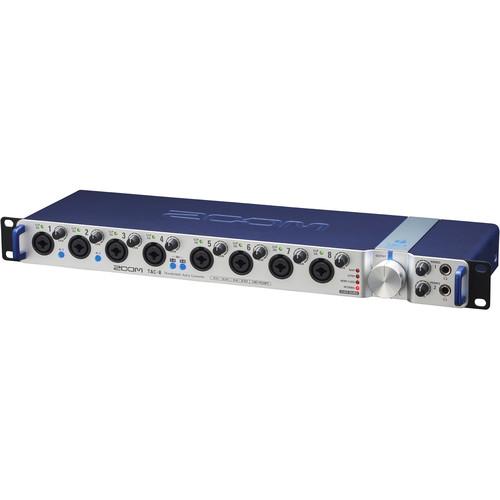

The rack-mountable TAC-8 from Zoom is an 18-input / 20-output Thunderbolt interface designed to form the central hub to any professional or home studio environment. The unit offers 8 analog inputs, 10 analog outputs, and 10 digital inputs and outputs via ADAT optical and S/PDIF connections. Additional I/Os include Word Clock and MIDI. The high-performance Thunderbolt connection provides 8 channels of simultaneous recording and playback with ultra-low latency at 24-bit / 192 kHz.
If you own a Zoom audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8Download user manual for Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8
(PDF file, 2.77 MB)
Additional parameters of the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8:
Specifications
    Analog Inputs Inputs 1-8
    XLR/TRS combo jacks
    (XLR: 2 hot, TRS: TIP hot)
    Input Gain: 0 to 60 dB (1 dB steps)
    Input Impedance: 5 kOhms, 1 MOhm (when Hi-Z on)
    Maximum Input Level: +13 dBu (@ 0 dBFS / XLR), +21 dBu (@ 0 dBFS / TRS)
    Phantom Power: +48 V
    Analog Outputs Master L/R & Outputs 1-8
    1/4" TRS phone jack (balanced)
    Maximum Output Level: +14 dBu (@ 0 dBFS)
    Output Impedance: 150 ohms

    Phones 1/2
    1/4" stereo phone jack
    20 mW + 20 mW (into 32 ohms load)
    Maximum Output Level: +10 dBu (@ 0 dBFS)
    Output impedance: 33 ohms
    Digital In/Out ADAT Optical (Lightpipe)
    RCA (coaxial)
    8 In/8 Out @ 44.1 kHz/48 kHz
    4 In/4 Out @ 88.2 kHz/96 kHz, S/MUX compatible
    2 In/2 Out @ 176.4 kHz/192 kHz, S/MUX4 compatible

    S/PDIF
    Supported Sampling Frequencies: 44.1/48/88.2/96/176.4/192 kHz

    Word Clock
    BNC
    Supported Sampling Frequencies: 44.1/48/88.2/96/176.4/192 kHz
    Output Impedance: 75 ohms
    Frequency Characteristics -1.0 dB: 20 Hz to 60 kHz （@ 192 kHz）
    -1.0 dB: 20 Hz to 40 kHz （@ 96 kHz）
    -1.0 dB: 20 Hz to 20 kHz （@ 44.1 kHz）
    Input Noise Measured EIN: 125 dB (IHF-A), @ 60 dB, 150 ohms input
    Dynamic Range A/D：　120 dB typical （IHF-A）
    D/A：　120 dB typical （IHF-A）
    Channels Recording Channels / Playback Channels

    At 44.1 kHz and 48 kHz Sampling
    Recording: 18 channels (Analog: 8, S/PDIF: 2, ADAT: 8)
    Playback: 20 channels (Analog: 10, S/PDIF: 2, ADAT: 8)
    At 88.2 kHz and 96 kHz Sampling
    Recording: 14 channels (Analog: 8, S/PDIF: 2, ADAT: 4)
    Playback: 16 channels (Analog: 10, S/PDIF: 2, ADAT: 4)
    At 176.4 kHz and 192 kHz Sampling
    Recording: 12 channels (Analog: 8, S/PDIF: 2, ADAT: 2)
    Playback: 14 channels (Analog: 10, S/PDIF: 2, ADAT: 2)
    Sampling Frequencies 192, 176.4, 96, 88.2, 48, 44.1 kHz
    Bit Depth 24-bit
    Interface Thunderbolt
    Supported OS Mac OS X 10.8.5 or later
    MIDI In / Out (5-pin DIN jacks)
    Power AC Adapter: 12 VDC, 2.0 A (AD-19)
    Dimensions (D x W x H) 6.2 x 19.0 x 1.8" / 15.8 x 48.3 x 4.6 cm
    Weight 4.4 lb / 2.0 kg
    Packaging Info
    Package Weight 6.75 lb
    Box Dimensions (LxWxH) 23.0 x 7.5 x 3.9"
    The user manual for the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zoom users keep a unique electronic library for Zoom audio interfaces & systemss, where you can use our link to download the user manual for the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8.

    The user manual lists all of the functions of the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zoom service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zoom TAC-8 Thunderbolt Audio Interface (18 x 20) ZTAC8. User manuals are also available on the Zoom website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
