User manual Zoom UAC-2 USB 3.0 Audio Interface ZUAC2

Operating instructions and pdf manual for use - Zoom UAC-2 USB 3.0 Audio Interface ZUAC2 User manual, User manual Zoom UAC-2 USB 3.0 Audio Interface ZUAC2, Zoom, UAC-2, USB, 3.0, Audio, Interface, ZUAC2, Video


User manual for Zoom UAC-2 USB 3.0 Audio Interface ZUAC2

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Zoom  UAC-2 USB 3.0 Audio Interface ZUAC2
  • Manufacturer: Zoom
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Zoom
  • Settings and expert assistance
  • Contact Zoom service
  • Troubleshooting
  • Warranty information
  • Price: 250 USD

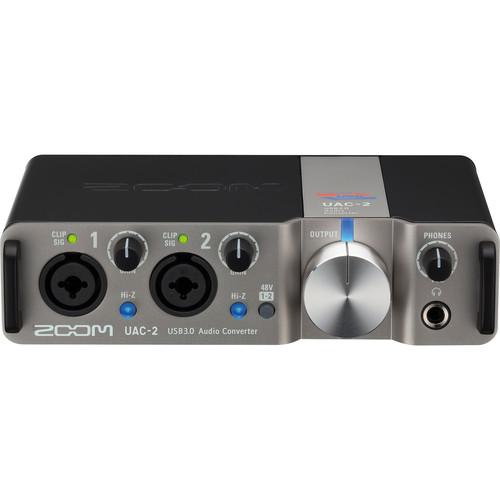

Zoom  UAC-2 USB 3.0 Audio Interface ZUAC2 Zoom  UAC-2 USB 3.0 Audio Interface ZUAC2
Click to enlarge image

We recommend checking out our discussion threads on the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2, which address similar problems with connecting and setting up Audio Interfaces & Systems Zoom.



User manual for the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2

The user manual for the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

The UAC-2 from Zoom is a 2x2 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The compact and robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface.

The unit features two XLR/TRS combo inputs with microphone preamps and two balanced 1/4" outputs. Phantom power is available for use with condenser microphones. Additionally, input 1 and 2 offer a Hi-Z instrument input for guitars and bass. The headphone output has a dedicated volume control and a free Mac application is available for setting mix parameters and adding effects such as reverb and echo. The interface is bus powered, but may be powered by the optional AD-14 power adapter. The UAC-2 ships with a USB 3.0 cable and a Steinberg Cubase LE software license card.
If you own a Zoom audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2:
Specifications
    Connections Input 1/2: 2 x Combo XLR/1/4" / 6.35 mm TRS (XLR: 2 hot, TRS: Tip hot)
    Instrument (Input 1 & 2): 2 x 1/4" / 6.35 mm TRS (disables Input 1 & 2 when in use)
    Output L/R: 2 x 1/4" / 6.35 mm TRS (balanced)
    Phones: 1 x 1/4" / 6.35 mm TRS stereo phone jack
    Input Gain 0 to 60 dB (1 dB steps)
    Input Impedance XLR/TRS: 5 kOhms
    Instrument (Hi-Z On): 1 MOhm
    Maximum Input Level +12 dBu (@ 0 dBFS)
    Phantom Power +48 V
    Maximum Output Level TRS Output: +14 dBu at 0 dBFS
    Phones: +8 dBu at 0 dBFS
    Output Impedance TRS Output: 100 ohms
    Phones: 30 ohms
    Headphone Output Power 20 mW + 20 mW (into 32 ohm load)
    Frequency Response -1.0 dB: 20 Hz to 60 kHz @ 192 kHz setting
    -1.0 dB: 20 Hz to 40 kHz @ 96 kHz setting
    -1.0 dB: 20 Hz to 20 kHz @ 44.1 kHz setting
    Signal to Noise Ratio (SNR) 125 dB(IHF-A) @ 60 dB, 150 ohm input
    Dynamic Range A/D: 118 dB typical (IHF-A)
    D/A: 120 dB typical (IHF-A)
    Channels of I/O Audio Channels Recording: 2
    Audio Channels Playback: 2
    Sampling Frequencies System: 192, 176.4, 96, 88.2, 48, 44.1 kHz
    Bit Depth 24-bit
    Interface USB 3.0 / 2.0
    MIDI In / Out (5 pin DIN jack)
    Power USB Bus Power
    Optional AC Adapter: 5 VDC, 1 A (AD-14)
    Power Consumption: 5 W
    Dimensions (D x W x H) 4.5 x 6.9 x 1.8" / 11.4 x 17.6 x 4.6 cm
    Weight 1.65 lb / 0.75 kg
    Packaging Info
    Package Weight 2.45 lb
    Box Dimensions (LxWxH) 9.4 x 6.8 x 3.2"
    The user manual for the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zoom users keep a unique electronic library for Zoom audio interfaces & systemss, where you can use our link to download the user manual for the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2.

    The user manual lists all of the functions of the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zoom service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zoom UAC-2 USB 3.0 Audio Interface ZUAC2. User manuals are also available on the Zoom website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
