User manual ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter

Operating instructions and pdf manual for use - ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter User manual, User manual ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter, ZyXEL, PLA5205, 600, Mb/s, Powerline, Gigabit, Ethernet, A

User manual for ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

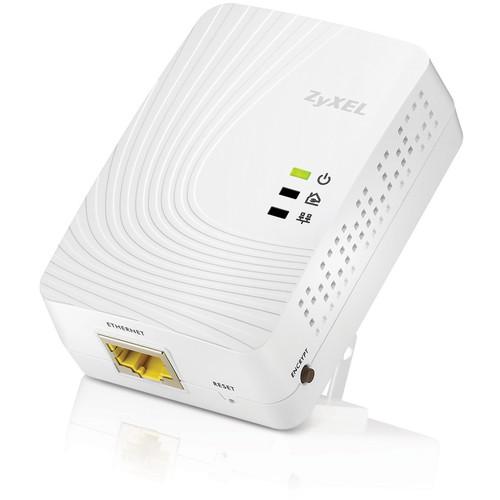

ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter
  • Manufacturer: ZyXEL
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Powerline Networking
  • Safety instructions
  • Startup and operation of the powerline networking
  • Tips for setting up your ZyXEL
  • Settings and expert assistance
  • Contact ZyXEL service
  • Troubleshooting
  • Warranty information
  • Price: 42 USD
We recommend checking out our discussion threads on the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter, which address similar problems with connecting and setting up Powerline Networking ZyXEL.


User manual for the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter

The user manual for the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Powerline Networking.

The PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter from ZyXEL improves networking performance of multiple HD media streaming by more than 20% as compared to the 500 Mb/s powerline technologies. You need to plug a pair of PLA5205 adapters into the electrical outlets and connect network devices, to immediately enjoy HD multimedia streaming, multiplayer gaming, and running other network applications simultaneously in every room.
If you own a ZyXEL powerline networking and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter:
Specifications
    System Specifications
    Standard Data Transfer Rates:
    Transmit/Receive: Up to 600 Mb/s*
    Compliant with HomePlug AV2*, IEEE 1901, and HomePlug AV

    *: The theoretical maximum channel data transfer rate is derived from HomePlug AV2 specifications.
    Access Methods CSMA/CA channel-access schemes
    Range Maximum range up to 984.2' (300.0 m) over powerline
    Power Saving Mode Without Ethernet link or out of network usage in 60 seconds
    Security 128-bit AES encryption
    Quality of Service (QoS) Terms of Service (ToS)
    Supports up to 4-level type QoS
    Frequency Band 2 to 68 MHz
    Dynamic Neighbor Network Support IGMP IGMP v1/v2/v3
    System Requirements Operating System Independent:
    RJ-45 Ethernet
    Utility Software OS Support:
    Microsoft Windows XP/Vista/7/8
    Hardware Specification
    Ethernet Interface 1 x 10/100/1000 Mb/s RJ-45 connector with auto MDI/MDIX support
    LED Indicators Power on/off
    Powerline Network Quality: Green: best, amber: better, red: good
    Ethernet link/activity
    Button Encrypt/Reset button
    Power Rating 100 to 240 VAC, 50/60 Hz
    Power Consumption Full Operation: 4.5 W maximum
    Power Saving Mode: 0.5 W maximum
    Plug Type US Type: 2-pin for US 120 V
    Environmental
    Operating Environment Temperature: 32 to 104°F (0 to 40°C)
    Humidity: 10 to 90% (non-condensing)
    Storage Environment Temperature: -22 to +158°F (-30 to +70°C)
    Humidity: 10 to 95% (non-condensing)
    Standards and Certifications
    Certifications Safety: CE-LVD
    EMC: CE, FCC
    RoHS compliant
    Dimensions (WxHxD) 3.19 x 2.20 x 1.10" (8.10 x 5.58 x 2.79 cm)
    Weight 3.3 oz (94.0 g)
    Packaging Info
    Package Weight 0.7 lb
    Box Dimensions (LxWxH) 6.299 x 5.433 x 2.992"
    The user manual for the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter can be downloaded in .pdf format if it did not come with your new powerline networking, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ZyXEL users keep a unique electronic library for ZyXEL powerline networkings, where you can use our link to download the user manual for the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter.

    The user manual lists all of the functions of the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter, all the basic and advanced features and tells you how to use the powerline networking. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ZyXEL service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ZyXEL PLA5205 600 Mb/s Powerline Gigabit Ethernet Adapter. User manuals are also available on the ZyXEL website under Computers & Solutions - Networking - Powerline Networking.
