User manual ZyXEL USG40 Performance Series Unified Security Gateway USG40

Operating instructions and pdf manual for use - ZyXEL USG40 Performance Series Unified Security Gateway USG40 User manual, User manual ZyXEL USG40 Performance Series Unified Security Gateway USG40, ZyXEL, USG40, Performance, Series, Unified, Securi


User manual for ZyXEL USG40 Performance Series Unified Security Gateway USG40

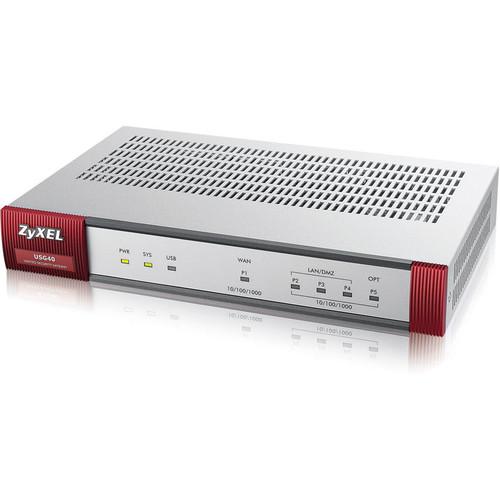

ZyXEL USG40 Performance Series Unified Security Gateway USG40
  • Manufacturer: ZyXEL
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Firewalls & Security Devices
  • Safety instructions
  • Startup and operation of the firewalls & security devices
  • Tips for setting up your ZyXEL
  • Settings and expert assistance
  • Contact ZyXEL service
  • Troubleshooting
  • Warranty information
  • Price: 289 USD
We recommend checking out our discussion threads on the ZyXEL USG40 Performance Series Unified Security Gateway USG40, which address similar problems with connecting and setting up Firewalls & Security Devices ZyXEL.



User manual for the ZyXEL USG40 Performance Series Unified Security Gateway USG40

The user manual for the ZyXEL USG40 Performance Series Unified Security Gateway USG40 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Firewalls & Security Devices.

The USG40 Performance Series Unified Security Gateway from ZyXEL is an all-in-one Next Generation Firewall (NGFW) designed to fulfill the Bring Your Own Device (BYOD) demands, malware protection, application regulation, and budget control in small business environments. The built-in WLAN controller offers instant wireless hotspot capability and future WLAN scalability. Comprehensive UTM features and Application Intelligence technology provides deep, extensive protection, while keeping businesses in control of how Web applications are used. The all-in-one design integrates everything that small businesses need, thus delivering easy, centralized management and low Total Cost of Ownership (TCO).
If you own a ZyXEL firewalls & security devices and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ZyXEL USG40 Performance Series Unified Security Gateway USG40 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ZyXEL USG40 Performance Series Unified Security Gateway USG40:
Specifications
    Hardware
    Ports 3 x LAN/DMZ (RJ-45)
    1 x WAN (RJ-45)
    1 x OPT (RJ-45)
    1 x USB
    1 x Console
    AP Controller Version 1.0
    Managed AP Number Default: 2
    Maximum: 10
    Power Input 12 VDC, 2.0 A maximum
    Power Consumption 14.0 W maximum
    Certifications EMC: FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), and BSMI
    Safety: LVD (EN60950-1), BSMI
    MTBF 414,329.4 hours
    System Capacity and Performance
    SPI Firewall Throughput 400 Mb/s
    VPN Throughput 100 Mb/s
    IDP Throughput 55 Mb/s
    AV Throughput 50 Mb/s
    UTM Throughput (AV and IDP) 50 Mb/s
    Unlimited User Licenses Yes
    TCP Concurrent Sessions 20,000 maximum
    Concurrent IPsec VPN Tunnels 10
    New TCP Session Rate 3,000
    Concurrent SSL VPN Users 7
    SSL VPN User Number 2
    Customizable Zones Yes
    IPv6 Support Yes
    VLAN Interface 8
    Software
    Firewall ICSA-certified firewall (certification in progress)
    Routing and transparent (bridge) modes
    Stateful packet inspection
    User-aware policy enforcement
    SIP/H.323 NAT traversal
    ALG support for customized ports
    Protocol anomaly detection and protection
    Traffic anomaly detection and protection
    Flooding detection and protection
    DoS/DDoS protection
    IPv6 Support IPv6 Ready gold logo (certification in progress)
    Dual stack
    IPv4 tunneling (6rd and 6 to 4 transition tunnel)
    IPv6 addressing
    DNS
    DHCPv6
    Bridge
    VLAN
    PPPoE
    Static routing
    Policy routing
    Session control
    Firewall and ADP
    IPSec VPN
    Intrusion Detection and Prevention (IDP)
    Application intelligence and optimization
    Content filtering
    Anti-virus, anti-malware
    Anti-spam
    IPsec VPN ICSA-certified IPSec VPN (certification in progress)
    Encryption: AES (256-bit), 3DES and DES
    Authentication: SHA-2 (512-bit), SHA-1 and MD5
    Key management: manual key, IKEv1 and IKEv2 with EAP
    Perfect forward secrecy (DH groups) support 1, 2, 5
    IPSec NAT traversal
    Dead peer detection and relay detection
    PKI (X.509) certificate support
    VPN concentrator
    Simple wizard support
    VPN auto-reconnection
    VPN High Availability (HA): Load-balancing and failover
    L2TP over IPSec
    GRE and GRE over IPSec
    NAT over IPSec
    ZyXEL VPN client provisioning
    SSL VPN Throughput Supports Windows and Mac OS X
    Supports full tunnel mode
    Supports 2-step authentication
    Customizable user portal
    Intrusion Detection and Prevention Routing and transparent (bridge) mode
    Signature-based and behavior-based scanning
    Automatic signature updates
    Customizable protection profile
    Customized signatures supported
    Application Intelligence and Optimization Granular control over the most important applications
    Identifies and controls over 3,000 applications and behaviors
    Supports over 15 application categories
    Application bandwidth management
    Supports user authentication
    Real-time statistics and reports
    Antivirus Supports Kaspersky anti-virus signatures
    Identifies and blocks over 650,000 viruses
    Stream-based anti-virus engine
    HTTP, FTP, SMTP, POP3, and IMAP4 protocol support
    Automatic signature updates
    No file size limitation
    Anti-Spam Transparent mail interception via SMTP and POP3 protocols
    Configurable POP3 and SMTP ports
    Sender-based IP reputation filter
    Recurrent Pattern Detection (RPD) technology
    Zero-hour virus outbreak protection
    X-Header support
    Blacklist and whitelist support
    Supports DNSBL checking
    Spam tag support
    Statistics report
    Content Filtering Social media filtering
    Malicious Website filtering
    URL blocking and keyword blocking
    Blacklist and whitelist support
    Blocks java applets, cookies and ActiveX
    Dynamic, cloud-based URL filtering database
    Unlimited user license support
    Customizable warning messages and redirection URL
    Unified Security Policy Unified policy management interface
    Supported UTM features: anti-virus, antispam, IDP, content filtering, application intelligence, firewall (ACL)
    3-Tier Configuration: Object-based, profile based, policy-based
    Policy Criteria: Zone, source, and destination IP address, user, time
    WLAN Management ZyXEL AP Controller (APC) 1.0 compliant
    Client RSSI threshold to prevent sticky clients
    IEEE 802.1x authentication
    Captive portal Web authentication
    Customizable captive portal page
    RADIUS authentication
    Wi-Fi Multimedia (WMM) wireless QoS
    CAPWAP discovery protocol
    Mobile Broadband WAN connection failover via 3G and 4G* USB modems
    Auto fallback when primary WAN recovers

    *4G USB modem support available in future firmware upgrades

    Networking Routing mode, bridge mode, and hybrid mode
    Ethernet and PPPoE
    NAT and PAT
    VLAN tagging (802.1Q)
    Virtual interface (alias interface)
    Policy-based routing (user-aware)
    Policy-based NAT (SNAT)
    Dynamic routing (RIPv1/v2 and OSPF)
    DHCP client/server/relay
    Dynamic DNS support
    WLAN trunk for more than 2 ports
    Per host session limit
    Guaranteed bandwidth
    Maximum bandwidth
    Priority-bandwidth utilization
    Bandwidth limit per user
    Bandwidth limit per IP
    Authentication Local user database
    Microsoft Windows Active Directory integration
    External LDAP/RADIUS user database
    XAUTH, IKEv2 with EAP VPN authentication
    Web-based authentication
    Forced user authentication (transparent authentication)
    IP-MAC address binding
    SSO (Single Sign-On) support
    System Management Role-based administration
    Multiple administrator logins
    Multi-lingual Web GUI (HTTPS and HTTP)
    Command line interface (console, Web console, SSH, and TELNET)
    SNMP v2c (MIB-II)
    System configuration rollback
    Firmware upgrade via FTP, FTP-TLS, and Web GUI
    Dual firmware images
    Logging and Monitoring Comprehensive local logging
    Syslog (to up to 4 servers)
    Email alerts (to up to 2 servers)
    Real-time traffic monitoring
    Built-in daily report
    Advanced reporting with Vantage Report
    VPN, Management and Reporting Managed APs: Add 8 APs
    SecuExtender SSL VPN Client: Add 5 clients
    IPSec VPN Client: For 1/5/10/50 clients
    Vantage Report: For 1/5/25/100 devices
    License Information
    Antivirus Kaspersky: 1-year
    Application Intelligence and IDP 1-year
    Content Filtering 1-year
    Anti-Spam 1-year
    General
    Compatibility Access Point
    NWA5120 Series (Unified Access Point)
    NWA5121-NI
    NWA5121-N
    NWA5123-NI

    NWA5000 Series (Managed Access Point)
    NWA5160N
    NWA5560-N
    NWA5550-N

    NWA3000-N Series (Unified Pro Access Point)
    NWA3160-N
    NWA3560-N
    NWA3550-N
    Functions central management, auto provisioning, and local bridge data forwarding
    Temperature Operating: 32 to 104°F (0 to 40°C)
    Storage: -22 to 158°F (-30 to 70°C)
    Humidity Operating: 10 to 90% (non-condensing)
    Storage: 10 to 90% (non-condensing)
    Dimensions (W x H x D) 8.50 x 1.30 x 5.63" (216.00 x 33.00 x 143.00 mm)
    Weight 1.96 lb (0.89 kg)
    Packaging Info
    Package Weight 3.6 lb
    Box Dimensions (LxWxH) 14.9 x 8.5 x 3.1"
    The user manual for the ZyXEL USG40 Performance Series Unified Security Gateway USG40 can be downloaded in .pdf format if it did not come with your new firewalls & security devices, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ZyXEL users keep a unique electronic library for ZyXEL firewalls & security devicess, where you can use our link to download the user manual for the ZyXEL USG40 Performance Series Unified Security Gateway USG40.

    The user manual lists all of the functions of the ZyXEL USG40 Performance Series Unified Security Gateway USG40, all the basic and advanced features and tells you how to use the firewalls & security devices. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ZyXEL service.
