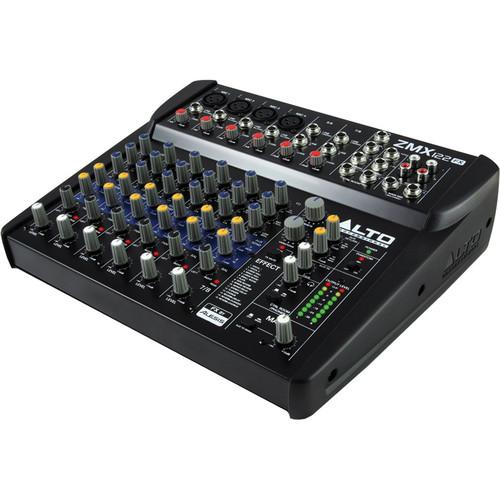

The ZEPHYR ZMX122FX from Alto Professional is a compact, 8-channel audio mixer with 256 built-in digital effects presets, featuring inputs for both microphones and line-level signals such as drum machines and keyboards. Four of the channels feature balanced 1/4" TRS inputs, as well as gold-plated XLR jacks and microphone preamps, and two balanced 1/4" TRS stereo line-level channels are also provided. All six of these channels feature 3-band EQ, Pan, and Level knobs, as well as two Aux Sends. One of the Aux Sends is labeled for external monitors, and the other is dedicated to sending signals to external effects. The two Aux Return inputs, combined with the stereo RCA Aux inputs, make for a total of 12 input channels. The ZMX122FX also features two bus outputs: the Main Outputs and the Control Room outputs. Stereo RCA outputs are also provided.

The effects that are built into the ZEPHYR ZMX112FX are the product of a partnership with Alesis. They feature 16 different effects, and 16 variations of those effects, making a total of 256 presets to choose from. A 1/4" input on the rear of the mixer enables you to attach a separately available footswitch, so you can disable the effects with a tap of the foot. The effects can also be muted with a button on the face of the mixer. All of the knobs are color coded, to make it easier to operate the mixer in dimly lit environments.
If you own a Alto analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Alto ZEPHYR ZMX122FX 8-Channel Mixer with Effects ZMX122FX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Alto ZEPHYR ZMX122FX 8-Channel Mixer with Effects ZMX122FX:
Specifications
Total # Of Inputs 12
Mic/Line Inputs 4x Electronically balanced, discrete XLR inputs
4x Electronically balanced 1/4" TRS inputs
Gain Range Mic inputs (Channels 1-4): 0 to 50 dB
Line inputs (Channels 1-4): 15 to 35 dBu
Line inputs (Channels 5-8): -20 to +20 dBu, 60 dB Ch. Line to Main Mix out
Maximum Voltage Gain Mic inputs / Line inputs (Channels 1-4):
70 dB (mic/line input to main mix output)
80 dB (mic/line input to control room / phones output)
60 dB (mic/line input to aux send)

Line inputs (Channels 5-8):
20 dB (FX return to main mix output)
20 dB (aux input to main mix output)
Stereo Line Inputs 2x 1/4" TRS stereo inputs
AUX Sends 1x Monitor send
1x FX send
AUX Returns 2x 1/4" Aux return
Footswitch Yes, 1/4" input on rear panel (latching-style footswitch not included)
Inserts No
BUS (Group) Outputs Main and Control Room
2 Trk Master I/O 2x 1/4" TRS stereo outputs
ALT I/O 2x 1/4" TRS stereo Control Room outputs
2x RCA stereo outputs
2x RAC stereo inputs
Monitor Outputs 1x 1/4" stereo headphone output
2x 1/4" TRS stereo Control Room outputs
Equalization 3-Band EQ on Channels 1-8
High: ±15 dB @ 12 kHz
Mid: ±15 dB @ 2.5 kHz
Low: ±15 dB @ 80 Hz
Channel Level Control Knobs
Trim/Gain Control Rotary Pot
Phantom Power +48 V Globally Switched
Impedance Mic inputs: 3.9 kΩ
All other inputs: > 10 kΩ
Aux output: 1 kΩ
All other outputs: 120 Ω
Metering 6x Peak LEDs
8-Segment LED stereo master output meter
Effects Reverbs: Hall, Room, Vocal, Plate
Delays: Mono, Stereo (max delay time: 650 ms)
Modulations: Chorus, Flanger, Reverb
Combinations: Reverb + Delay, Reverb + Chorus, Reverb + Flanger
Presets: 256
Controls: 16 x 16-position preset selector, clip LED, mute switch, foot switch
Converters A/D and D/A converters: 24-bit
Internal DSP Resolution DSP Resolution: 24-bit
Crosstalk Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-4, panned hard left or right)
Output Level 0 dBu Unbalanced, 1/4" Jacks
Max out +22 dBu Unbalanced, 1/4" jacks
Noise Bus noise: < -90 dB @ 20 Hz to 22 kHz (Channel and Main Mix levels at 0 dB, others at minimum, DSP muted)
Frequency Response 20 Hz to 22 kHz, +/-1 dB
Dynamic Range Not Specified By Manufacturer
Signal-to-Noise Ratio ≧110 dBu
THD & Noise ≦0.005% at +4 dBu, 1 kHz
Power Supply 18 V, 1500 mA
Power Consumption 27W
Dimensions (W x L x H) 10.08 x 9.84 x 2.8" (256 x 250 x 72 mm)
Weight 5.07 lb (2.3 kg)
Packaging Info
Package Weight 7.0 lb
Box Dimensions (LxWxH) 15.4 x 12.7 x 5.8"
The user manual for the Alto ZEPHYR ZMX122FX 8-Channel Mixer with Effects ZMX122FX can be downloaded in .pdf format if it did not come with your new analog recording mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Alto users keep a unique electronic library for Alto analog recording mixerss, where you can use our link to download the user manual for the Alto ZEPHYR ZMX122FX 8-Channel Mixer with Effects ZMX122FX.

The user manual lists all of the functions of the Alto ZEPHYR ZMX122FX 8-Channel Mixer with Effects ZMX122FX, all the basic and advanced features and tells you how to use the analog recording mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Alto service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Alto ZEPHYR ZMX122FX 8-Channel Mixer with Effects ZMX122FX. User manuals are also available on the Alto website under Pro Audio - Recording - Analog Recording Mixers.
