User manual for the NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV

The user manual for the NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

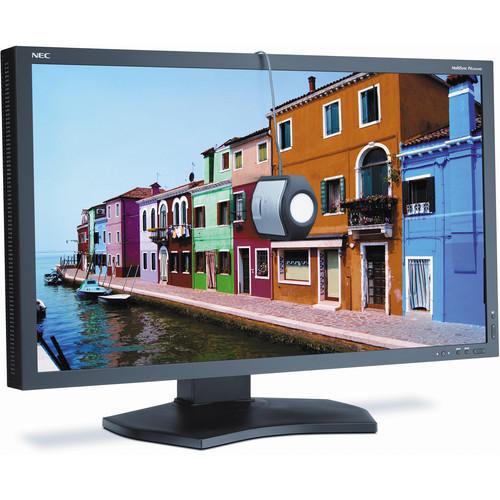

When color accuracy is a priority the PA322UHD-BK-SV 32" Widescreen LED Backlit Color Accurate IPS UHD Monitor with SpectraViewII from NEC has you covered with 99.2% coverage of the Adobe RGB color space and a 14-bit 3D internal programmable lookup table. This enhanced color coverage is backed up by a 3840 x 2160 resolution, 350 cd/m² brightness rating, a 10,000:1 contrast ratio, and a 10 ms response time. This NEC color accurate monitor also comes equipped with a variety of connectors including DisplayPort, DisplayPort OPS, HDMI, and DVI-D inputs making it easy to plug into a variety of computer configurations. Accompanying the input connectors, you can also take advantage of an integrated USB hub allowing you to connect USB compatible peripherals directly to the display.

For enhanced color management, this NEC monitor includes MultiProfiler software. This software allows you to control nearly every aspect of the monitor from adjusting the color output to creating and customizing different custom Picture Mode configurations. You can even configure the display to receive two video signals simultaneously which can be viewed in a picture-in-picture or picture-by-picture format. The integrated USB hub can also be configured using the MultiProfiler software to function as a keyboard, video, mouse, or (KVM) switch.

To further enhance the color accuracy capabilities of this NEC monitor you can use the included SpectraViewII software and custom X-Rite i1 Display Pro-based colorimeter to further tweak the color accuracy settings.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC PA322UHD-BK-SV 32Download user manual for NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV
(PDF file, 5.28 MB)
Additional parameters of the NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV:
Specifications
    Panel Technology IGZO technology IPS type LCD
    Viewable Image Size 31.50" / 80.01 cm
    Aspect Ratio 16:9
    Native Resolution 3840 x 2160
    Pixel Pitch 0.18 mm
    Pixels Per Inch 140 @ native resolution
    Backlight Type W-LED
    PWM Frequency 20 kHz
    Brightness 350 cd/m² (typical)
    Contrast Ratio 10,000:1
    Viewing Angles Horizontal: 176°
    Vertical: 176°
    (88U/88D/88L/88R) @ CR>10
    Response Time 10 ms (typical)
    Color Gamut Adobe RGB Coverage/Size: 99.2% / 101.0%
    NTSC Coverage/Size: 92.4% / 96.5%
    sRGB Coverage/Size: 136.3% / 99.9%
    Lookup Table 14-bit (3D)
    Displayable Colors 1.07 billion out of 4.3 trillion
    Synchronization Range Horizontal (Analog/Digital)
    31.5-133.2 and 236.7 kHz (Digital only)

    Vertical
    24 - 87 Hz, 120 some modes
    Input Connectors 1 x DisplayPort
    1 x DisplayPort OPS
    4 x HDMI
    2 x DVI-D Dual Link

    USB 3.0 hub
    2 x up / 3 x down with DisplaySync Pro
    Power Consumption On: 95 W
    Power Savings Mode: 4.6 W
    VESA Hole Pattern 100 x 100 mm
    200 x 100 mm
    Operating Temperature 41 to 95°F / 5 to 35°C
    Operating Humidity 30 to 80%
    Operating Altitude 16,404 ft / 5,000 m
    Storage Temperature 14 to 140°F / -10 to 60°C
    Storage Humidity 10 to 85%
    Storage Altitude 40,000 ft / 12,192 m
    RoHS Compliance Yes
    Dimensions With Stand: 29.3 x 18.4 x 11.9" / 744.8 x 467.4 x 302.3 mm
    Without Stand: 29.3 x 17.4 x 3.9" / 744.8 x 440.8 x 100.0 mm
    Weight With Stand: 45.2 lb / 20.5 kg
    Without Stand: 31.3 lb / 14.2 kg
    Packaging Info
    Package Weight 60.6 lb
    Box Dimensions (LxWxH) 35.0 x 25.5 x 17.0"
    4K UHD | NEC Display Solutions
    The user manual for the NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV.

    The user manual lists all of the functions of the NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC PA322UHD-BK-SV 32" Widescreen LED PA322UHD-BK-SV. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
