User manual PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL

Operating instructions and pdf manual for use - PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL User manual, User manual PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL, PreSonus, AudioBox, 22VSL, USB, 2.0, Recording, AUDIOB


User manual for PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL
  • Manufacturer: PreSonus
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your PreSonus
  • Settings and expert assistance
  • Contact PreSonus service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL, which address similar problems with connecting and setting up Audio Interfaces & Systems PreSonus.



User manual for the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL

The user manual for the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

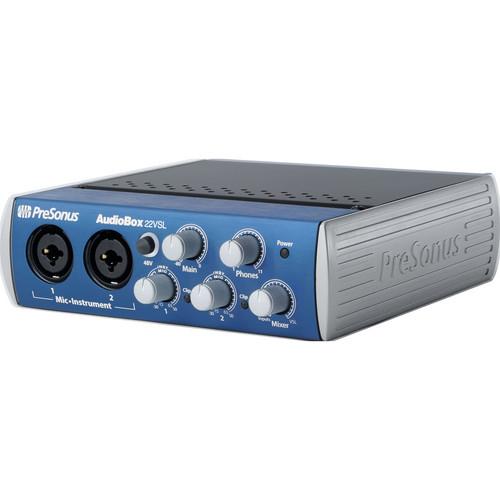

The AudioBox 22VSL from PreSonus is a portable 2 input/2 output USB 2.0 audio and MIDI interface that allows for monitoring with low-latency effects. It features two combo microphone/instrument inputs with Class-A XMAX microphone preamps, and ships with Studio One Artist DAW software.

The compression, limiting, semi-parametric EQ, high-pass filter, reverb, and delay effects are the same as found on the company's StudioLive 16.0.2 mixer. Additionally, the AudioBox Virtual Studio- Live "kernal mode" cuts monitoring latency to under 2 1/2 milliseconds, which is virtually inaudible.

The unit is USB bus-powered and housed in a ruggedly built, metal chassis. Phantom power can be switched globally. Clip lights are provided for both channels
If you own a PreSonus audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSLDownload user manual for PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL
(PDF file, 6.34 MB)
Additional parameters of the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL:
Specifications
    Total # Of Channels 2 x In, 2 x Out
    Mic Preamps 2
    Inserts Virtual Studio Live software
    Direct Inputs 2 x Instrument
    DSP Near zero-latency Fat Channel and Effects (same as StudioLive 16.0.2)
    Phantom Power 48V, global switching
    Max Resolution 24-bit/96 kHz
    Dynamic Range 114 dB
    Controls Trim
    Mains
    Phones
    Mix
    48V
    Connectors 2 x XLR/TRS Microphone/Line Combo Inputs
    2 x 1/4" TRS phone Line Outputs
    2 x 5-pin DIN MIDI I/O
    1 x 1/4" TRS phone Stereo Headphone
    1 x USB Port
    Power USB bus
    Compatibility ASIO, Core Audio, WDM, MME and multi-client drivers
    System Requirements Mac
    Intel Core Duo processor (Intel Core 2 Duo or Intel Core i3 or better recommended)
    OS X 10.8 or later
    2 GB RAM (4 GB or more recommended)
    20 GB hard drive space
    Internal or external 7200 rpm storage drive highly recommended
    Available USB 2.0 port
    DVD-ROM drive
    1024 x 768 minimum monitor resolution
    Internet connection for activation

    PC
    Intel Core Duo or AMD Athlon X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
    Windows 7 SP1 (32-/64-bit), Windows 8 (32-/64-bit)
    2 GB RAM (4 GB or more recommended)
    20 GB hard drive space
    Internal or external 7200 rpm storage drive highly recommended
    Available USB 2.0 port
    DVD-ROM drive
    1024 x 768 minimum monitor resolution
    Internet connection for activation
    Dimensions (WxDxH) 7.5 x 12.5 x 4" (191 x 318 x 102 mm)
    Weight 7 lb (3.2 kg)
    Packaging Info
    Package Weight 3.3 lb
    Box Dimensions (LxWxH) 12.5 x 7.7 x 4.3"
    PreSonus AudioBox VSL Series
    The user manual for the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PreSonus users keep a unique electronic library for PreSonus audio interfaces & systemss, where you can use our link to download the user manual for the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL.

    The user manual lists all of the functions of the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PreSonus service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PreSonus AudioBox 22VSL - USB 2.0 Recording AUDIOBOX 22 VSL. User manuals are also available on the PreSonus website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
