User manual for AEE S71 16MP 4K Wi-Fi Action Camera S71
Overall Rating: 4.0
80% of respondents would recommend this to a friend.
- Manufacturer: AEE
- Basic description and contents of package
- Product classification: Camcorders - Sports & Action Cameras
- Safety instructions
- Startup and operation of the sports & action cameras
- Tips for setting up your AEE
- Settings and expert assistance
- Contact AEE service
- Troubleshooting
- Warranty information
- Price: 239 USD
|
We recommend checking out our discussion threads on the AEE S71 16MP 4K Wi-Fi Action Camera S71,
which address similar problems with connecting and setting up Sports & Action Cameras AEE.
|
User manual for the AEE S71 16MP 4K Wi-Fi Action Camera S71
The user manual for the AEE S71 16MP 4K Wi-Fi Action Camera S71 provides
necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

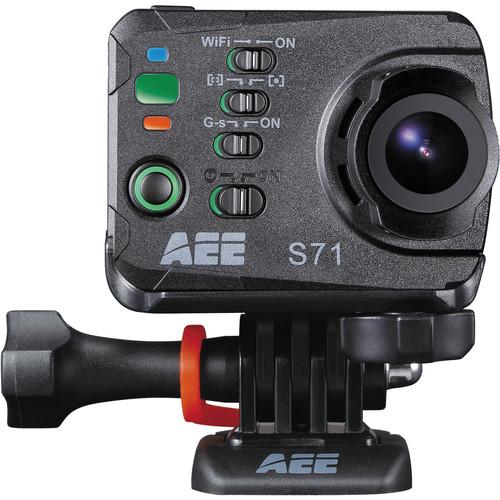

The AEE S71 16MP 4K Wi-Fi Action Camera has a 328 ft Wi-Fi reach that allows you to connect an iOS or Android device and remote control the camera using a free-download app. You can also review and perform basic edits to your recordings with this app and save your changes to an optional microSD card in the camera.
The S71 features a 1/2.3" CMOS sensor and is capable of capturing Ultra HD 4K (3840 x 2160) video at 15 and 12 frames per second, 2.7K at 30 and 24 fps, 1080p at 60/48/30/24 fps, 960p, and 720p HD. It can also capture still photos at 16 megapixels in standard mode, action bursts of 10 frames, and timer delay mode. It's also capable of recording super slow motion video at 720p HD resolution at 120 fps. The built-in lens has an f/2.7 aperture and shoots an expansive view at a 147° wide angle. It allows you to zoom in by up to 10x, especially useful for still photo shots. The camera features a built-in mic and speaker and additionally supports external mic recording via its mini USB port. The S71 includes a detachable 2" TFT color display that mounts onto the front and lets you monitor your videos live.
The camera measures approximately 2" in height and weighs around 2 ounces without the detachable display. It can be used mounted on your person or various gear and objects using the included quick-release, pivot joint, or adhesive mounts for applications in motorsports, biking, skiing, boarding, and other extreme sports. A 32 ft waterproof housing is also included for surfing and underwater use. The housing features two different backsides, one allowing you to attach the TFT display and the other supporting an optional extended battery. A 300+ ft AEE waterproof housing can be purchased separately. A wide variety of over 25 other mounts is also optionally available from AEE.
A 1500mAh lithium-ion battery is included and rechargeable using the supplied USB cable. A remote control is also included for basic functions.
|
If you own a AEE sports & action cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AEE S71 16MP 4K Wi-Fi Action Camera S71 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the AEE S71 16MP 4K Wi-Fi Action Camera S71:
| Sensor | 1x 16 Megapixel 1/2.3" CMOS Sensor | | Maximum Aperture | f/ 2.7 | | Angle of View | 147° | | Zoom | Digital: 10x | | Recording Media | microSD/HC/XC Up To 64 GB Video/Image | | Video Format | High Definition
MPEG4
3840 x 2160p / 15 fps
3840 x 2160p / 12 fps
2704 x 1524p / 30 fps
High Definition
MPEG4
2704 x 1524p / 24 fps
1920 x 1080p / 60 fps
1920 x 1080p / 48 fps
High Definition
MPEG4
1920 x 1080p / 30 fps
1920 x 1080p / 24 fps
1280 x 960p / 60 fps
High Definition
MPEG4
1280 x 960p / 48 fps
1280 x 720p / 120 fps
1280 x 720p / 60 fps | | Aspect Ratio | 16:9
4:3 | | Slow Motion Mode | 120 fps recorded @ 1280 x 720p | | Still Image Resolution | JPEG: 16 Megapixel | | Channels | 2.0-Channel Stereo | | Audio Format | WAV | | Display Type | LCD | | Touchscreen | No | | Screen Size | 2" | | Waterproof Depth Rating | 32.0' / 10.0 m (Waterproof Housing) | | White Balance Modes | Auto | | Built-in Mic | Yes | | Built-in Speaker | Yes | | Wi-Fi | Yes | | Accessory Shoe | None | | Tripod Mount | 1/4" - 20 | | Inputs | 1x Mini-USB | | Outputs | 1x HDMI C (Mini) | | Microphone Input | Yes | | Headphone Jack | No | | Battery | Rechargeable Lithium-Ion Battery Pack, 1500 mAh | | Charging Method | USB | | Dimensions (WxHxD) | 1.7 x 2.3 x 1.4" / 4.3 x 5.8 x 3.6 cm Without display
1.7 x 2.3 x 1.9" / 4.3 x 5.8 x 4.8 cm With display | | Weight | 2 oz / 57 g Without battery and display
4.1 oz / 116 g With battery and display | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.3 x 6.0 x 4.4" | |
The user manual for the AEE S71 16MP 4K Wi-Fi Action Camera S71 can be downloaded in .pdf
format if it did not come with your new sports & action cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other AEE users keep a unique electronic library
for AEE sports & action camerass,
where you can use our link to download the user manual for the AEE S71 16MP 4K Wi-Fi Action Camera S71.
The user manual lists all of the functions of the AEE S71 16MP 4K Wi-Fi Action Camera S71,
all the basic and advanced features and tells you how to use the sports & action cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from AEE service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the AEE S71 16MP 4K Wi-Fi Action Camera S71. User manuals are also
available on the AEE website under Camcorders - Sports & Action Cameras.
Question and answer discussion forum concerning user instructions and resolving problems with the AEE S71 16MP 4K Wi-Fi Action Camera S71
Post new comment to AEE S71 16MP 4K Wi-Fi Action Camera S71
| Subject: compatible mic | | Date: 01.09.2016 22:05:22 | Author: Seneca | | what external mic is compatible with S71 4k | | Reply |
