User manual for the AG Neovo U-17 LCD Monitor (17") U-17

The user manual for the AG Neovo U-17 LCD Monitor (17") U-17 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

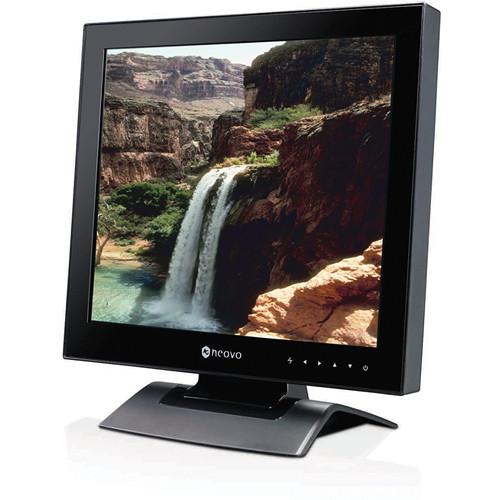

The AG Neovo U-17 LCD Monitor (17”) features a contrast ratio of 1000:1 and a brightness rating of 250 cd/m², and produces high-quality images at a resolution up to 1280 x 1024 (SXGA). A viewing angle of 170°/160° (H/V) ensures that you can view images clearly from any corner of the room or when the display is mounted at a height.

With NeoV optical glass coating on the top, the display screen is protected from scratches, impacts, and physical damage. Constructed from recyclable and eco-friendly materials, the display reduces CO2 emissions by up to 50%. Built-in EcoSwitch reduces the power consumption to zero by turning the monitor off.

Using the side-mount headphone jack, USB port and built-in stereo speakers, you can effortlessly access multimedia applications. Touch sensitive controls allow you to easily and frequently adjust monitor controls without any wear and tear. An intuitive OSD (on-screen-display) with settings lock allows you to select various monitor functions as per requirement.

Featuring standard 100 mm VESA mounting holes, the LCD monitor can be wall-mounted. Using Kensington security socket, you can attach a lock-and-cable apparatus for securing the LCD display.
If you own a AG Neovo surveillance monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AG Neovo U-17 LCD Monitor (17") U-17 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AG Neovo U-17 LCD Monitor (17") U-17:
Panel/Display Type TFT LCD
Panel Size 17.0" (432 mm)
Resolution SXGA 1280 x 1024
Pixel Pitch 0.264 mm
Brightness 250 cd/m2 (Typical)
Contrast Ratio 1000:1 (Typical)
Viewing Angle 170°/160° (Typical)
Display Colors 16.7M
Response Time 3 ms (GTG)z
Frequency H: 24 kHz - 81 kHz
V: 56 Hz - 75 Hz
Input Analogue: 15-Pin D-Sub
Digital: 24-Pin DVI-D
Audio Audio In: 3.5 mm Audio Line-in
Audio Out: 3.5 mm Headphone Jack
Speaker: 1 W x 2
Power AC-DC Adaptor: Internal
Power: AC 100 - 240 V, 50 - 60 Hz
Consumption: <20 W (On), < 1 W (Stand-by), < 1 W (Off), = 0 W (EcoSwitch off)
Glass Thickness: 3.0 mm (0.12")
Reflection Rate: < 1%
Transmission Rate: > 96%
Coating Hardness: > 9H
Plug & Play VESA: DCC 2B, DDC/CI
Operating Temperature 32 to 104ºF (0 to 40ºC)
Operating Humidity 10% ~ 90%
Storage Temperature -4 to 140°F (-20 to 60°C)
Storage Humidity 5% ~ 95%
Mounting VESA FPMPMI: Yes (100 mm)
Tilt 0° ~ +20°
Compliance UL/CUL, CB, FCC, CE, GOST-R, WEEE, Energy Star, RoHS, REACH, Vista/Basic
Dimensions 15.6 x 15.4 x 6.9" (397 x 390 x 174 mm)
Weight 12.5 lb (5.7 kg)
Packaging Info
Package Weight 15.4 lb
Box Dimensions (LxWxH) 18.9 x 18.1 x 5.7"
