User manual for the AJA Corvid 88 8-Channel 3G-SDI I/O Card CRV-88-9-S-R0
The user manual for the AJA Corvid 88 8-Channel 3G-SDI I/O Card CRV-88-9-S-R0 provides
necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

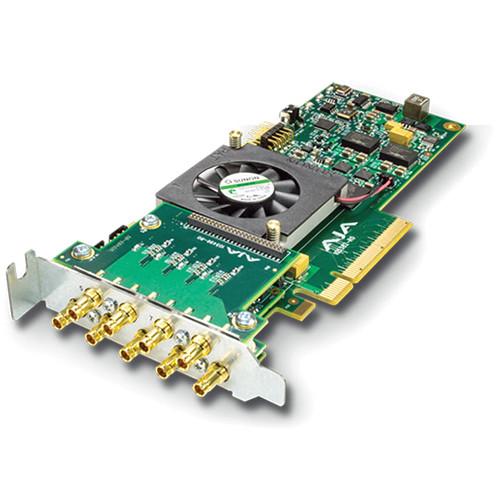

The low profile Corvid 88 8-Channel 3G-SDI I/O Card from AJA is an 8-lane PCIe 2.0 card that delivers multi-channel video and audio input/output. It accepts up to eight SD/HD/3G-SDI signals on DIN 1.0/2.3 connections which can be programmed as either input or output, with each able to support a different video format -- provided all formats use the same clock timing. Connections can also be linked together to support Dual Link HD-SDI for high frame-rate 1080p/2K and Quad Link 3G-SDI for Ultra HD (3840x2160) / DCI 4K (4096x2160) formats.
The Corvid 88 supports 24-bit embedded SDI audio using four independent 16-channel 48 kHz embedded audio engines. For control, an internal RS-422 port is provided which allows control of external devices for frame accurate ingest and layoffs. Other features include four independent Mixer/Keyer widgets and a switchable LTC/reference input for Analog Color Black or HD Tri-Level Sync. A second LTC input is available on an internal header for providing additional reference to the Corvid 88.
Part of AJA's Corvid line of products, the Corvid 88 is designed for integration into solutions offered by third-party developers including Colorfront, Codex, Quantel, Autodesk, and others. It allows AJA Developer Partner applications to access up to eight simultaneous input and output streams on a single PCIe card, making it ideally suited for ingest and playout servers.
If you own a AJA computer hardware and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AJA Corvid 88 8-Channel 3G-SDI I/O Card CRV-88-9-S-R0 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AJA Corvid 88 8-Channel 3G-SDI I/O Card CRV-88-9-S-R0:
Specifications
Interface
8-lane PCIe 2.0
Video Input / Output
8 x SD/HD/3G-SDI, DIN 1.0/2.3 connectors (each switchable to input or output) Note: Channels must use the same master clock (Eg, 29.97 and 59.94)
Single Link SD/HD-SDI Single Link 3G-SDI (for high frame rate 1080p/2K) Dual Link HD-SDI (for high frame rate 1080p/2K) Quad Link 3G-SDI (for high frame rate UHD/4K)
