User manual for the AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG

The user manual for the AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

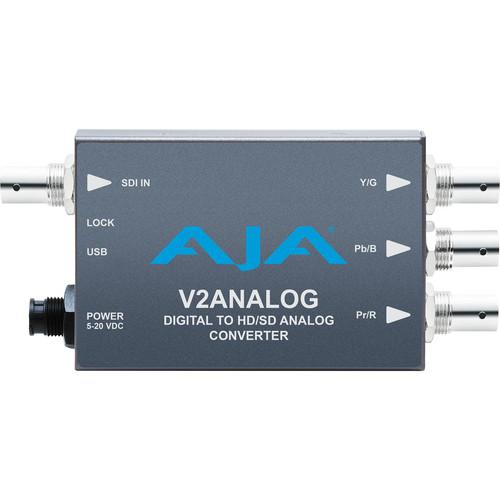

The V2Analog HD/SD-SDI to Analog Mini-Converter from AJA provides SDI digital to component/composite analog conversion at either HD or SD resolutions. It is ideal for integrating analog equipment such as monitors and tape decks into digital workflows. It utilizes a full 10-bit data path to ensure a high-quality conversion. Its low power consumption and compact size, makes it suitable for use on set or in AV installations integrating different signal types.

The V2Analog supports NTSC, PAL, 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, and 1080psf at 23.98/24/25 Hz. The converter accepts incoming digital SDI signals and converts them to analog YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs, and NTSC/PAL or S-Video composite outputs. It is important to note that the V2Analog does not up-convert or down-convert between SD and HD resolution. Only digital to analog signal conversion is performed, therefore an HD-SDI signal will be output as an HD analog signal and won't be compatible with devices that only accept SD analog signals.

Configuration can be set on the unit itself using the DIP switches, or remotely with AJA's free MiniConfig software for Mac or PC over a USB 2.0 connection. The software provides an easy-to-use graphical interface with detailed information about input and output formats as well as all configuration parameters. A universal 5 VDC power supply comes included.

Please note: V2Analog does NOT up-convert or down-convert between SD and HD resolutions. Only digital to analog signal conversion is supported.
If you own a AJA analog & digital converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOGDownload user manual for AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG
(PDF file, 1.13 MB)
Additional parameters of the AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG:
Formats 1080psf 23.98/24/25 Hz
1080i 50/59.94/60 Hz
720p 50/59.94/60 Hz
525i/625i 50/59.94/60 Hz
Inputs 1 x BNC, HD/SD-SDI (SMPTE-259/292/296M)
Output BNC:
HD component YPbPr, RGB (SMPTE-274)
SD component (Betacam, EBU-N10), composite, YC (S-Video)

Note: V2Analog does NOT up-convert or down-convert between SD and HD resolutions.
USB Interface USB 2.0 (for connection to Mac or PC)
Dip Switches Control (Local/Remote)
Component/Composite (SD only)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD only)
Power 5 to 20 VDC, 3 watts
Dimensions 5.1 x 2.4 x 1.0" (13.0 x 6.1 x 2.5 cm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 1.4 lb
Box Dimensions (LxWxH) 7.4 x 5.9 x 3.1"
The user manual for the AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG can be downloaded in .pdf format if it did not come with your new analog & digital converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AJA users keep a unique electronic library for AJA analog & digital converterss, where you can use our link to download the user manual for the AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG.

The user manual lists all of the functions of the AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG, all the basic and advanced features and tells you how to use the analog & digital converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AJA service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AJA V2Analog HD/SD-SDI to Analog Mini-Converter V2ANALOG. User manuals are also available on the AJA website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
