User manual AOC E2050SWD 20" LED Monitor (Black) E2050SWD

Operating instructions and pdf manual for use - AOC E2050SWD 20" LED Monitor (Black) E2050SWD User manual, User manual AOC E2050SWD 20" LED Monitor (Black) E2050SWD, AOC, E2050SWD, 20, LED, Monitor, Black, E2050SWD,


User manual for AOC E2050SWD 20" LED Monitor (Black) E2050SWD

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
AOC E2050SWD 20
  • Manufacturer: AOC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your AOC
  • Settings and expert assistance
  • Contact AOC service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
We recommend checking out our discussion threads on the AOC E2050SWD 20" LED Monitor (Black) E2050SWD, which address similar problems with connecting and setting up Computer Monitors AOC.



User manual for the AOC E2050SWD 20" LED Monitor (Black) E2050SWD

The user manual for the AOC E2050SWD 20" LED Monitor (Black) E2050SWD provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

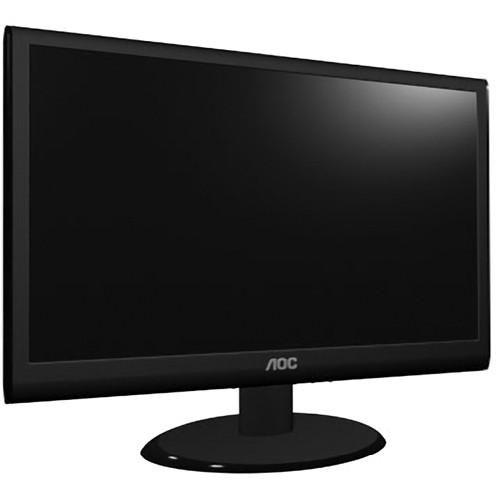

The black E2050SWD 20" LED Monitor from AOC features a slim design with glossy edges and clear styling. The LED monitor is an energy-efficient and eco-friendly display with a DVU-D digital input, D-sub male connector, multi-voltage power supply and a maximum resolution of 1600 x 900. With a 16:9 widescreen display that boasts 16.7 million color support, 20,000,000:1 dynamic contrast ratio and 200 cd/m2 brightness, this monitor offers a pleasant viewing experience. An impressive 5 ms response time ensures that the screen can keep up with your demands, especially when gaming. Other highlights of the display include user-friendly graphical On-Screen Display menu, VESA (100mm) wall mount compliance, Kensington security slot and direct-insert horizontal connectors.
If you own a AOC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AOC E2050SWD 20" LED Monitor (Black) E2050SWD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AOC E2050SWD 20Download user manual for AOC E2050SWD 20" LED Monitor (Black) E2050SWD
(PDF file, 2.54 MB)
Additional parameters of the AOC E2050SWD 20" LED Monitor (Black) E2050SWD:
Specifications
    Panel/Display
    Type TFT Active Matrix LCD display with WLED backlight
    Screen Size 20" (508 mm)
    Viewable Size 19.5" (495 mm)
    Pixel Dot Pitch 0.0109 x 0.0109" (0.276 x 0.276 mm)
    Pixel Frequency 140 MHz
    Display Area 17 x 9.4" (432 x 240 mm)
    Brightness 200 cd/m2
    Contrast Ratio 20,000,000:1
    Aspect Ratio 16:9
    Response Time 5 ms
    Viewing Angle Horizontal: 90° (CR > 10)
    Vertical: 50° (CR > 10)
    Colors Supported 16.7 M
    LED Indicators Full power mode (green or blue)
    Active-Off mode (orange or red)
    Signal
    Scanning Frequency Horizontal: 30 ~ 83 KHz
    Vertical: 50 ~ 76 Hz
    Maximum Resolution 1600 × 900 at 60 Hz
    Recommended Resolution 1600 × 900 at 60 Hz
    Supported Resolutions 640 × 480 at 60 Hz / 67 Hz / 72 Hz / 75 Hz
    720 × 400 at 70 Hz
    800 × 600 at 56 Hz / 60 Hz / 72 Hz / 75 Hz
    832 × 624 at 75 Hz
    1024 × 768 at 60 Hz / 70 Hz / 75 Hz
    1280 × 1024 at 60 Hz / 75 Hz
    1600 × 900 at 60 Hz
    Input/Output Connectors
    Analog Input: 0.7 V p-p (standard), 75 Ω (positive)
    RGB Signal: 15-pin D-sub male
    Digital DVI-D with HDCP
    Controls
    Plug-and-Play VESA DDC2B / CI
    Power Requirements Source: Universal 110 ~ 240 V AC, 50 / 60 Hz
    Consumption: On: < 17 W, Standby: < 0.5 W
    User Controls Auto / Exit, Left / Eco(DCR), Right / 4:3, Menu / Enter, Power
    Languages 16 languages including English, French and Spanish
    Regulations cCSAus, FCC, TUV / S, RoHS, EPA 5.1, EPEAT Silver, Energy Star
    Dimensions (WxHxD) Monitor: 14.2 x 18.8 x 6.8" (361 x 478 x 175 mm)
    Carton: 20.8 x 14.8 x 4.3" (528 x 376 x 108 mm)
    Weight 6.2 lb (2.8 Kg)
    Packaging Info
    Package Weight 7.8 lb
    Box Dimensions (LxWxH) 20.7 x 15.0 x 4.4"
    The user manual for the AOC E2050SWD 20" LED Monitor (Black) E2050SWD can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AOC users keep a unique electronic library for AOC computer monitorss, where you can use our link to download the user manual for the AOC E2050SWD 20" LED Monitor (Black) E2050SWD.

    The user manual lists all of the functions of the AOC E2050SWD 20" LED Monitor (Black) E2050SWD, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AOC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AOC E2050SWD 20" LED Monitor (Black) E2050SWD. User manuals are also available on the AOC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
