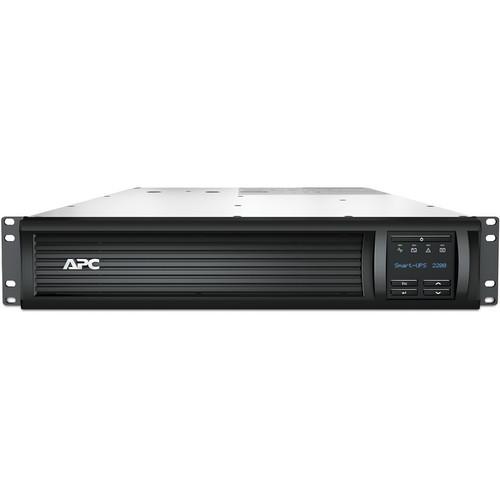

User manual for the APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) SMT2200RMI2U
The user manual for the APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) SMT2200RMI2U provides
necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.
The APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices. With Automatic Voltage Regulation, the unit offers higher application availability by correcting low and high voltage conditions without utilizing the battery. Its intuitive LCD interface offers precise data in multiple languages along with the ability to configure the equipment locally with easy to use navigation keys.
With an intelligent battery management, the Smart-UPS 2200 VA RM 2U LCD 230 V maximizes battery performance, life, and reliability via precision charging. The unit features a Green operating mode that bypasses unused electrical components in good power conditions to attain high operating efficiency without compromising with any protection. It houses a power condition that offers protection for connected loads from surges, spikes, lightning, and other power disturbances. The equipment boasts of temperature-compensated battery charging capability to enhance battery life by controlling the charge voltage as per battery temperature.
Apart from battery failure notification, the Smart-UPS also conducts periodic battery self-test to ensure early detection of a battery that needs to be replaced. Packed with user-replaceable batteries, the equipment increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR). It comes with pure sine wave output on battery that simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Featuring an automatic self-test, the Smart-UPS automatically starts up the connected equipment upon the return of utility power and restarts loads after it is shutdown. With network manageability, the unit provides remote management over the network. It features audible alarms that actively inform you whether the unit is on battery, the battery is low, or if there is an overload condition. The equipment has an energy meter that displays actual kilowatt hours of usage.
Through LED status indicators, the Smart-UPS updates you on the unit and power status. In addition to serial connectivity for managing the UPS via a serial port, the unit has USB connectivity that enables you to manage the UPS via a USB port. Hot-swappable batteries ensure clean, uninterrupted power to protect equipment while batteries are being replaced. The UPS comes with resettable circuit breakers for a quick recovery from overloaded events.
The Smart-UPS X 2200 VA RM 2U LCD 230 V has a single switched outlet group that can be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. High on online efficiency, the UPS reduces utility costs and generates less heat. The SmartSlot customizes UPS capabilities with management cards. As the unit is cold-start capable, it offers temporary battery power when the utility power is out.
With adjustable voltage-transfer points, Smart-UPS widens the input voltage window or tightens the output voltage regulation for maximizing useful battery life. You can also use this equipment for optimal performance with adjustable voltage sensitivity in some specific power environments or generator applications. The unit has been tested and approved to work safely with the connected service provider equipment and within the specified environment. It also delivers battery powered AC through its outlets.
|
If you own a APC ups backup and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) SMT2200RMI2U in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) SMT2200RMI2U:
| Output | Output Power Capacity: 1980 Watts / 2200 VA
Max Configurable Power 1980 Watts / 2200 VA
Nominal Output Voltage: 230V
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Other Output Voltages: 220,240
Topology: Line Interactive
Waveform Type: Sine wave
Output Connections: 8 x IEC 320 C13, 1 x IEC 320 C19, 3 x IEC Jumpers
Delivers battery-powered AC through outlets | | Input | Nominal Input Voltage: 230V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Cord Length: 6.56 feet (2 meters)
Input voltage range for main operations: 160 - 286V
Input voltage adjustable range for mains operation: 151 - 299V
Other Input Voltages 220,240 | | Batteries & Runtime | Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3 hour(s)
Repacement battery: RBC43
RBC Quantity: 1 | | Communications & Management | Interface Port(s): USB
Available SmartSlot Interface Quantity: 1
Control Panel: Multi-function LCD status and control console
Audible Alarm
Alarm when battery: distinctive low
Battery alarm: configurable delays | | Surge Protection and Filtering | Surge Energy Rating: 375 Joules | | Physical | Rack Height: 2U
Color: Black
Dimension: 18.90 x 3.39 x 26.89" / 480 x 86 x 683 mm
Net Weight: 93.08 lb /42.31 kg | | Environmental | Operating Environment: 32 - 104°F / 0 - 40°C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-10000' / 0-3000 m
Storage Temperature: 5 - 113°F / -15 to 45°C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-50000' / 0-15000m
Audible noise at 1 m from surface of unit: 55 BA
Online Thermal Dissipation: 215 BTU/hr | | Conformance | Regulatory Approvals: C-tick,CE,EN 60950,EN/IEC 62040-1-1,EN/IEC 62040-2,GOST,GS Mark,IRAM,VDE,WEEE
Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery
Environmental Compliance: RoHS 7b Exemption,REACH: Contains No SVHCs | | Package Weight | 113.0 lb | | Box Dimensions (LxWxH) | 38.5 x 23.5 x 10.0" | |
The user manual for the APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) SMT2200RMI2U can be downloaded in .pdf
format if it did not come with your new ups backup, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other APC users keep a unique electronic library
for APC ups backups,
where you can use our link to download the user manual for the APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) SMT2200RMI2U.
The user manual lists all of the functions of the APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) SMT2200RMI2U,
all the basic and advanced features and tells you how to use the ups backup.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from APC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the APC Smart-UPS 2200VA LCD Rack Mount 2U (230 V) SMT2200RMI2U. User manuals are also
available on the APC website under Computers & Solutions - Power - UPS Backup.
