User manual APC Smart-UPS 750VA LCD 120V SMT750US

Operating instructions and pdf manual for use - APC Smart-UPS 750VA LCD 120V SMT750US User manual, User manual APC Smart-UPS 750VA LCD 120V SMT750US, APC, Smart-UPS, 750VA, LCD, 120V, SMT750US, Video


User manual for APC Smart-UPS 750VA LCD 120V SMT750US

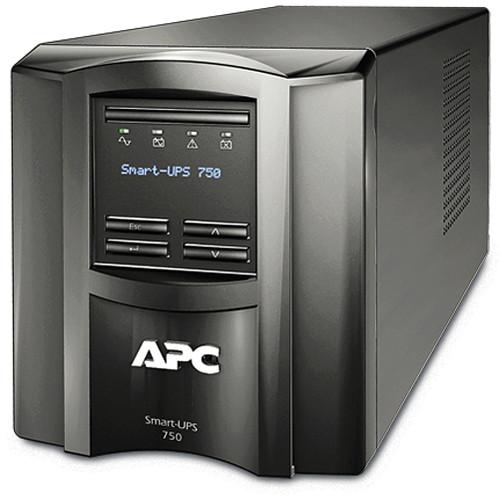

APC  Smart-UPS 750VA LCD 120V SMT750US
  • Manufacturer: APC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Power - UPS Backup
  • Safety instructions
  • Startup and operation of the ups backup
  • Tips for setting up your APC
  • Settings and expert assistance
  • Contact APC service
  • Troubleshooting
  • Warranty information
  • Price: 346 USD
We recommend checking out our discussion threads on the APC Smart-UPS 750VA LCD 120V SMT750US, which address similar problems with connecting and setting up UPS Backup APC.



User manual for the APC Smart-UPS 750VA LCD 120V SMT750US

The user manual for the APC Smart-UPS 750VA LCD 120V SMT750US provides necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

The Smart-UPS 750VA LCD 120V from APC provides battery backup power so you can work through medium length power outages. It safeguards your equipment against damaging surges and spikes that travel along utility and data lines. The Smart-UPS also features automatic voltage regulation (AVR), which instantly adjusts high and low voltages to safe levels so you can work indefinitely during brownouts and over voltages.
If you own a APC ups backup and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the APC Smart-UPS 750VA LCD 120V SMT750US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the APC Smart-UPS 750VA LCD 120V SMT750US:
Output
Output Power Capacity 500 W/750 VA
Max Configurable Power 500 W/0 VA
Nominal Output Voltage 120 V
Output Voltage Distortion Less than 5%
Output Frequency (Sync to Mains) 50/60 Hz +/-3 Hz
Topology Line interactive
Waveform Type Sine wave
Output Connections (6) NEMA 5-15R
Input
Nominal Input Voltage 120 V
Input Frequency 50/60 Hz +/-3 Hz (auto sensing)
Input Connections NEMA 5-15P
Cord Length 6' (1.83 m)
Input Voltage Range 82 to 144 V
Input Voltage Adjustable Range 75 to 154 V
Batteries and Runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte (leak-proof)
Typical Recharge Time 3 hours
Replacement Battery RBC48
RBC Quantity 1
Communications
Interface Ports Smart-Slot
Available SmartSlot Interface 1
Control Panel Multi-function LCD status and control console
Audible Alarm Alarm When on Battery : Distinctive low battery alarm (configurable delays)
Emergency Power Off Optional
Surge Protection and Filtering
Surge Energy Rating 540 J
Filtering Full Time Multi-Pole Noise Filtering : 0.3% IEEE surge let-through
Zero Clamping Response Time : Meets UL 1449
Environmental
Operating Environment 32 to 104°F (0 to 40°C)
Operating Relative Humidity 0 to 95%
Operating Elevation 0 to 9842.5' (0 to 3000 m)
Storage Temperature 5 to 113°F (-15 to 45°C)
Storage Relative Humidity 0 to 95%
Storage Elevation 0 to 49212.5' (0 to 15000 m)
Audible Noise At 3.2' (1 m) from Surface of Unit: 40 dBA
Online Thermal Dissipation 90 BTU/hour
Other Specifications
Efficiency Energy Efficiency:
25% Load: 94.1% efficiency
50% Load: 96.7% efficiency
75% Load: 97.5% efficiency
100% Load: 97.9% efficiency
Regulatory
Regulatory Approvals ENERGY STAR (USA), UL 1778
Compliance and Standards
Compliance RoHS
REACH Contains no SVHCs
Physical
Dimensions (W x H x D) 5.4 x 6.3 x 14.2" (138 x 161 x 363 mm)

Maximum dimensions.

Weight 29 lb (13.18 kg)
Packaging Info
Package Weight 31.0 lb
Box Dimensions (LxWxH) 19.5 x 12.0 x 11.0"
The user manual for the APC Smart-UPS 750VA LCD 120V SMT750US can be downloaded in .pdf format if it did not come with your new ups backup, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other APC users keep a unique electronic library for APC ups backups, where you can use our link to download the user manual for the APC Smart-UPS 750VA LCD 120V SMT750US.

The user manual lists all of the functions of the APC Smart-UPS 750VA LCD 120V SMT750US, all the basic and advanced features and tells you how to use the ups backup. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from APC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the APC Smart-UPS 750VA LCD 120V SMT750US. User manuals are also available on the APC website under Computers & Solutions - Power - UPS Backup.
