User manual ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K
Operating instructions and pdf manual for use - ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K User manual, User manual ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K, ASUS, A68HM-K, AMD, Socket, FM2, mATX, Motherboard, A68HM-K,
User manual for ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K
We recommend checking out our discussion threads on the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K,
which address similar problems with connecting and setting up Motherboards ASUS.
User manual for the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K
The user manual for the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

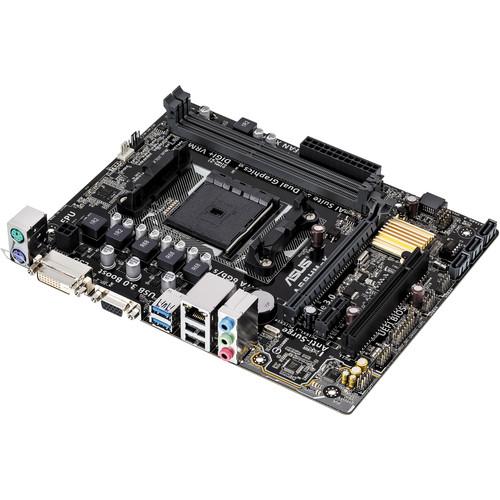

The A68HM-K AMD Socket FM2+ Micro ATX Motherboard from ASUS is designed to fit into standard-size mATX cases. Compatible with 32 and 64-bit versions of Windows 8.1, 8, 7, and XP, the motherboard supports AMD Socket FM2+ Athlon/A- series processors and delivers power and speed for Internet-browsing, gaming and multimedia, CAD software, and home servers. Combined with ASUS UEFI (Unified Extensible Firmware Interface), this feature enables DDR4 memory frequencies and helps lower latencies and enhance stability while overclocking. The motherboard also features USB 3.0 boost, UEFI BIOS, optimal cooling, ASUS Q-Design, AI Suite 3, and Push Notice.
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K:
CPU
AMD Socket FM2+ Athlon/A- Series processors Supports CPU up to 4 cores Supports AMD Turbo Core 3.0 technology
Chipset
AMD A68H FCH (Bolton D2H)
Memory
2 x DIMM, Maximum 32 GB DDR3 2400(O.C.)/2133(O.C.)/1866(O.C.)/1600(O.C.)/1333(O.C.) MHz Non-ECC, Un-buffered Memory Dual channel memory architecture Support AMD Memory Profile (AMP) memory
Note: The maximum 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market Hyper DIMM support is subject to the physical characteristics of individual CPUs Due to OS limitations, when installing total memory of 4 GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard
Graphics
Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU Multi-VGA Output Support: HDMI/DVI/RGB ports - Supports DVI with maximum resolution 2560 x 1600 at 60 Hz - Supports RGB with maximum resolution 1920 x 1600 at 60 Hz Maximum shared memory of 2048 MB AMD Dual Graphics technology support *
Note:*Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 * 1 x PCIe 2.0 x1 1 x PCI
Note:*Only FM2+ Processors can support PCIe3.0
Storage
AMD A68H FCH (Bolton D2H) Chipset: 4 x SATA 6 Gb/s ports, gray Support RAID 0, 1, 10, JBOD
LAN
Realtek 8111GR 1 x Gigabit LAN controller
Audio
Realtek ALC887-VD 8-Channel High Definition Audio CODEC * - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature: - LED-lit audio shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Note:Use a chassis with HD audio module in the front panel to support an 8-channel audio output
USB Ports
AMD A68H FCH (Bolton D2H) Chipset: 6 x USB 2.0/1.1 ports (2 at back panel, 4 at mid-board) AMD A68H FCH (Bolton D2H) Chipset: 2 x USB 3.0 ports (2 at mid-board)
Special Features
ASUS 5X Protection: - ASUS DIGI+ VRM - 3 + 2 Phase digital power design - ASUS Enhanced DRAM overcurrent protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU: - EPU ASUS Exclusive Features: - AI Suite 3 - Ai Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution: - Stylish fanless design heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Push Notice ASUS Q-Design: - ASUS Q-Slot
Back I/O Ports
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x HDMI 1 x LAN (RJ-45) port 2 x USB 3.0 2 x USB 2.0 3 x Audio jacks
Internal I/O Ports
2 x USB 2.0 connector support additional 4 USB 2.0 ports 1 x TPM connector 1 x COM port connector 4 x SATA 6 Gb/s connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x S/PDIF out header 1 x 24-pin EATX Power connector 1 x 4-pin ATX 12 V Power connector 1 x Front panel audio connector (AAFP) 1 x Internal speaker connector 1 x System panel
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
Support Disc
Drivers ASUS utilities ASUS update Anti-virus software (OEM version)
Operating System Support
Windows 8.1, 32/64-bit Windows 8, 32/64-bit Windows 7, 32/64-bit Windows XP, 32-bit
Form Factor
mATX
Dimensions
8.9 x 7.0" (22.6 x 18.0 cm)
The user manual for the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K can be downloaded in .pdf
format if it did not come with your new motherboards, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ASUS users keep a unique electronic library
for ASUS motherboardss,
where you can use our link to download the user manual for the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K.
The user manual lists all of the functions of the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K,
all the basic and advanced features and tells you how to use the motherboards.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ASUS service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ASUS A68HM-K AMD Socket FM2 mATX Motherboard A68HM-K. User manuals are also
available on the ASUS website under Computers & Solutions - Computer Components - Motherboards.
