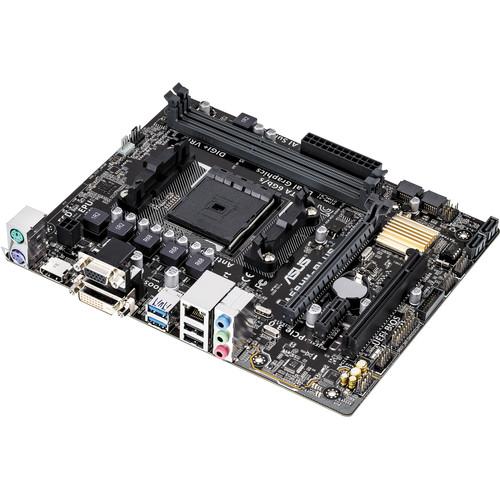

The A68HM-PLUS AMD Socket FM2+ Micro ATX Motherboard from ASUS is designed to fit into standard-size mATX cases. Compatible with 32 and 64-bit versions of Windows 8.1, 8, 7, and XP, the motherboard supports AMD Socket FM2+ Athlon/A- series processors and delivers power and speed for Internet-browsing, gaming and multimedia, CAD software, and home servers. Combined with ASUS UEFI (Unified Extensible Firmware Interface), this feature enables DDR4 memory frequencies and helps lower latencies and enhance stability while overclocking. The motherboard also features USB 3.0 boost, UEFI BIOS, optimal cooling, ASUS Q-Design, AI Suite 3, and Push Notice.
