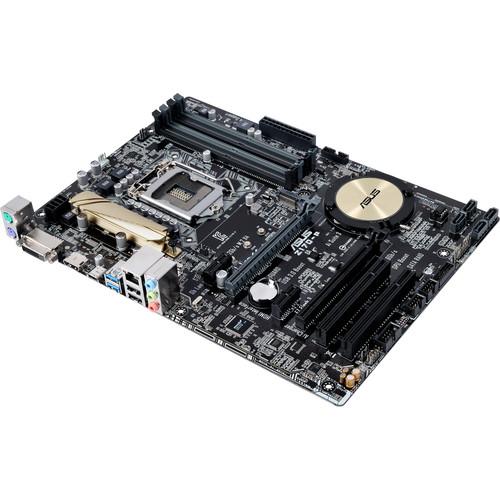

The ASUS Z170-P ATX Motherboard features a Z170 chipset and an LGA1151 socket to support Intel's 6th-genertation Skylake processors. This socket can handle an Intel Core i7, Core i5, Core i3, Pentium, or Celeron processor. With an Intel processor with integrated graphics installed, this motherboard delivers smooth and detailed visuals to your monitors through its DVI and HDMI ports. It also provides an M.2 slot that has a data bandwidth of 32 Gb/s. For connecting with external peripherals, it comes equipped with two USB 3.0 and two USB 2.0 ports as well as a USB type-C port, which features a smaller reversible design than a type-A.
The Z170-P motherboard has four DDR4 DIMM slots that can support up to 64MB of RAM. When more graphics power is needed, this ATX motherboard is outfitted with two PCI Express x16 slots for supporting dedicated graphics cards in an AMD CrossFireX configuration. In addition, there are two PCIe 3.0 x1 slots and two PCI slots. To complete the multimedia experience, this motherboard comes built with Realtek ALC887 that offers immersive sounds through the three audio jacks. It also has a total of four SATA III 6 Gb/s ports along with a PS/2 keyboard port, PS/2 mouse port, and a single Realtek RTL8111H Gigabit LAN jack.
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS Z170-P ATX Motherboard Z170-P in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ASUS Z170-P ATX Motherboard Z170-P:
Integrated Intel HD Graphics supported Supports HDMI with max. resolution of 4096 x 2160 @ 24 Hz, 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution of 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 1 x PCIe 3.0/2.0 x16 (max at x4 mode, black) 2 x PCIe 3.0/2.0 x1 2 x PCI
Storage
Intel Z170 chipset 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices supported (both SATA & PCIE mode) 4 x SATA 6 Gb/s ports, gray Supports Raid 0, 1, 5, 10 Support Intel Smart Response Technology
LAN
Realtek RTL8111H controller
Audio
Realtek ALC887 8-Channel high-definition audio codec Supports jack-detection and front panel jack retasking
USB
Intel Z170 chipset 1 x USB 5 Gb/s port at back panel (type-C, reversible, provides 3 A of power output) 6 x USB 3.0/2.0 (2 x USB ports at back panel, type-A, 4 x headers at mid-board) 6 x USB 2.0/1.1 (2 x USB ports at back panel, type-A, 4 x headers at mid-board)
Supported Features
ASUS 5X Protection II: - ASUS LANGuard - 2.5 X higher surge tolerance - ASUS Overvoltage Protection - circuit-protecting power design - ASUS DIGI+ VRM - 7 phase digital power design - ASUS DRAM Overcurrent Protection - prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3 X corrosion-resistance for greater durability ASUS EPU ASUS Exclusive Features: - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - Low EMI Solution - USB 3.0 Boost - Disk Unlocker - Mobo Connect - PC Cleaner ASUS Quiet Thermal Solution: - Fanless design heat-sink solution & MOS heatsink - ASUS Fan Xpert 3 ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM Media Streamer Audio - LED-illuminated Design: The audio trace path is illuminated with an LED - Audio Shielding: Ensures analog/digital separation and reduces multi-lateral interference - Dedicated Audio PCB Layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Japanese-made Audio Capacitors: Provide warm, natural, and immersive sound with clarity and fidelity
Operating Systems Supported
Windows 10 64-bit Windows 8.1 64-bit Windows 7 32/64-bit
Back I/O Ports
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ-45) 1 x USB 5 Gb/s port type-C (provides 3 A of power output) 2 x USB 3.0 (blue) type-A 2 x USB 2.0 3 x Audio jacks
Internal I/O Ports
2 x USB 3.0 connectors support additional 4 x USB 3.0 ports (19-pin) 2 x USB 2.0 connectors support additional 4 x USB 2.0 ports 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x COM connector 4 x SATA 6 Gb/s connectors 1 x CPU fan connector (1 x 4-pin) 2 x Chassis fan connectors (2 x 4-pin) 1 x S/PDIF out header 1 x 24-pin EATX power connector 1 x 8-pin ATX 12V power connector 1 x Front panel audio connector (AAFP) 1 x System panel 1 x Clear CMOS jumper
BIOS
128 Mb Flash ROM UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
