User manual for the ASUS Z170-Premium ATX Motherboard Z170-PREMIUM
The user manual for the ASUS Z170-Premium ATX Motherboard Z170-PREMIUM provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

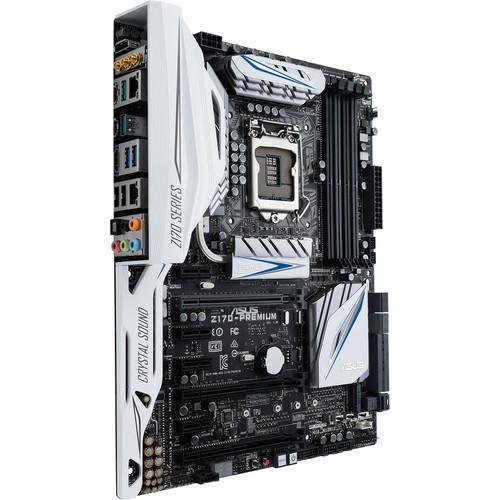

The ASUS Z170-Premium ATX Motherboard lets you build a high-end PC system that supports a variety of technologies. It comes with a Z170 chipset as well as the LGA1151 socket for supporting Intel's 6th-generation of Skylake processors. You may populate the four DIMM slots with up to 64GB of DDR4 memory and overclock these memory chips up to 4000 MHz using the ASUS T-Topology engine. In addition to the motherboard, ASUS includes an M.2 to U.2 adapter, a PCI Express x4 add-in M.2 card, an NFC Express 2 base, a wireless QI charger, and a 3x3 dual-band antenna Wi-Fi module to offer you a flexible system build.
ASUS has equipped this motherboard with four SATA III 6 Gb/s ports as well as two 10 Gb/s SATA Express ports for connecting with hard drives and optical drives. This motherboard also supports PCIe-based storage drives by offering a U.2 port and an M.2 slot. Building a computer with PCIe-based drives gives you nearly instant access to your data at a rate of 32 Gb/s. There's also a low-profile PCIe card that occupies the motherboard's PCIe x4 slot to provide you with a second M.2 slot. If you need another U.2 port, the included M.2 to U.2 adapter converts an M.2 slot.
This Z170-Premium motherboard comes outfitted with three PCIe 3.0 x16 slots so you can install dedicated graphics cards linked via SLI or CrossFireX. Using integrated Intel HD graphics, it delivers 4K visuals through the DisplayPort and HDMI ports. Four PCI x1 slots are also available to expand the motherboard's capabilities. To complete the multimedia experience, Realtek ALC1150 with Crystal Sound 3 technology immerses you in 8-channel sounds using your speakers or headset.
ASUS offers many connectivity perks that are not normally available on typical motherboards such as dual LAN controllers along with an 802.11ac Wi-Fi module with Bluetooth 4.0. To connect with external peripherals, this motherboard has two USB 2.0 ports and two USB 3.0 ports. For quicker access to external storage drives, it also comes with three 10 Gb/s USB 3.1 ports as well as a single USB Type-C port that utilizes Thunderbolt 3 technology, which delivers data at a rate of 40 Gb/s. Other notable features are the NFC Express 2 base and wireless charger for controlling your PC or refilling a smartphone's battery.
|
If you own a ASUS motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ASUS Z170-Premium ATX Motherboard Z170-PREMIUM in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the ASUS Z170-Premium ATX Motherboard Z170-PREMIUM:
| Processor Supported | Intel Socket 1151 for 6th-generation Core i7, Core i5, Core i3, Pentium, Celeron processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 | | Chipset | Intel Z170 | | Form Factor | ATX | | Memory | 64 GB max
4 x DIMM DDR4 4000 (O.C.), 3866 (O.C.), 3800 (O.C.), 3733 (O.C.), 3600 (O.C.), 3466 (O.C.), 3400 (O.C.), 3333 (O.C.), 3300 (O.C.), 3200 (O.C.), 3000 (O.C.), 2800 (O.C.), 2666 (O.C.), 2400 (O.C.), 2133 (O.C.) MHz Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) | | Graphics | Integrated Graphics Processor
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI 2.0 with max. resolution of 4096 x 2160 @ 60/24 Hz
- Supports DisplayPort 1.2 with max. resolution of 4096 x 2304 @ 60/24 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 2 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays | | Multi-GPU Support | Supports NVIDIA Quad-GPU/2-Way SLI technology
Supports AMD Quad-GPU/3-Way CrossFireX technology | | Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe x1 | | Storage | Intel Z170 chipset
2 x SATA Express ports, compatible with 4 x SATA 6 Gb/s ports
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices supported (both SATA & PCIE mode)
6 x SATA 6 Gb/s ports (gray, four from SATA Express)
Supports Raid 0, 1, 5, 10
Intel Rapid Storage Technology supported
1 x U.2 port
Support Intel Smart Response Technology
ASMedia SATA 6 Gb/s controller
2 x SATA 6 Gb/s ports, black | | LAN | Intel I219V Gigabit LAN controller
Intel I211-AT Gigabit LAN controller
Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance | | Wireless | Wi-Fi 802.11a/b/g/n/ac
Supports dual-band frequency 2.4/5 GHz
Supports ASUS Wi-Fi Go Utility
Up to 1300 Mb/s transfer speed
Bluetooth v4.0 | | Audio | Realtek ALC1150 8-Channel high-definition audio codec featuring Crystal Sound 3
Supports Multi-streaming, Front Panel MIC Jack-retasking
112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in) | | USB | Intel Z170 chipset
6 x USB 3.0/2.0 (2 x USB ports at back panel [blue, Type-A], 4 x headers at mid-board)
6 x USB 2.0/1.1 (2 x USB ports at back panel [black, Type-A], 4 x headers at mid-board)
Intel Thunderbolt 3 controller—supports ASUS USB 3.1 Boost and 36 W charging
1 x USB 3.1/3.0/2.0 port @ back panel (teal blue, Type-A)
1 x USB 3.1/3.0/2.0 port @ back panel (Type-C)
ASMedia USB 3.1 controllers—support ASUS USB 3.1 Boost and 3 A of power
1 x USB 3.1/3.0/2.0 port @ back panel (teal blue, Type-A)
1 x USB 3.1/3.0/2.0 port @ back panel (Type-C) | | Operating Systems Supported | Windows 10 64-bit
Windows 8.1 64-bit
Windows 7 | | Back I/O Ports | 1 x DisplayPort
1 x HDMI
2 x LAN (RJ-45)
2 x USB 3.1 (teal blue) Type-A
2 x USB 3.1 Type-C
2 x USB 3.0 (blue)
2 x USB 2.0 (black, one supports Key Express, one supports USB BIOS Flashback)
1 x Optical S/PDIF out
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11a/b/g/n/ac and Bluetooth v4.0)
1 x 8-channel Audio I/O panel | | Internal I/O Ports | 1 x U.2 port
1 x AAFP connector
2 x USB 3.0 connectors support additional 4 USB 3.0 ports
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
2 x SATA Express connectors
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x TPM header
4 x SATA 6 Gb/s connectors
1 x CPU Fan connector (4-pin)
1 x CPU OPT Fan connector (4-pin)
4 x Chassis Fan connectors (4-pin)
1 x S/PDIF out header
1 x Thunderbolt header
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x EZ XMP switch
1 x System panel (Q-Connector)
1 x 5-pin EXT_FAN (Extension Fan) connector
1 x DRCT header
1 x MemOK! button
1 x Thermal sensor connector
1 x TPU switch
1 x EPU switch
1 x Power-on button
1 x Reset button
1 x Clear CMOS button
1 x USB BIOS Flashback button
1 x Water Pump header (4-pin)
1 x 14-1 pin TPM connector | | BIOS | 128 Mb Flash ROM
UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information | | Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE | | Compliance | 802.3az Energy Efficient Ethernet (EEE) appliance | | Dimensions | 12.0 x 9.6" / 30.5 x 24.4 cm | | Package Weight | 7.15 lb | | Box Dimensions (LxWxH) | 14.6 x 12.3 x 4.4" | |
The user manual for the ASUS Z170-Premium ATX Motherboard Z170-PREMIUM can be downloaded in .pdf
format if it did not come with your new motherboards, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ASUS users keep a unique electronic library
for ASUS motherboardss,
where you can use our link to download the user manual for the ASUS Z170-Premium ATX Motherboard Z170-PREMIUM.
The user manual lists all of the functions of the ASUS Z170-Premium ATX Motherboard Z170-PREMIUM,
all the basic and advanced features and tells you how to use the motherboards.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ASUS service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ASUS Z170-Premium ATX Motherboard Z170-PREMIUM. User manuals are also
available on the ASUS website under Computers & Solutions - Computer Components - Motherboards.
