User manual for the Atlas Sound Atlas Sound AA100PHD 4-Input 100W BGM Mixer AA100PHD
The user manual for the Atlas Sound Atlas Sound AA100PHD 4-Input 100W BGM Mixer AA100PHD provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Mixer/Amplifiers.

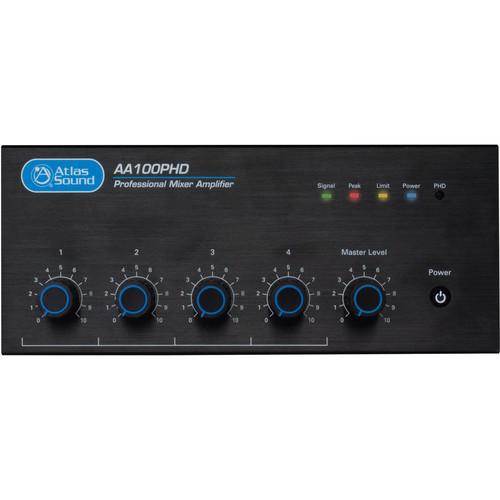

Powering 100W into 25V, 70.7V, or 4 ohms systems, the AA100PHD from Atlas Sound is a 4-input mixer amplifier designed for distributed-business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which music-on-hold is a must.
Featuring one microphone/line input, two stereo-summing line inputs, and one input switchable between stereo-summing and microphone/line—as well as a variety of connection possibilities via the rear panel—the AA100PHD allows you to group inputs together for the purpose of muting/attenuating them by any signal affecting channel one. A rear-mounted DIP switch affords you more muting options, and a preamp out/power amp-in is useful for external processing, should you require it. Finally, a remote input selector port comes standard on the back of the mixer, allowing you to control the unit with Atlas Sound accessory items (sold separately).
If you own a mixer/amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Atlas Sound Atlas Sound AA100PHD 4-Input 100W BGM Mixer AA100PHD in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Atlas Sound Atlas Sound AA100PHD 4-Input 100W BGM Mixer AA100PHD:
Specifications
Frequency Response ± 3dB
80 Hz to 15 kHz
THD & Noise
1% or less @ 1 kHz, rated output
Input Sensitivity and Impedance
Input 1 and 2: Mic mode 5 MV, no trim, 1200 ohms Input 1 and 2: Line mode 316 MV (-10 dBV) 1200 ohms Input 3 and 4: 316 MV (-10 dBV) 10 kOhms Input 2: 3.5 mm summed, 3, 4 316 MV (-10 dBV) 10 kOhms
Signal / Noise
Mic > 55 dB Line > 55 dB Input 3 and 4 > 75 dB
Phantom Power
24 VDC
Power Output
100 W RMS at 4 ohms
Transformer Outputs
25 V @ 100 W RMS 70.7 V @ 100 W RMS 4 ohms @ 100 W RMS
Front Panel
Power Switch: Push type Indicators: Signal, peak, limit, and power PHD Test Circuit: Push momentary Level Controls: Master, inputs 2 through 4
Rear Panel I/O & Controls
Inputs
2x 3-position PHX type mic/ line-balanced, 3.5 mm pitch
2x RCA auxiliary unbalanced
1x 1/8" auxiliary unbalanced
1x unbalanced RCA amp in at 600 ohms
Outputs
Main: Transformer coupled, balanced, 4 ohms, 25 V, and 70.7 V. Class 2 rated, removable four-Position PHX, 5.08 mm pitch. Accepts up to 12 gauge wire, 12 A rating
Zone 2: Unbalanced 600 ohms / 10 kOhms, max 1.0 V out, removable two-position PHX, 3.5 mm pitch. Accepts up to 18 gauge wire, 8 A rating
Pre Out: 1x RCA unbalanced at 150 ohms
Tone controls
Bass: ±6 db @ 100 Hz
Treble: ±6 db @ 10 kHz
Mute
Vox Sensitivity: Pot rotary, range 500 uV to 200 mV
AC Mains: 120 V 60 Hz AC Cord: 2 M, 18 gauge, NEMA 5-20 P Idle Power: 14 W, .24 A. 47 BTU Average Power (1⁄3 Rated Output): 146 W, 1.52 A. 498 BTU Max Power (20 mS Burst) 242 W, 2.37 A, 825 BTU
