User manual for the ATN ThOR 320 4.5x Thermal Weapon Sight (60Hz) TIWSMT324A
The user manual for the ATN ThOR 320 4.5x Thermal Weapon Sight (60Hz) TIWSMT324A provides
necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Thermal Scopes.

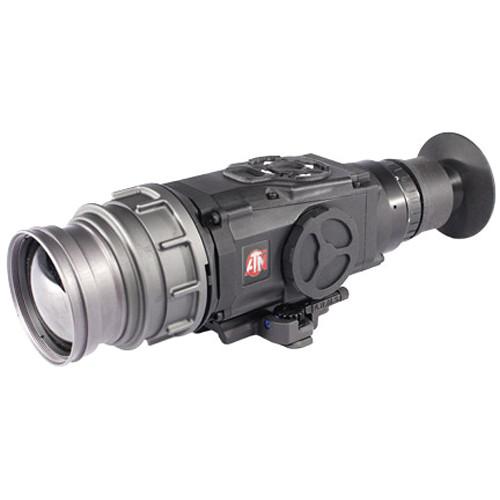

The ThOR 320 4.5x Thermal Weapon Sight (60Hz) from ATN is a compact rugged thermal weapon sight useful for close to mid-range target acquisition and surveillance. When tactical professionals need to see beyond darkness, camouflage, or bright lights, this is the night vision device for the task. ATN's thermal imagers are engineered to perform in the harshest conditions the battlefield can throw at it. The spring-less and screw-less design ensures that this weapon sight will maintain zero even after daily use in the field. From extreme weather to intense weapon recoil from heavy calibers, feel confident that the ThOR will deliver clear images with high contrast.
If you own a ATN thermal scopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ATN ThOR 320 4.5x Thermal Weapon Sight (60Hz) TIWSMT324A in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATN ThOR 320 4.5x Thermal Weapon Sight (60Hz) TIWSMT324A:
Specifications
Array Configuration
320 x 240 VOx Microbolometer
Sensitivity
<50mK
Spectral Response
7 - 14µm
Refresh Rate
60 Hz
Magnification
4.5x
Angle of View
6 x 4.7°
Lens System
50 mm, Janus lens with Diamond Like Carbon coating
Diopter Correction
-6 to 2
Eye Relief
28 mm
Exit Pupil
14 mm
Digital Zoom
2x / 4x
Display
800 x 600 OLED color matrix
Video Output
NTSC/PAL, 800 x 600 resolution
Power Source
(3) CR123A batteries
Runtime
Up to 8 hours of continuous operation at room temperature
The user manual for the ATN ThOR 320 4.5x Thermal Weapon Sight (60Hz) TIWSMT324A can be downloaded in .pdf
format if it did not come with your new thermal scopes, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ATN users keep a unique electronic library
for ATN thermal scopess,
where you can use our link to download the user manual for the ATN ThOR 320 4.5x Thermal Weapon Sight (60Hz) TIWSMT324A.
The user manual lists all of the functions of the ATN ThOR 320 4.5x Thermal Weapon Sight (60Hz) TIWSMT324A,
all the basic and advanced features and tells you how to use the thermal scopes.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ATN service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ATN ThOR 320 4.5x Thermal Weapon Sight (60Hz) TIWSMT324A. User manuals are also
available on the ATN website under Optics - Night & Thermal Vision - Thermal Scopes.
