User manual Atomos 4.3" Ninja 2 Video Recorder (Full Version)

Operating instructions and pdf manual for use - Atomos 4.3" Ninja 2 Video Recorder (Full Version) User manual, User manual Atomos 4.3" Ninja 2 Video Recorder (Full Version), Atomos, 4.3, Ninja, 2, Video, Recorder, Full, Version,

User manual for Atomos 4.3" Ninja 2 Video Recorder (Full Version)

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Atomos 4.3
  • Manufacturer: Atomos
  • Basic description and contents of package
  • Product classification: Professional Video - Recorders & Duplication - Solid State/HDD Recorders
  • Safety instructions
  • Startup and operation of the solid state/hdd recorders
  • Tips for setting up your Atomos
  • Settings and expert assistance
  • Contact Atomos service
  • Troubleshooting
  • Warranty information
  • Price: 295 USD
We recommend checking out our discussion threads on the Atomos 4.3" Ninja 2 Video Recorder (Full Version), which address similar problems with connecting and setting up Solid State/HDD Recorders Atomos.


User manual for the Atomos 4.3" Ninja 2 Video Recorder (Full Version)

The user manual for the Atomos 4.3" Ninja 2 Video Recorder (Full Version) provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

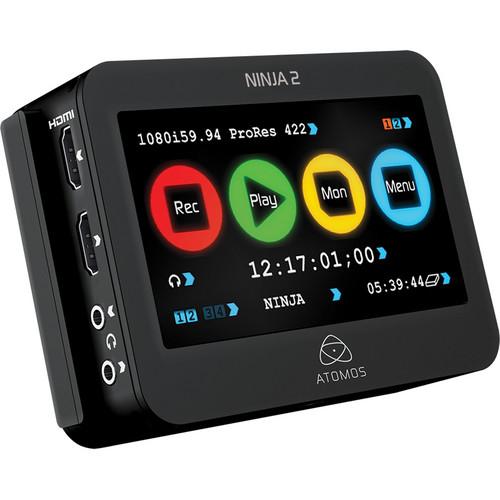

The Full Version of the Atomos Ninja 2 Video Recorder is an HDMI recorder built into an 800 x 480 resolution monitor that records up to 1080/30p/60i resolution directly from your camera's sensor. It records to an optional HDD or SSD in using Apple's ProRes or Avid's DNxHD edit-ready codecs. The Ninja 2 supports 10-bit 4:2:2 color sampling for vivid images superior to most DSLR internal recording capabilities, and you can still record 8-bit video to the Ninja 2. Built-in exposure tools such as false color and zebra bars provide useful aids in exposing your footage, while the built-in focus peaking tool can alert you to out of focus shots may be difficult to see on an on-camera monitor.

The 4.3" touchscreen features a resistive touchscreen that functions using pressure, this allows you to operate the touchscreen with your fingers, even while wearing gloves, which is important when working in the cold. The Ninja 2 incorporates anti-shock technology that allows you to continue to record even if your HDD skips a few frames from being jarred. The Master Caddy system allows you to choose to use optional 2.5" HDDs or SSDs with your Ninja 2. SmartLog editing tools allow you to mark selects during playback or recording, and can save you time when you go to edit. It includes two master drive caddies. a docking station that offloads these drives to your computer via USB 3.0/2.0, as well as a Sony-type NP-F570 battery, charger, AC adapter for continuous power, Canon LP-E6-type battery adapter, and a Nikon EN-EL15-type adapter.
If you own a Atomos solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Atomos 4.3" Ninja 2 Video Recorder (Full Version) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Atomos 4.3Download user manual for Atomos 4.3" Ninja 2 Video Recorder (Full Version)
(PDF file, 3.05 MB)
Additional parameters of the Atomos 4.3" Ninja 2 Video Recorder (Full Version):
Specifications
    Input Video input: uncompressed 10/8-bit 4:2:2
    HDMI 1.4 x1

    Audio input:
    2 channels on HDMI video input
    2 analog channels with gain controls
    Output Video output:
    HDMI 1.4 x1 (reclocked, ultra low jitter)

    Audio output:
    2 channels on HDMI video output
    Stereo x1
    Headphone x1
    Supported Formats HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25,
    1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i),
    1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94,
    20p50, SD 480i, 576i
    Encoding Realtime hardware encoding, 1920 x 1080 8/10-bit 4:2:2 to:

    Apple ProRes:
    HQ - 220Mbps (10-bit)
    422 - 150Mbps (10-bit)
    LT - 100Mbps (10-bit)

    Avid DNxHD:
    Avid DNxHD-220X - 220Mbps (10-bit)
    Avid DNxHD-220 - 36 Mbps (8-bit)
    Avid DNxHD-145 - 36 Mbps (8-bit)
    Screen 4.3" diagonal (11 cm)
    Resolution: 800 x 480
    Aspect ratio: 16:9 native / 4:3 letterbox / SMPTE color specification
    Native frame rate playback (48 - 60Hz)
    Remote Start / Stop HDMI start/stop flags (Canon compatible);
    LANC trigger via optional LANC adapter
    Customizable Remote Controls (control all Ninja functions): System integrator custom controls available on request from ATOMOS
    Timecode Sony and Canon compatible HDMI timecode in and out
    Recording Time Records for the same amount of time whether onto HDDs or SSDs

    Edit formats: I-frame only, 422, 8/10-bit

    ProRes HQ (10-bit, 220Mbps):
    250GB = 2.5 hrs, 500GB = 5 hrs, 1TB = 10 hrs

    Avid DNxHD-220x (10 bit, 220Mbps):
    250GB = 2.5 hrs, 500GB = 5 hrs, 1TB = 10 hrs

    ProRes 422 (10 bit, 150Mbps):
    250GB = 4 hrs, 500GB = 8 hrs, 1TB = 16 hrs

    Avid DNxHD-145 (8 bit, 145Mbps):
    250GB = 4 hrs, 500GB = 8 hrs, 1TB = 16 hrs

    ProRes LT (10 bit, 100Mbps):
    250GB = 5.5 hrs, 500GB = 11 hrs, 1TB = 22 hrs
    Operating Power Monitoring: 3W
    Rec, Mon & Play: 6W
    Batteries All 7.4V
    7.2V - 14.4V battery system compatible: 2600mAh - up to 10 hours
    Any source: 5200mAh - up to 20 hours
    NP series: 7800mAh - up to 30 hours
    DTap: AC power via adapter plate (option)
    Supporting accessories: DTap dummy battery (cables sold separately)
    Continuous Power Primary-secondary battery system
    Change batteries without losing power
    Loop batteries continuously
    Construction Aircraft grade aluminum
    Fanless for silent operation
    Dimensions 4.5 x 3.4 x 1.6" (11.5 x 8.7 x 4.1 cm)
    Weight Without batteries and HDD: .8 lbs (.37 kg)
    With batteries and HDD: 1.48 lbs (.67 kg)
    Packaging Info
    Package Weight 3.9 lb
    Box Dimensions (LxWxH) 9.1 x 8.7 x 5.2"
    The user manual for the Atomos 4.3" Ninja 2 Video Recorder (Full Version) can be downloaded in .pdf format if it did not come with your new solid state/hdd recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Atomos users keep a unique electronic library for Atomos solid state/hdd recorderss, where you can use our link to download the user manual for the Atomos 4.3" Ninja 2 Video Recorder (Full Version).

    The user manual lists all of the functions of the Atomos 4.3" Ninja 2 Video Recorder (Full Version), all the basic and advanced features and tells you how to use the solid state/hdd recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Atomos service.
