User manual for the Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" ATOMSHG001
The user manual for the Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" ATOMSHG001 provides
necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

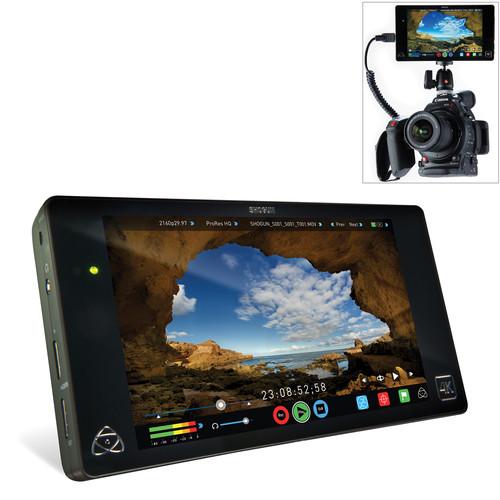

The Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" Monitor combines a color-calibrated 1920 x 1200 resolution display with 4K video recording and edit-ready codecs. The Shogun utilizes 4K HDMI and 12G-SDI inputs to record clean output signals at resolutions up to UHD 4K (3840 x 2160) at 23.98, 24, 25, 29.97, and 30p, as well as Full HD (1920 x 1080) video up to 120 fps when used with capable cameras.
The Shogun records 10-bit, 4:2:2 UHD 4K and HD video to Apple ProRes HQ, 422, or LT formats. It can also record HD video using Avid's DNxHD format and UHD 4K video using Avid's DNxHR. Video is recorded to single or raided 2.5" HDD and SDDs for fast and reliable write speeds.

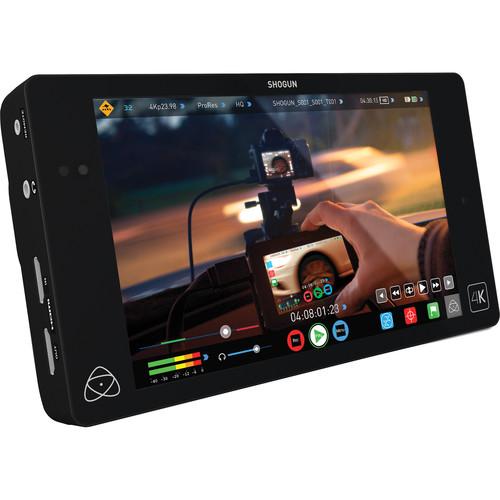

As a monitor, the Shogun features a 7" IPS capacitive touchscreen display with resolution of 1920 x 1200. It is Rec. 709 color calibrated and supports multi-frequency operation (48/50/60 Hz) for monitoring of a variety of input frame rates. An SDI loop output is available for passing the signal to an additional monitor. As an added convenience, 4K signals can be internally down-converted and output in 1080p at the same frame rate.
The Shogun adds several new features over previous Atomos models, including custom 3D LUT support, Genlock In for multi-camera syncing, and improved audio handling with an included LEMO breakout cable for XLR audio. There are also a variety of onscreen tools to help you set up your shots, including a full waveform monitor, RGB parade display, vectorscope, focus peaking, and other framing, focus, and exposure assisting tools.
This is the full version of the Shogun, which includes an NP-770 battery, battery charger, 9VDC 3A power adapter, five Master Caddy IIs, a LEMO to XLR breakout cable, an SSD/HDD docking station, a PowerTap adapter, and a rugged HPRC carrying case.
|
If you own a Atomos solid state/hdd recorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" ATOMSHG001 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Atomos Shogun 4K HDMI/12G-SDI Recorder and 7" ATOMSHG001:
| Type | 7.1" (18 cm) IPS capacitive touchscreen | | Resolution | 1920 x 1200
325 ppi | | Aspect Ratio | Native: 16:9 | | Brightness | 400 nit | | Frequency | 48 to 60 Hz | | Viewing Angle | 179° | | Color Space | Rec 709 (HDTV) | | LUT Support | User defined 3D LUTs available | | Inputs | 1 x HDMI In
1 x 12G-SDI In, BNC
1 x Genlock In, BNC
1 x LANC In
2 x XLR In (included LEMO breakout cable required) | | Outputs | 1 x HDMI Out
1 x 12G-SDI Out, BNC
2 x XLR Out (included LEMO breakout cable required)
1 x 3.5 mm audio output jack
| | USB | 1 x USB | | Supported Signal | Input: 10- / 8-bit 4:2:2 (dependent on video source)
Output: 10- / 8-bit 4:2:2 (dependent on video source) | | Supported Resolutions | UHD 4K (3840 x 2160): 2160p 24/25/30
HD (High Frame Rate): 1080p120, 1080p60/50, 720p120
HD: 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94, 720p50 | | Supported Loop-Out Formats | HDMI to HDMI:
720p 50/60/120
1080i 50/60
1080p 24/25/30/50/60/120
2160p 24/25/30
SDI to SDI:
720p 50/60
1080i 50/60
1080psf 24/25/30/50/60/120
1080p 24/25/30/50/60/120
2160p 24/25/30 | | Video Signal Conversion | HDMI to SDI:
720p 50/60
1080i 50/60
1080p 24/25/30/50/60/120
2160p 24/25/30
SDI to HDMI:
720p 50/60
1080i 50/60
1080p 24/25/30/50/60/120
2160p 24/25/30
4K Down-Conversion
Down-Converts 4K input to 1080p at matching frame rate (enable via "input" menu) | | Encoding Formats | UHD 4K (3840 x 2160):
Color Sampling: 4:2:2 at 8- or 10-bit
Apple ProRes: HQ, 422, LT
Avid DNxHR: HQX, HQ, SQ, LB
Full HD (1920 x 1080) Color Sampling: 4:2:2 at 8- or 10-bit
Apple ProRes: HQ, 422,LT
Avid DNxHD: 220/220x, 145, 36
Note: DNxHR requires AVID Media Composer 8.3.1 or later | | Pulldown Conversion | 50i from 25PSF > 25P (2:2 Pulldown)
60i from 30PSF > 30P (2:2 Pulldown)
60i from 24P > 24P (3:2 Pulldown)
60i from 23.98P > 23.98P (3:2 Pulldown) | | HDMI | 2 or 8-channel, up to 24-bit (camera dependent) | | SDI | Up to 12-channel, 48 or 96 kHz, up to 24-bit (camera dependent) | | Dynamic Range | > 90dB | | Signal Level | Maximum: +24dBu | | Gain | Maximum Analog Gain: +40 dB
Left and right channel gain independently adjustable via "audio options" menu | | Phantom Power | +48 V phantom power via XLR inputs | | HDMI | Auto HDMI trigger
Supported Protocols: Canon, Sony, Atomos Open Standard | | SDI | SDI trigger camera selectable | | LANC | Supports master and slave configuration | | Supported Media | 4K / HD High Frame Rate (50/60/120p):
CFast
2.5" SSD
Raided HDD (5,400 to 10,000 rpm)
HD (30p and less): CFast
2.5" SSD
Raided HDD (5,400 to 10,000 rpm) | | Master Caddy Dock | Interface: 2.5" SATA to USB 2.0/3.0 | | Supported Applications | Apple Final Cut Pro X / Final Cut Pro 7
Avid Media Composer 5.0+
Adobe Premiere Pro 5.5+
Grass Valley EDIUS 6.0+
Sony Vegas Pro 10+
Lightworks
Autodesk Smoke 2015+ | | Power Consumption | 6.8 to 11 W | | Power Requirements | Battery: 6.2 to 16.8 VDC | | Supported Batteries | Sony NP series
Nikon ENL6
Canon EL6 | | Battery Life | 2600 mAh: up to 3 hours
5200 mAh: up to 5 hours
7800 mAh: up to 8 hours | | Storage | 2 x SSD or HDD (single or raided) | | Dimensions | Shogun: 7.7 x 4.3 x 1.9" / 196 x 110 x 47 mm
Master Caddy II: 3 x 4.1 x 0.5" / 75 x 105 x 12 mm | | Weight | Without batteries & HDD: 1 lb / 460 g
With Batteries & HDD: 1.4 lb / 645 g | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 16.0 x 13.0 x 7.0" | |
