User manual for the Avalon Design Vt-747sp Stereo Tube Compressor / VT-747SP-B
The user manual for the Avalon Design Vt-747sp Stereo Tube Compressor / VT-747SP-B provides
necessary instructions for the proper use of the product Pro Audio - Recording - Dynamics Processors.

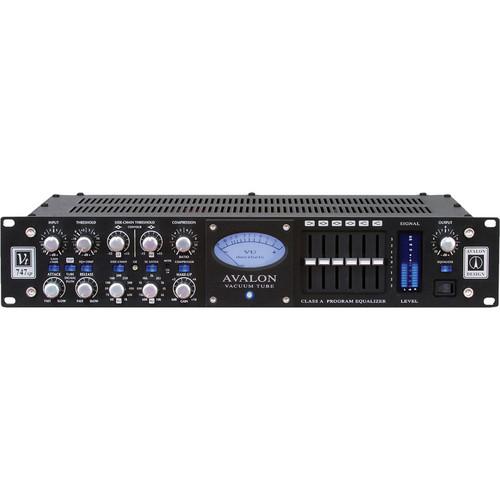

The Avalon Design Vt-747sp Stereo Tube Compressor / 6-Band EQ is one of those rare signal processors that sounds incredible on every source. It features minimalist routing; utilizing sealed silver relays for all signal and bypass functions. The Twin Signal Path (TSP) makes this unit entirely switchable between tube and solid-state operation.
The Vt-747sp's input gain stage provides versatile tone options right off the bat, especially with the tubes engaged. Unity and lower gain settings will keep the unit sounding clean and warm, allowing the compressor to have a light, transparent touch at lower ratios. If more gain and color is desired, the +10dB switch will instantly add some edge to the sound. With an additional 8dB of gain available above that, the Vt-747sp can push even a quiet signal into the red. In higher gain instances, the compression ratio can be set to feel like a leveler, or it can be increased to a very reactive transient grabber.
With ratios ranging from 1:1 to 20:1, the optical compressor can accomplish anything from subtle gain reduction to hard-knee limiting. Two variable-frequency side-chain filters allow you to tune the compressor's frequency response. A side-chain listen function helps pick out the specific frequencies you want to focus it on. A make-up gain control adds up to 10dB to the signal after compression.
The 6-Band stereo program EQ demonstrates the smooth sound of passive design, and can be placed before or after the compressor in the signal chain. Discrete, Class A high-voltage transistors ensure optimum sonic performance. The fixed frequency turnover, Q and amplitude ranges provide harmonic balance and low phase change.
The final output of the Vt-747sp features a master volume control, which allows you to drive the previous stages to their limit without clipping the inputs of your DAW. It can also provide up to 6dB of boost for quieter signals.
The Avalon Design Vt-747sp Stereo Tube Compressor / 6-Band EQ offers comprehensive tone shaping control over any stereo source.
If you own a Avalon Design dynamics processors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Avalon Design Vt-747sp Stereo Tube Compressor / VT-747SP-B in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Avalon Design Vt-747sp Stereo Tube Compressor / VT-747SP-B:
The user manual for the Avalon Design Vt-747sp Stereo Tube Compressor / VT-747SP-B can be downloaded in .pdf
format if it did not come with your new dynamics processors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Avalon Design users keep a unique electronic library
for Avalon Design dynamics processorss,
where you can use our link to download the user manual for the Avalon Design Vt-747sp Stereo Tube Compressor / VT-747SP-B.
The user manual lists all of the functions of the Avalon Design Vt-747sp Stereo Tube Compressor / VT-747SP-B,
all the basic and advanced features and tells you how to use the dynamics processors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Avalon Design service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Avalon Design Vt-747sp Stereo Tube Compressor / VT-747SP-B. User manuals are also
available on the Avalon Design website under Pro Audio - Recording - Dynamics Processors.
