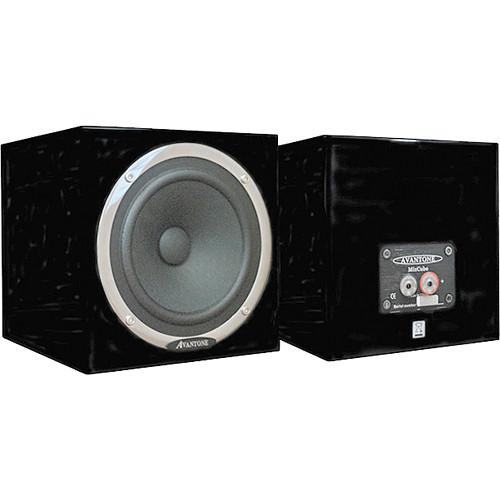

The Avantone MixCube Full-Range Mini Reference Monitor is a passive professional studio reference monitor specifically tailored to produce the useful musical range of 90 Hz to 17 kHz. In today's world of high definition media, it is still necessary to mix music that translates and sounds as defined on Lo-fi speakers such as laptops and Smartphones, as well as Hi-fi full-range HD audio systems. The MixCube provides audio engineers with accurate and detailed mid-frequency referencing, leaving the larger 2-way and 3-way monitoring systems to bass and high-frequency referencing.
The MixCube is passive and handles up to 200 watts (8Ω) from an external amplifier. The 5.25" driver is enclosed in a handsome MDF cabinet with a black finish. The input connector features 3-way CE rated plastic encased metal binding posts that accept up to 12-gauge wire, spade lugs and dual banana plugs. The MixCube's small size makes it easy to place in any studio setting, and as an added feature, Avantone installed 5/8"-27 thread microphone stand fittings to the base of the speaker.
|
If you own a Avantone Pro studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Avantone Pro Avantone MixCube Full-Range Mini Reference PMB in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Avantone Pro Avantone MixCube Full-Range Mini Reference PMB:
| Type | Dynamic shielded full-range speaker | | Frequency Response | 90 Hz to 17 kHz (useful musical range) | | Impedance | Nominal 8Ω | | Maximum SPL | 93 dB @ 1 W/1 meter | | Recommended Power | 10 to 200 watts | | Driver | 5.25" cast aluminum frame
Cabinet sealed / 18mm MDF / Dacron acoustical stuffing | | Inputs | 3-way CE rated plastic encased metal binding posts (accepts up to 12-gauge wire, spade lugs, dual banana plugs) | | Dimensions | 6.5 x 6.5 x 6.5" (165 x 165 x 165 mm) | | Weight | 6.7 lb (3 kg) | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 9.7 x 9.5 x 9.4" | |
