User manual Axis Communications Q1755-E Network Camera 0348-001

Operating instructions and pdf manual for use - Axis Communications Q1755-E Network Camera 0348-001 User manual, User manual Axis Communications Q1755-E Network Camera 0348-001, Axis, Communications, Q1755-E, Network, Camera, 0348-001,


User manual for Axis Communications Q1755-E Network Camera 0348-001

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Axis Communications Q1755-E Network Camera 0348-001
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Axis Communications Q1755-E Network Camera 0348-001, which address similar problems with connecting and setting up Wired IP Cameras Axis Communications.



User manual for the Axis Communications Q1755-E Network Camera 0348-001

The user manual for the Axis Communications Q1755-E Network Camera 0348-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

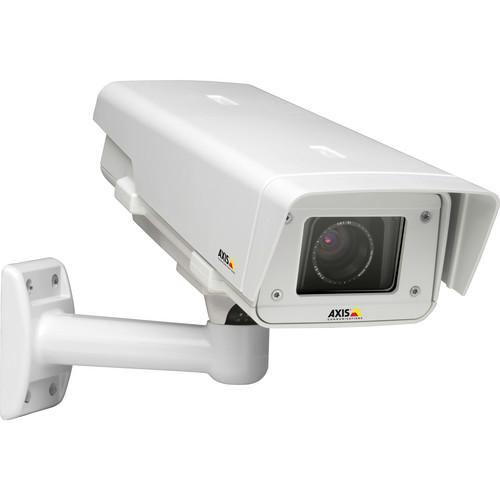

The Axis Communications AXIS Q1755-E Network Camera is ready for outdoor installation, with its IP66 rated weatherproof housing and sunshield offering optimum protection from sun, rain, and temperatures as low as - 40°F (w/optional High PoE Midspan/AXIS T8123). Axis' unique Arctic Temperature Control technology makes it possible to start up the camera in very low temperatures following a power failure.

For video capture, this camera uses a 1/3" progressive scan CMOS chip with 2 megapixel resolution. The results are images of exceptional clarity and color fidelity, factors which translate into a higher degree of security. The camera also offers a wealth of electronic picture controls, including a Day/Night function, to help optimize image quality in a variety of lighting and scene situations.

Multiple video streaming is supported at full 30 FPS using the H.264 and MJPEG compression schemes. Each video stream can also be individually adjusted for frame rates and bandwidth to suit a particular network environment.

This camera comes equipped with a 10x optical zoom operated via a CCTV controller (not included) connected to the RS-485/422 control port on this camera. A Gatekeeper function enables the camera to automatically zoom in when motion is detected in the scene and then zoom out again after a preset time. With the addition of an optional motorized pan/tilt unit, this camera can be provided with full PTZ functionality.

Along with motion detection, this camera has the ability to detect changes in sound (audio detection) as well as sensing someone trying to block or spray paint the lens.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications Q1755-E Network Camera 0348-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications Q1755-E Network Camera 0348-001Download user manual for Axis Communications Q1755-E Network Camera 0348-001
(PDF file, 4.11 MB)
Additional parameters of the Axis Communications Q1755-E Network Camera 0348-001:
Camera
Image Sensor 1/3'' progressive scan CMOS 2 megapixel
Resolution HDTV 1080i 1920 x 1080, HDTV 720p 1280 x 720

Standard NTSC/PAL for installation (analog output)
Lens Focal Length: 5.1-51mm
Aperture: F1.8-2.1
Focus: autofocus
MOD: 10m wide, 800mm tele
Horizontal angle of View: 50-5.4°Filter Thread: 37 x 0.75mm
Iris Operation Auto
Minimum Illumination Color: 2 lux at 30 IRE, F1.8
B/W: 0.2 lux at 30 IRE, F1.8
Pan & Tilt Compatible with optional P/T unit
Analog Video Output Video out: 3x RCA Y/Pb/Pr (HD), 1x RCA Composite (SD)
Audio 3.5mm mic/line in, 3.5mm line out (2-way)
Controls Compression, brightness, sharpness, white balance, exposure control, backlight compensation, rotation, mirroring of images, text and image overlay, privacy mask
Motion Detection Intelligent video: Video motion detection, active tampering alarm, audio detection, Gatekeeper

Alarm triggers: Video motion detection, active tampering alarm, audio detection, temperature, external input

Alarm events: File upload via FTP, HTTP and email; notification via email, HTTP and TCP; external output activation

Video buffer: 96 MB pre- and post alarm
Alarm I/O 2 alarm inputs and 2 outputs
Network
Compression Format H.264 (MPEG-4 Part 10/AVC), Motion JPEG
Picture Size HDTV 1080i 1920 x 1080, HDTV 720p 1280 x 720
Video Streaming Video Streaming:
Multiple, individually configurable streams in H.264 and Motion JPEG

Controllable frame rate and bandwidth

VBR/CBR H.264
Frame Rate 30/25 fps in all resolutions
Supported Protocols IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, Pelco-D
Card Slot SD/SDHC memory card slot (card not included)
Network Interface RJ-45 10BASE-T/100BASE-TX
General
Housing IP66-rated, IK10 impact resistant aluminum enclosure
Power Requirements Power over Ethernet (PoE) IEEE 802.3af Class 3 or High Power over Ethernet (High PoE)
Operating Temperature Standard PoE: -22 ~ 113°F (0 ~ 45°C)
High PoE: -40°F (-40°C)

Arctic Temperature Control enables camera start-up at temperatures as low as -40 ºC (-40 ºF ) with High PoE
Dimensions (WxHxD) (without bracket)
5.1 x 3.1 x 15.9" (130 x 79 x 404mm)
Weight 7.7 lbs (3.5kg)
Packaging Info
Package Weight 12.3 lb
Box Dimensions (LxWxH) 22.7 x 9.5 x 9.0"
The user manual for the Axis Communications Q1755-E Network Camera 0348-001 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications wired ip camerass, where you can use our link to download the user manual for the Axis Communications Q1755-E Network Camera 0348-001.

The user manual lists all of the functions of the Axis Communications Q1755-E Network Camera 0348-001, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications Q1755-E Network Camera 0348-001. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
