User manual for the Barco F-22 WUXGA Installation Projector R9023054

The user manual for the Barco F-22 WUXGA Installation Projector R9023054 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

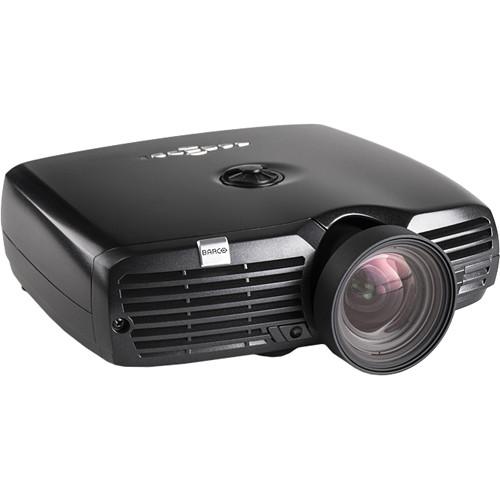

The black F-22 WUXGA Multimedia Projector with Standard Zoom Lens and High Brightness Color Wheel from Barco is a professional installation projector adaptable to a range of use cases, such as flight simulators and theme park rides, museums, visitor attractions, and more. The projector features a brightness of up to 3000 lumens (depending on settings), has a native WUXGA (1920 x 1200) resolution and native 16:10 aspect ratio format. In addition to its native aspect ratio and resolution, through internal scaling, the F22 can accommodate a wide range of formats, from 480p SD all the way up to WUXGA (1920 x 1200).
If you own a Barco multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Barco F-22 WUXGA Installation Projector R9023054 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Barco F-22 WUXGA Installation Projector R9023054:
Specifications
    Image Display
    Display System 1-Chip DLP

    optical lens shift design
    Native Resolution WUXGA - 1920 x 1200
    Supported Resolutions SXGA+ - 1400 x 1050
    Full HD 1080p - 1920 x 1080
    Supported Formats Not Specified By Manufacturer
    Format NTSC
    PAL
    SECAM
    HDTV Compatibility 1080p
    1080i
    720p
    Pixels Not Specified By Manufacturer
    Brightness 3000 Lumens
    Projection Angle Not Specified By Manufacturer
    Uniformity Not Specified By Manufacturer
    Offset Not Specified By Manufacturer
    Aspect Ratio Native: 16:10
    Supported: 4:3
    Supported: 16:9
    Contrast Ratio 2D — 2500:1
    Dynamic Contrast Ratio Not Specified By Manufacturer
    DLP Link 3D Not Specified By Manufacturer
    Supported 3D Formats Not Specified By Manufacturer

    INFITEC EX 3D
    Color Range R, G, B
    Scan Horizontal: 15 - 150 Hz
    Vertical: 48 - 190 kHz
    Focus Manual
    Lens Not Specified By Manufacturer
    Lens Shift Not Specified By Manufacturer
    Zoom Not Specified By Manufacturer
    Throw Distance Not Specified By Manufacturer
    Throw Ratio 1.6 - 2.21:1
    Projection Size Not Specified By Manufacturer
    Input/Output Connectors
    Inputs/Outputs 1x DVI-D Video (Input)
    1x HDMI Control (Input)
    1x 15-pin VGA Video (Input)
    1x HDMI Video (Input)
    1x RCA Component Video (Input)
    1x S-Video Video (Input)
    1x BNC Composite Video (Input)
    1x Ethernet Control (Input/Output)
    2x 9-pin VGA Control (Input/Output)
    1x USB Control (Input/Output)
    2x 1/8" (3.5 mm) Mini Control (Input)
    1x 1/8" (3.5 mm) Mini Control (Input)
    General
    Lamp (Bulb) 1x UHP
    Replacement Lamp R9801265
    Light Source Not Specified By Manufacturer
    Color Temperature Not Specified By Manufacturer
    Watts Normal Mode: 220 W
    Life Normal Mode: 2250 Hours
    Eco Mode: 3000 Hours
    Fan Noise Not Specified By Manufacturer
    Maximum Pixel Clock Not Specified By Manufacturer
    Remote Control Yes
    Security Not Specified By Manufacturer
    System Requirements Not Specified By Manufacturer
    Languages Not Specified By Manufacturer
    Power Requirements 100-240 VAC,
    Battery Not Specified By Manufacturer
    Input Current Not Specified By Manufacturer
    DC Output Not Specified By Manufacturer
    Heat Dissipation 1061 BTU

    Maximum
    Power Consumption Not Specified By Manufacturer
    Altitude Not Specified By Manufacturer
    Temperature Operating
    50 to 104°F (10 to 40°C)
    Humidity: 20 - 80%
    Storage
    -4 to 140°F (-20 to 60°C)
    Humidity: 10 - 90%
    Dimensions (WxHxD) 10.9 x 3.7 x 9.2" / 278.0 x 94.0 x 234.0 mm
    Weight 6.39 lb / 2.9 kg
    Note: Conforms to CE, FCC Class A and cCSAus standards.
    The user manual for the Barco F-22 WUXGA Installation Projector R9023054 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Barco users keep a unique electronic library for Barco multimedia projectorss, where you can use our link to download the user manual for the Barco F-22 WUXGA Installation Projector R9023054.

    The user manual lists all of the functions of the Barco F-22 WUXGA Installation Projector R9023054, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Barco service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Barco F-22 WUXGA Installation Projector R9023054. User manuals are also available on the Barco website under A/V Presentation - Projectors - Multimedia Projectors.
