User manual Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200

Operating instructions and pdf manual for use - Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200 User manual, User manual Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200, Behringer, ULTRAGAIN, DIGITAL, ADA8200, 8, In/8,


User manual for Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - AD/DA Converters
  • Safety instructions
  • Startup and operation of the ad/da converters
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200, which address similar problems with connecting and setting up AD/DA Converters Behringer.



User manual for the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200

The user manual for the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - AD/DA Converters.

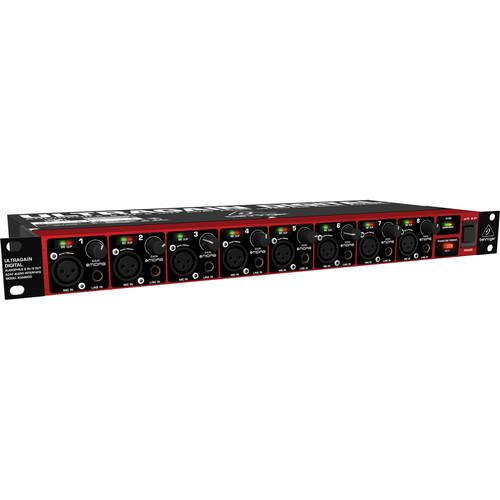

The ULTRAGAIN DIGITAL ADA8200 from Behringer is an analog to digital, and digital to analog converter that provides 8 analog inputs and outputs, and 8 digital ADAT inputs and outputs.

Each analog input features a MIDAS mic preamplifier and XLR and TRS jacks for connecting mics, keyboards, and more. Each analog output features an XLR jack for sending signals to analog mixing consoles, headphone amps and other devices. Housed in a single-space 19" rack-mount enclosure, this unit can be used in your home or project studio to add I/O to your rig for recording and mixing by connecting into your ADAT equipped audio interface.
If you own a Behringer ad/da converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200:
Specifications
    Microphone Inputs
    Design MIDAS designed microphone preamp
    Type XLR connector, electronically balanced, discrete input circuitry
    Gain Range +10 to +60 dB
    Maximum Input Level +6 dBu @ +10 dB gain for 0 dB FS
    Impedance 2.7 kΩ balanced
    Phantom Power +48 V, switchable
    Line Inputs
    Type ¼" TRS connector, electronically balanced, discrete input circuitry
    Impedance appr. 20 kΩ balanced, appr. 10 kΩ unbalanced
    Gain Range -10 to +40 dB
    Maximum Input Level +26 dBu @ -10 dB gain for 0 dB FS
    Line Outputs
    Type XLR connector, electronically balanced
    Impedance appr. 1 kΩ balanced, appr. 500 Ω unbalanced
    Max. Output Level +16 dBu @ 0 dB FS
    Digital Inputs
    Type TOSLINK, optical connector
    Format ADAT, 8 channels, 24-bit @ 44.1 / 48 kHz
    Digital Outputs
    Type TOSLINK, optical connector
    Format ADAT, 8 channels, 24-bit @ 44.1 / 48 kHz
    Sync
    Source Internal 44.1 / 48 kHz, ADAT input, word clock input
    Word Clock Type: BNC connector
    Input level: 2 to 6 V peak-to-peak
    Frequency range: 44.1 to 48 kHz
    System
    Frequency Range 10 Hz to 24 kHz @ 48 kHz sample rate
    THD < 0.008%
    Crosstalk < -87 dB
    Power
    Power Supply 100 ~ 240 V AC
    Power Consumption 15 W
    Fuse T 1A 250 V
    Mains Standard IEC receptacle
    Dimensions
    Dimensions (H x W x D) 1.75 x 19.00 x 8.50" (44.5 x 482.6 x 217.0 mm)
    Weight 4.6 lb (2.1 kg)
    Packaging Info
    Package Weight 6.5 lb
    Box Dimensions (LxWxH) 21.0 x 12.1 x 4.4"
    The user manual for the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200 can be downloaded in .pdf format if it did not come with your new ad/da converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer ad/da converterss, where you can use our link to download the user manual for the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200.

    The user manual lists all of the functions of the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200, all the basic and advanced features and tells you how to use the ad/da converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer ULTRAGAIN DIGITAL ADA8200 - 8 In/8 Out ADAT ADA 8200. User manuals are also available on the Behringer website under Pro Audio - Computer Audio - AD/DA Converters.
