User manual for the Behringer XENYX QX1222USB - 16-Input USB Audio Mixer QX1222USB
The user manual for the Behringer XENYX QX1222USB - 16-Input USB Audio Mixer QX1222USB provides
necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

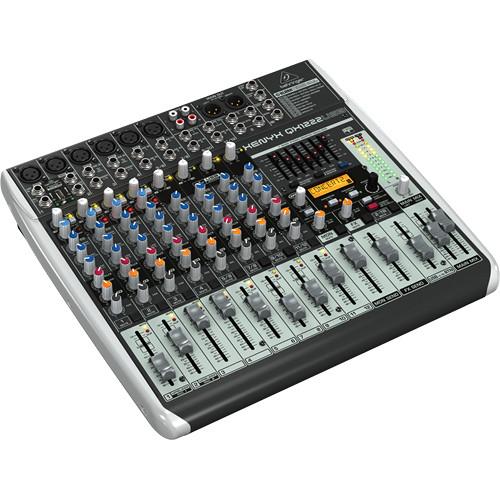

The Behringer XENYX QX1222USB - 16-Input USB Audio Mixer with Effects is a 16-input 2/2-bus audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. The mixer features four XENYX microphone preamps with +48V phantom power, British-style channel EQ, a 7-band graphic EQ, four easy-to-use one-knob compressors, a Klark Teknik effects engine with 32 presets, and is compatible with Behringer's 2.4 GHz wireless microphones.
|
If you own a Behringer analog recording mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Behringer XENYX QX1222USB - 16-Input USB Audio Mixer QX1222USB in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Behringer XENYX QX1222USB - 16-Input USB Audio Mixer QX1222USB:
| Total # Of Inputs | 16 | | Input Channels | Mono: 4
Stereo: 4 | | Preamplifier | 4x XENYX | | USB Connection | 2-in/2-out | | Buses | Mix: 2/2 | | Phantom Power | +48 V | | EQ Type | Mono channel 3-band | | Compressor | 4 | | Wireless (Features) | Built-in compatibility with Behringer wireless microphone system | | AUX Sends | Per channel: 1/1 | | AUX Returns | 2 stereo returns | | Metering | 12-segment stereo LED meters
Clip LEDs on every channel | | Type | 6x XLR connector, balanced, discrete input circuit | | Mic Input Noise (E.I.N.) | From 20 to 20,000 Hz
At 0 Ω source resistance: -134 dB/-136 dB A-weighted
At 50 Ω source resistance: -131 dB/-133 dB A-weighted
At 150 Ω source resistance: -129 dB/-131 dB A-weighted | | Frequency Response | Preamp:
< 10 to 150,000 Hz (-1 dB)
< 10 to 200,000 Hz (-3 dB)
Mic input to main output:
<10 to 160,000 Hz: ± 3 dB | | Dynamic Range | Not specified by the manufacturer | | Gain Range | +10 to +60 dB | | Maximum Input Level | +12 dBu at +10 dB gain | | Impedance | 2 kΩ balanced | | Signal-to-Noise Ratio | 107 dB / 110 dB A-weighted (0 dBu In @ +22 dB gain) | | Total Harmonic Distortion (THD) | 0.005% / 0.004% A-weighted | | Phantom Power | Switchable, +48 V | | Type | 1/4" TRS connector, balanced | | Impedance | 20 kΩ balanced
10 kΩ unbalanced | | Gain Range | -10 dB to +40 dB | | Maximum Input Level | 30 dBu | | Type | 4x 1/4" TRS connector, unbalanced | | Impedance | 20 kΩ balanced
10 kΩ unbalanced | | Gain Range | -20 dB to +20 dB | | Maximum Input Level | +22 dBu | | Tape I/O | Type: RCA Connectors
Impedance: 10 kΩ
Maximum Input Level: +22 dBu | | EQ Type | 3-Band Semi-Parametric
Low: 80 Hz / ± 15 dB
Mid: 2,500 Hz; / ± 15 dB
High: 12,500 Hz / ± 15 dB | | Type | 1/4" TRS connector, unbalanced | | Maximum Input Level | +22 dBu | | AUX Sends | Type: 2x 1/4" TRS connector, unbalanced
Impedance: 120 Ω
Maximum Output Level: +22 dBu | | AUX Returns | Type: 2x 1/4" TRS connector, unbalanced
Impedance: 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level: +22 dBu | | Main Outputs | Type: XLR, balanced
Impedance: 240 Ω symmetrical, 120 Ω unbalanced
Maximum Output Level: +28 dBu | | Control Room Outputs | Type: 1/4" TRS connector, balanced
Impedance: 120 Ω
Maximum Output Level: +22 dBu | | Headphone Outputs | Type: 1/4" TRS connector, unbalanced
Impedance: 25 Ω
Maximum Output Level: +21 dBu at 150 Ω (+25 dBm) | | Stereo Tape Outputs/Type | Type: RCA connectors
Impedance: 1 kΩ
Maximum Output Level: +22 dBU | | DSP | Klark Teknik
Converter: 24-bit Sigma-Delta, 64-/128-times oversampling
Sampling rate: 40 kHz | | Noise | Main mix at -∞ with channel fader at -∞: -100 dB / -102 dB A-weighted
Main mix at 0 dB with channel fader at -∞: -86 dB / -88 dB A-weighted
Main mix at 0 dB with channel fader at 0 dB: -81 dB / -83 dB A-weighted | | USB | Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz | | Mains | 100 to 240 V, 50/60 Hz | | Power Consumption | 40 W | | Fuse | T 1.6 A H 250 V | | Connection | Standard IEC receptacle | | Dimensions (W x D x H) | 14.6 x 13.3 x 3.5" (370 x 338 x 90 mm) | | Weight | 8.4 lb (3.8 kg) | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 18.5 x 16.5 x 6.0" | |
