User manual for the Benro V1E Triple Action Ball Head V1E
The user manual for the Benro V1E Triple Action Ball Head V1E provides
necessary instructions for the proper use of the product Photography - Tripods & Support - Tripod Heads.

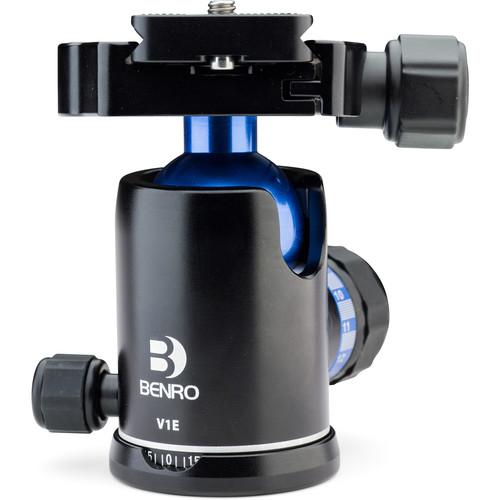

The V1E Triple Action Ball Head from Benro can hold up to 22 lb, stands 3.9" high, and weighs 0.9 lb. An Arca-type compatible clamp and QR plate allow for fast camera attachment and removal. The ball's movement is controlled by a large locking knob with a friction control wheel and the 360° panning is controlled by another lock.
To prevent accidental release of the QR plate and camera, the clamp features a pull-and-twist safety lock. A 90° notch allows you to quickly place your camera in portrait orientation, and a panoramic scale makes it easy to repeat exacting pans. A bubble level on the clamp helps to ensure that the camera will be even with the horizon.
|
If you own a Benro tripod heads and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Benro V1E Triple Action Ball Head V1E in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Benro V1E Triple Action Ball Head V1E:
| Load Capacity | 22 lb (10 kg) | | Ball Sphere Diameter | 1.4" (36 mm) | | Quick Release | Yes, Arca-type compatible | | Bubble Level | Yes | | Friction Control | Yes | | Separate Panning Lock | Yes | | Tripod Mount Thread Size | 3/8"-16 | | Height | 3.9" (9.9 cm) | | Maximum Diameter | 2" (50 mm) | | Weight | 0.9 lb (0.4 kg) | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 5.8 x 4.5 x 4.4" | |
The user manual for the Benro V1E Triple Action Ball Head V1E can be downloaded in .pdf
format if it did not come with your new tripod heads, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Benro users keep a unique electronic library
for Benro tripod headss,
where you can use our link to download the user manual for the Benro V1E Triple Action Ball Head V1E.
The user manual lists all of the functions of the Benro V1E Triple Action Ball Head V1E,
all the basic and advanced features and tells you how to use the tripod heads.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Benro service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Benro V1E Triple Action Ball Head V1E. User manuals are also
available on the Benro website under Photography - Tripods & Support - Tripod Heads.
