User manual for the Blackmagic Design ATEM 1 M/E Production Studio 4K SWATEMPSW1ME4K

The user manual for the Blackmagic Design ATEM 1 M/E Production Studio 4K SWATEMPSW1ME4K provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

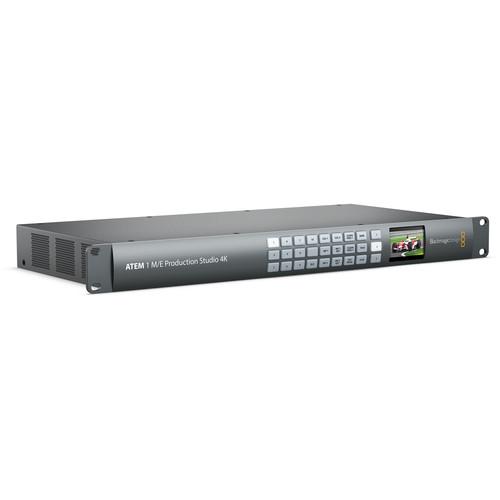

The Blackmagic ATEM 1 M/E Production Studio 4K is a live event multi camera production switcher with 10 individual Ultra HD inputs built into a 1RU chassis. Supporting NTSC/PAL/HD and Ultra HD video formats, the switcher connects to a wide range of cameras and sources, delivering a single program stream in SD, HD, or Ultra HD video. All this is done live and in real time with no rendering required. The switcher features a reference video input for synchronizing the switcher to other equipment using tri-level or blackburst sync. Each input also features its own frame synchronizer, which allows you to use cameras that do not feature Genlock as well as input video from computer sources.

The switcher provides 8 video outputs that are always active. It features two SDI and one HDMI Program output, both of which deliver SD/HD/Ultra HD, with one aux SD/HD/Ultra HD output that can deliver a clean program feed without any downstream effects. The switcher also features a down-converted HD output for monitoring on an SDI-equipped HD monitor. Multi view monitoring is 1080i only, over dedicated SDI or HDMI output, and multi view allows you to view the program, preview, and eight live sources at the same time. The switcher features built-in luma and chroma keyers for real time effects and composites in Ultra HD, with 10-bit processing. Two downstream keyers allow you to use two graphics/logos/titles/lower thirds from up to twenty stored graphics in a wide variety of formats.

A built-in twelve-channel audio mixer handles the embedded HDMI and SDI audio from the 10 active video inputs as well as audio from the balanced or unbalanced analog audio inputs to provide you flexibility and creative audio options. Audio output is embedded in the SDI and HDMI stream, as well as available via balanced audio outputs. Either a Mac or PC running the included ATEM Software controls the switcher's operation and settings. For those who like the feel of a physical control panel, available ATEM ME 1 and ME 2 Broadcast Panels, connected via the Ethernet port, also control all the features of the switcher. Illuminated front panel buttons allow you to locally select the aux output, while a 2-inch LCD screen built into the front of the unit allows you to see the aux output for instant confirmation of the correct output.
If you own a Blackmagic Design production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design ATEM 1 M/E Production Studio 4K SWATEMPSW1ME4K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design ATEM 1 M/E Production Studio 4K SWATEMPSW1ME4K:
Standards
Ultra HD Support SDI
3840 x 2160p 23.98/24/2529.97/30

HDMI: Computer Input Resolutions
3840 x 2160 23.98/24/25/29.97 Hz
HD Format Support SDI
720p 50/59.94
1080i 50/59.94
1080p 23.98/24/25/29.97/50/59.94

HDMI: Computer Input Resolutions
1280 x 720 50/59.94 Hz
1920 x 1080 50/59.94 Hz
SD Format Support SDI
NTSC: 525/29.97 - 4:3/16:9
PAL: 625/25 - 4:3/16:9

HDMI: Computer Input Resolutions
720 x 480i 59.94 Hz
720 x 576i 50Hz
SDI Compliance SMPTE 259M, 292M
Connectivity
Video Inputs 10 x SDI (10-bit SD/HD/Ultra HD switchable)
1 x HDMI 4K(10-bit SD/HD/Ultra HD switchable)
2 Channel embedded audio
Audio Input Digital
20 x Embedded audio via SDI or HDMI

Analog
2 x XLR
2 x RCA
Sync Input 1 x SDI: Tri-Sync or Blackburst
Frame Synchronizer 10 x Internal frame synchronizers (all inputs)
Program Output 2 x SDI (10-bit SD/HD/Ultra HD 4K switchable)
1 x HDMI Type A (10-bit SD/HD/Ultra HD 4K switchable)
1 x SDI (Ultra HD 4K to HD only)
Auxiliary Output 3 x SDI (10-bit SD/HD/Ultra HD 4K switchable)
Multi View Output 1 x SDI (HD-SDI)
1 x HDMI (HD)
Preview (PVW) Output 1 x SDI (10-bit SD/HD/Ultra HD 4K switchable)
Multi View Output 1 x SDI
1 x HDMI
SDI Audio Output 2 Channels embedded into SDI output
Analog Audio Output 2 x XLR
Ethernet 1 x 10/100/1000 BaseT input. Allows direct connection between control panel and chassis, or via network
Serial Communication RS-422
Tally Output Added via Ethernet connection

Note: GPI and Tally Interface product are optional and are not included
GPI Added via Ethernet connection

Note: GPI and Tally Interface product are optional and are not included
Software Update Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address, which is set via the ATEM Switcher Utility connected via USB to chassis
Processing
Color Space Conversion Hardware based, real time
Processing Delay <2 lines
Video Sampling 4:2:2
Color Space REC 601
REC 709
REC 2020
Color Precision 10-bit
Built-in Media Players
Quantity 2
Channels 2 x per Media Player (fill and key)
Still Image Capacity 32 with fill and key
Clip Capacity Quantity
2 with fill and key

Maximum Clip Length
Ultra HD 4K: 180 frames
1080: 720 frames
720p: 1600 frames
NTSC/PAL: 3600 frames
Image File Formats Still
PNG, TGA, BMP, GIF, JPEG, and TIFF

Video
TGA sequence

Audio
WAV, MP3, AIFF
Multi-View Monitoring
Display Minimum monitor resolution: 1366 x 768
Number of Windows 1 Multi-view display with 10 x windows for:
Preview
Program
8 x assignable displays
Tally Red for program and green for preview indication

Note: requires optional Blackmagic Design GPI and Tally interface product
Window Source Labels Yes
Front Panel Controls
Buttons Illuminated button control Aux output settings
LCD Display 1 x 2" LCD display of Aux output
Control Panel
Software ATEM Software Control Panel for both Mac and PC

Mac
OS x 10.7 Lion or later
OS x 10.8 Mountain Lion or later

Windows
Windows 7 64-bit
Windows 8 32/64-bit

Note: software included with purchase of ATEM Production Studio 4K
Hardware ATEM 1 M/E Broadcast Panel
ATEM 2 M/E Broadcast Panel

Note: hardware panels are optional not included
Extras
Keyers 4 x Upstream
2 x Downstream
7 x Linear/Luma
4 x Chroma
1 x Stinger
1 x DVE
Generators 7 x Pattern
2 x Color
Power
Input Voltage 110/240 V AC, 50/60 Hz

Note: IEC power cord required, not included
Power Consumption 100W
Redundant Power No
General
Temperature Operating Temperature
32 to 104°F (0 to 40°C)

Storage Temperature
-4 to 140°F (-20 to 60°C)
Relative Humidity 0 to 90% non-condensing
Dimensions (HxWxD) 1.7 x 19.0 x 9.25" (43.2 x 482.6 x 235 mm)

1RU-sized unit with built-in rack mount ears
Weight 5.73 lb (2.6 kg)
Packaging Info
Package Weight 6.65 lb
Box Dimensions (LxWxH) 19.2 x 10.9 x 3.4"
