Blackmagic Design  HyperDeck Studio 2 HYPERD/ST2
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: Professional Video - Recorders & Duplication - Solid State/HDD Recorders
  • Safety instructions
  • Startup and operation of the solid state/hdd recorders
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
  • Price: 945 USD
We recommend checking out our discussion threads on the Blackmagic Design HyperDeck Studio 2 HYPERD/ST2, which address similar problems with connecting and setting up Solid State/HDD Recorders Blackmagic Design.



User manual for the Blackmagic Design HyperDeck Studio 2 HYPERD/ST2

The user manual for the Blackmagic Design HyperDeck Studio 2 HYPERD/ST2 provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

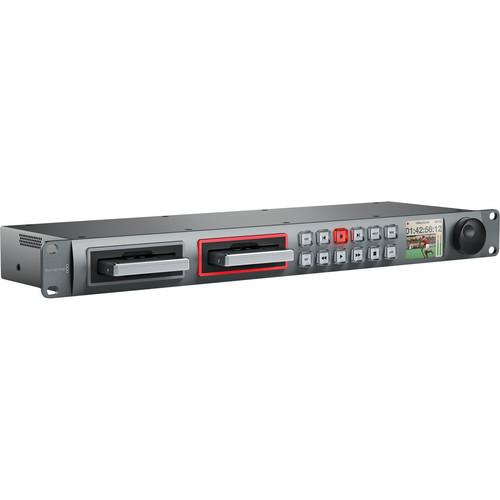

The Blackmagic Design HyperDeck Studio 2 is a file-based deck that features the same functionality and control of professional tape decks. It records uncompressed video with 4:2:2 color sampling at 10-bit in Quicktime format, and also records video using either ProRes or DNxHD codecs. With two SSD slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other. The HyperDeck Studio features one 3G-SDI input and three SD/HD/3G-SDI outputs plus a loopthrough output, and one HDMI input and one HDMI output. All outputs, except the loopthrough SDI, are always active, so playback is available on both the SDI and HDMI outputs no matter what input it was recorded from.

The Studio 2 is a 1RU rack mountable unit, with built-in rack mount ears. It features illuminated front panel button control and a jog/shuttle wheel for analog scrubbing. RS-422 control is supported for external control. You can also control the unit using either the USB port or over Ethernet via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video, and display timecode and transport information.
If you own a Blackmagic Design solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design HyperDeck Studio 2 HYPERD/ST2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Blackmagic Design  HyperDeck Studio 2 HYPERD/ST2Download user manual for Blackmagic Design HyperDeck Studio 2 HYPERD/ST2
(PDF file, 7.15 MB)
Additional parameters of the Blackmagic Design HyperDeck Studio 2 HYPERD/ST2:
Video Input Digital Video
1 x SDI (10-bit SD/HD/3G switchable)
1 x HDMI 1.4 type A
Video Output Digital Video
1 x SDI Loop Through(10-bit SD/HD/3G switchable)
2 x SDI (10-bit SD/HD/3G switchable)
1 x SDI Monitor Output (10-bit SD/HD/3G switchable)
1 x HDMI 1.4 type A
Audio Input Digital
SDI
16 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files.

HDMI
8 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files.
Audio Output SDI
16 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files.

HDMI
8 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files.
Computer Interface 1 x USB 2.0 mini B-type for initial setup, software updates and HyperDeck Utility software control
SSD Interface 2 x 2.5" SATA 3Gb/s
Sync Input Blackburst or Tri-Sync
Device Control Sony compatible RS-422 deck control port
Recorder Recorder control:
12 buttons and jog wheel for local control /
or use either RJ45 Ethernet or USB 2.0 high speed interface

Recorder configuration:
use USB 2.0 high speed interface
Format Support SD
NTSC/PAL
525 29.97 / 625 25 (525 59.94i / 625 50i)
480p60 and 576p50 via HDMI only

HD
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/p30
SDI Compliance SMPTE 259M, SMPTE 292M
SDI Metadata Support HD RP188 and closed captioning
Sampling Video: 4:2:2 Audio: 48kHz/24-bit
Color Precision 10-bit
Color Space REC 601
REC 709
Multiple Rate Support SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Codecs Supported Uncompressed QuickTime
Apple ProRes 422 (HQ) QuickTime
Apple ProRes 422 (LT) QuickTime
Apple ProRes 422 (Proxy) QuickTime
Avid DNxHD QuickTime
Avid DNxHD MXF
Display Built-in LCD for video, audio and timecode monitoring
Rack Size 1RU / less than 7" deep (approx. less than 18 cm)
Power Supply Built-in international AC power supply with IEC C14 inlet
110-240V, 50-60Hz

Note: AC power cord is not included
Packaging Info
Package Weight 4.15 lb
Box Dimensions (LxWxH) 19.2 x 7.4 x 3.4"
The user manual for the Blackmagic Design HyperDeck Studio 2 HYPERD/ST2 can be downloaded in .pdf format if it did not come with your new solid state/hdd recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design solid state/hdd recorderss, where you can use our link to download the user manual for the Blackmagic Design HyperDeck Studio 2 HYPERD/ST2.
