User manual for the Blackmagic Design Mini Converter HDMI to SDI CONVMBHS2
The user manual for the Blackmagic Design Mini Converter HDMI to SDI CONVMBHS2 provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

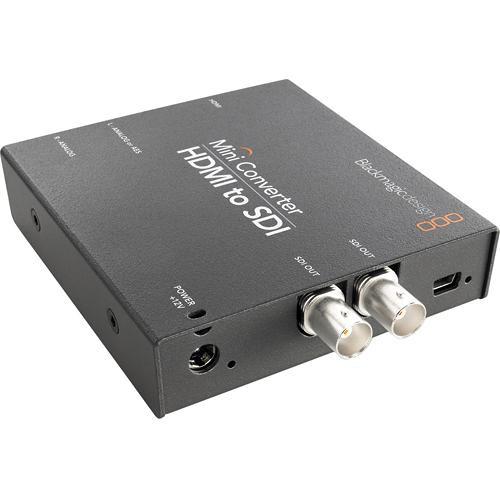

The Mini Converter HDMI to SDI from Blackmagic Design will accept an HDMI signal and convert it to 2 SDI outputs. You can also choose to embed audio from balanced AES/EBU or analog audio inputs. Use this device to add SDI output to cameras with HDMI connections or add SDI outputs to computers with HDMI or DVI connectors.
If you own a Blackmagic Design analog & digital converters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Blackmagic Design Mini Converter HDMI to SDI CONVMBHS2 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design Mini Converter HDMI to SDI CONVMBHS2:
Specifications
Input
HDMI (x1)
Output
SDI (x2) - switchable between SD, HD & 3Gbs SDI
Audio
Analog: (2) channels of professional balanced analog with standard 1/4" jack connections Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard
Standards
SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60 SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI SDI Video Sampling: 4:2:2 None SDI Video Rates: SDI video connections are switchable between standard definition and high definition. SDI Color Precision: 4:2:2 SDI Color Space: YUV SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60 Analog Color Precision: 4:2:2 Analog Color Space: YUV HDMI Format Support: 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60 HDMI Color Precision: 4:2:2 and 4:4:4 HDMI Color Space: YUV and RGB Copy Protection: For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP
The user manual for the Blackmagic Design Mini Converter HDMI to SDI CONVMBHS2 can be downloaded in .pdf
format if it did not come with your new analog & digital converters, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Blackmagic Design users keep a unique electronic library
for Blackmagic Design analog & digital converterss,
where you can use our link to download the user manual for the Blackmagic Design Mini Converter HDMI to SDI CONVMBHS2.
The user manual lists all of the functions of the Blackmagic Design Mini Converter HDMI to SDI CONVMBHS2,
all the basic and advanced features and tells you how to use the analog & digital converters.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Blackmagic Design service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Blackmagic Design Mini Converter HDMI to SDI CONVMBHS2. User manuals are also
available on the Blackmagic Design website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
