User manual Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020

Operating instructions and pdf manual for use - Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020 User manual, User manual Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020, Blackmagic, Design, Smart, Videohub, 20, x, 20


User manual for Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020

Overall rating 2.0
Overall Rating: 2.0

40% of respondents would recommend this to a friend.
Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Routers & Switchers
  • Safety instructions
  • Startup and operation of the routers & switchers
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020 Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020 Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020 Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020 Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020
Click to enlarge image

We recommend checking out our discussion threads on the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020, which address similar problems with connecting and setting up Routers & Switchers Blackmagic Design.



User manual for the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020

The user manual for the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

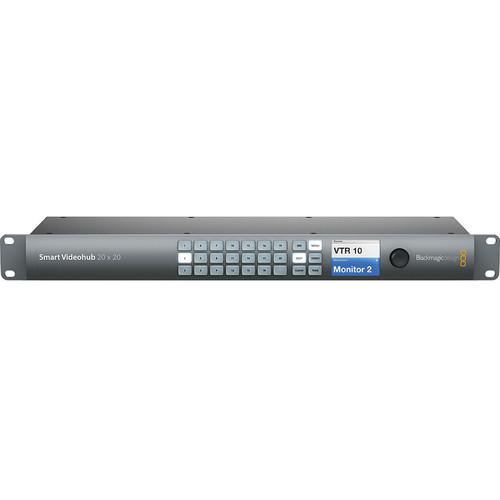

The Smart Videohub 20 x 20 6G-SDI from Blackmagic Design is a mixed format router with 20 6G-SDI inputs and 20 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. It supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a 1RU frame, the Smart Videohub ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network.

Note: IEC power cable is not included.
If you own a Blackmagic Design routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020:
Specifications
    Connections
    SDI Video Input 20 x 10-bit SD/HD/6G-SDI
    SDI Video Output 20 x 10-bit SD/HD/6G-SDI
    Reference Input Blackburst and TriSync for SD, HD and UHD 4K
    Multi-Rate Support Auto detection of SD, HD, or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI
    Updates USB 2.0 high speed (480 Mb/s) interface or via Ethernet
    Control 21 buttons for local control of Videohub
    6 buttons and scroll wheel for control of LCD display
    1 x RJ45 Ethernet
    1 x RS-422 input for controlling router crosspoint switching
    Configuration Via front panel LCD or use either RJ45 Ethernet
    USB 2.0 for setting IP address only
    Reclocking On all SDI outputs, auto switching between SD, HD, or 6G-SDI video
    Standards
    Format Support SD Format Support
    625/25 PAL
    525/29.97 NTSC
    525/29.98 NTSC

    HD Format Support
    720p 50/59.94/60
    1080i 50/59.94/60
    1080PsF 23.98/24/25/29.97/30
    1080p 23.98/24/25/29.97/30/50/59.94/60

    2K Format Support
    2048x1080p 23.98/24/25
    2048x1080PsF 23.98/24/25

    4K Format Support
    3840x2160p 23.98/24/25/29.97/30
    4096x2160p 24
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, ITU-R BT.656, and ITU-R BT.601
    SDI Video Rates SD-SDI: 270 Mb/s
    HD-SDI: 1.5 Gb/s
    3G-SDI: 3 Gb/s
    6G-SDI: 6 Gb/s
    SDI Video Sampling 4:2:2 and 4:4:4
    SDI Color Precision 4:2:2 and 4:4:4 10-bit
    SDI Audio Sampling 48 kHz and 24-bit
    SDI Color Space YUV or RGB
    SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M
    Software
    Software Control Router control included free for Windows and Mac OS X
    Internal Software Upgrade Via included updater application
    General
    Display LCD for video and menu settings
    Power Supply IEC power cable required
    90 to 240 VAC input
    Power Fail Protection Router connections preserved and restored instantly at power on
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -4 to 113°F (-20 to 45°C)
    Relative Humidity 0 to 90% non-condensing
    Rack Space 1 RU
    Dimensions (W x H x D) 19.00 x 1.73 x 6.30" (48.26 x 4.39 x 16.00 cm)
    Weight 4.4 lb (2.0 kg)
    Packaging Info
    Package Weight 5.95 lb
    Box Dimensions (LxWxH) 19.3 x 7.6 x 3.2"
    The user manual for the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020 can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design routers & switcherss, where you can use our link to download the user manual for the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020.

    The user manual lists all of the functions of the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design Smart Videohub 20 x 20 6G-SDI VHUBSMART6G2020. User manuals are also available on the Blackmagic Design website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
