User manual for the Bosch BRS-RAC2-8200A 8-Channel Recording Station F.01U.247.002
The user manual for the Bosch BRS-RAC2-8200A 8-Channel Recording Station F.01U.247.002 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

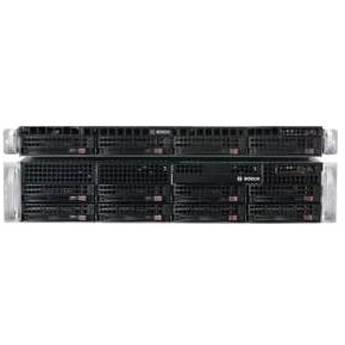

The Bosch Security Systems BRS-RAC2-8200A 8-Channel Recording Station 2U Rackmount (16 TB) features a pre-installed Bosch Recording Station software that can record footage from up to 8 IP cameras at multiple locations. A standard PC with BRS Viewer can be used as a viewing station for video playback. With support for RAID 5, this recording station ensures the highest level of data security. In addition, this system provides live viewing and recording of surveillance videos at a resolution of up to 2048 x 1536 pixels.
Designed as a centralized remote management system, the recording station offers easy access to all the information, regardless of whether you are on-site or at a remote network location. You can retrieve live and recorded video across the entire network. The built-in scalable GUI (graphical user interface) allows you to view live/recorded images from multiple remote locations on a single PC. This enables security managers to monitor and supervise multiple locations simultaneously, even if remote stations are connected via WAN. For enhanced security, multiple user authorization levels can be used to set individual permissions for each user determining the system access rights.
The recording software supports individual configuration of parameters such as camera viewing and control, playback and export of recordings, and types of permissible system configuration settings. The recording station can be programmed to handle specific situations and events automatically. It can also respond to alarms by recording higher quality videos and transmitting alarm messages to the security workforce.
The BRS-RAC2-8200A Recording Station maintains a database with a log of events such as login, log-off, status changes, image transmission, video export, and system shutdown. The information stored in the database can be easily transferred to MS Excel.
This versatile IP video solution can also be interfaced with a range of security and building management systems such as fire and access panels, ATM and POS terminals, and number plate capture and video content analysis solutions. Built on a reliable platform, this 8-channel recording station manages an entire surveillance infrastructure and is an ideal solution for distributed network environments.
If you own a Bosch network video recorders (nvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Bosch BRS-RAC2-8200A 8-Channel Recording Station F.01U.247.002 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch BRS-RAC2-8200A 8-Channel Recording Station F.01U.247.002:
Specifications
Resolutions
QCIF, CIF, 2CIF, 4CIF, HD 720p, HD 1080p Megapixel (arbitrary JPEG resolution up to 2048 x 1536 pixels)
Recording
PAL: 0,5 - 25 IPS NTSC: 0,5 - 30 IPS
Supported Video Codecs
Bosch MPEG-4 Bosch H.264 Axis MPEG-4 JPEG/MJPEG via HTTP/TFTP
Supported Cameras
AutoDome Junior HD / HD IVA AutoDome 100/200/300/500 AutoDome Easy IP / IP II / IP II E Axis MPEG4 (no PTZ) Dinion IP (MPEG4) NBN-823V-P Dinion NBN-832V-P HD Dinion NBN-921-P Dinion NBx 4xx P / P IVA Dinion NBx 4xx P SD / P SD IVA Dinion NDx 4xx P SD / P SD IVA Extreme IP FlexiDome IP FlexiDome NDN-921-P FlexiDome NDx 4xx P / P IVA NBC 255-P / 265 P / 225 P NDC 265 P / 225-P / 225 P I NDC-255-P / 255 P I VG4 AutoDome (H.264 IP module) VG5 AutoDome HD / SD VOT 320V
ATM Integration: DTP3N via RS232 (only EMEA) ATM/POS Integration: Bosch ATM/POS bridge via TCP/IP
Integration
IP Server Integration: Any IP server using socket connections for communication Alarm Panel Integration (intrusion, fire, access): Integration via RS232: AZ1010, BZ500, BZ1012, BZ1060, FPA5000, G-Series Panels, NZ500, NZ1008, NZ1012, NZ1060, UEZ, UGM2020
I/O
Digital I/O Modules (maximum 8 per BRS): Digital I/O Advantech ADAM-6017, ADAM-6018, ADAM-6022, ADAM-6024, ADAM-6050, ADAM-6050-W, ADAM-6051, ADAM-6051-W, ADAM-6052, ADAM-6055, ADAM-6060, ADAM-6060-W, ADAM-6066
Virtual Inputs
External software can trigger events via virtual inputs over TCP/IP
UPS
Loss of power can cause corruption of the Operating System or the stored video
To avoid loss of data and ensure trouble-free operation, we recommend installing an UPS for critical applications
To connect and configure the UPS, observe the manufacturer's documentation delivered with the UPS
The UPS is not contained in the product
Electromagnetic Compatibility
USA
FCC Part 15, Class A
EU
EMC Directive 204/108/EC
Interference Immunity: Conformance with EN 50130-4
Interference Emission: EN 55022, Class A
Mains Power Fluctuations: EN 61000-3-2
Voltage Fluctuations: EN 61000-3-3
Safety
USA UL 60950-1, 2nd edition CAN/CSA-C22.2 No.60950-1-07, 2nd edition
EU: EN 60950-1:2006 + A11:2009
Electrical
120 VAC Actual Output Wattage from Power Supply: 256.44 W Efficiency of Power Supply: 88% Total System Power Consumption: 291.41 W Total BTU/h: 994.59 Power Factor: 0.95 System AC Input VA Requirement: 306.75 VA
240 VAC Actual Output Wattage from Power Supply: 256.44 W Efficiency of Power Supply: 90% Total System Power Consumption: 284.94 W Total BTU/h: 972.49 Power Factor: 0.92 System AC Input VA Requirement: 309.71 VA
Environmental
Operating Temperature: 50 to 95°F (10 to 35°C) Non-operating Temperature: -40 to 158°F (-40 to 70°C) Operating Relative Humidity: 8 to 90% (non-condensing) Non-Operating Relative Humidity: 5 to 95% (non-condensing)
