User manual for the Bosch NBN-71022-BA DINION IP 7000 HD Day/Night IP F.01U.291.632

The user manual for the Bosch NBN-71022-BA DINION IP 7000 HD Day/Night IP F.01U.291.632 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

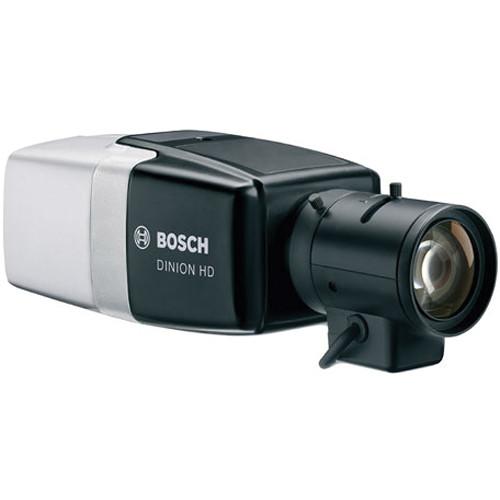

The Bosch NBN-71022-BA DINION IP 7000 HD Day/Night IP Box Camera with IVA captures Full HD images at 30 ips. The camera offers IP video and simultaneously outputs analog video via an SMB connector. This hybrid functionality offers an easy migration path from an analog CCTV to an IP-based system. The camera features a mechanical filter that allows it to capture images in color with illumination as low as 0.22 lux and in B&W up to 0.05 lux. The filter can be switched manually via the alarm input or web browser, or automatically via a light level sensor.
If you own a Bosch wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch NBN-71022-BA DINION IP 7000 HD Day/Night IP F.01U.291.632 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch NBN-71022-BA DINION IP 7000 HD Day/Night IP F.01U.291.632:
Specifications
    Sensor
    Type 1/2.7" CMOS
    Pixels 1952 x 1092 (2.03 MP)
    Video
    Video Performance Sensitivity - (3200 K, reflectivity 89%, F1.2, 30 IRE)
    Color: 0.22 lux (0.022 fc)
    Mono: 0.05 lux (0.005 fc)
    Dynamic Range: 76 dB WDR, 92 dB WDR (with iAE)
    Video Compression H.264 (MP); M-JPEG
    Streaming Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth, Regions of Interest (ROI)
    Overall IP Delay Minimum: 120 ms
    Maximum: 240 ms
    GOP Structure IP, IBP, IBBP
    Encoding 1 to 30 (25) ips
    Video Resolution 1080p HD: 1920 x 1080
    960p HD 4:3 (Cropped): 1280 x 960
    720p HD: 1280 x 720
    Upright 9:16 (Cropped): 400 x 720
    D1 4:3 (Cropped): 704 x 480
    480p SD: 704 x 480 (encoding), 854 x 480 (displayed)
    432p SD: 768 x 432
    288p SD: 512 x 288
    240p SD: 352 x 240 (encoding), 432 x 240 (displayed)
    144p SD: 256 x 144
    Audio
    Streaming Full duplex / half duplex
    Signal-to-Noise Ratio >50 dB
    Compression AAC-LC, G.711, L16 (live and recording)
    Input / Output
    Analog Video Output CVBS (PAL/NTSC), 1 Vpp, SMB, 75 Ω (surge protected)
    Aspect Ratio 4:3 letterbox, 4:3 cropped, or 16:9 mode
    Audio 1 x mono line in, 1 x mono line out
    Audio Connector 3.5 mm stereo jack
    Signal Signal Line Input: 12 kΩ typical, 1 Vrms maximum
    Signal Line Output: 1 Vrms at 1.5 kΩ typical
    Alarm 2 x inputs
    Connector: Clamp (non-isolated closing contact)
    Activation Voltage: 5 to 40 VDC (3.3 VDC with DC-coupled 22 kΩ pull-up resistor)
    Relay Output 1 x output
    Connector: Clamp
    Voltage 30 VAC or 40 VDC, maximum 0.5 A continuous, 10 VA
    Data Port RS‑232/422/485
    Local Storage
    RAM 10 sec pre-alarm recording
    Memory Card Slot Supports up to 32 GB SDHC / 2 TB SDXC card (sold separately)

    An SD card of class 6 or higher is recommended for HD recording
    Recording Continuous recording, ring recording alarm / events / schedule recording
    Software Controls
    Unit Configuration Via web browser or configuration manager
    Firmware Updates Remotely programmable
    Remote Viewing Options Web browser, Bosch Video Client, or third party software
    Optical
    Lens Mount CS mount (C-mount with adapter ring)
    Lens Connector Standard 4-pin DC-iris connector
    Lens Type Manual and DC-Iris auto-detect with override DC-iris drive, maximum 50 mA continuous
    Lens Control Wizard from web page or camera button
    Network
    Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication
    Encryption TLS 1.0, SSL, DES, 3DES, AES (optional)
    Ethernet 10/100 Base-T, auto-sensing, half/full duplex
    Connectivity ONVIF Profile S, Auto-MDIX
    General Specifications
    Day & Night Color, monochrome, auto
    White Balance ATW (2500 to 10000 K), ATWhold and manual
    Shutter Automatic Electronic Shutter (AES), fixed (1/30 (1/25) to 1/15000) selectable, default shutter
    Backlight Compensation Off, auto
    Contrast Enhancement On/off
    Sharpness Sharpness enhancement level selectable
    Privacy Masking Four independent areas, fully programmable
    Video Motion Analysis Intelligent Video Analysis
    Electrical
    Power Supply 24 VAC 50/60 Hz
    12 VDC
    Power-over-Ethernet: 48 VDC nominal
    Current Consumption 12 VDC: 500 mA
    24 VAC: 450 mA
    PoE 48 VDC: 175 mA
    Power Consumption 12 VDC: 6 W
    24 VAC: 10.8 W
    PoE 48 VDC: 8.4 W
    PoE IEEE 802.3af (802.3at Type 1)
    Environmental
    Temperature Operating: -4 to 122°F (-20 to 50°C)
    Storage: -22 to 158°F (-30 to 70°C)
    Humidity Operating: 20 to 93% RH
    Storage: up to 98% RH
    Certifications and Approvals
    Standard SMPTE 274M-2008 Standard: 1920 x 1080 (resolution), progressive scan, color representation complies with ITU-R BT.709, 16:9 aspect ratio, 25 and 30 fps
    296M-2001 Standard: 1280 x 720 (resolution), progressive scan, color representation complies with ITU-R BT.709, 16:9 aspect ratio, 25 and 30 fps
    Standards
    Emission EN 55022 Class B FCC Part 15, class B
    Immunity EN 50130-4 (PoE, +12 VDC, 24 VAC) EN 50121-4
    Safety EN 60950-1, UL 60950-1 (2nd edition), CAN/CSA-C 22.2 No. 60950-1
    Vibration Camera with lens as per IEC60068-2-6 (5 m/s2, operational)
    ONVIF Conformance EN 50132-5-2; IEC 62676-2-3
    Certification Europe: CE
    USA: UL
    Canada: ULC
    Mechanical
    Color RAL 9007 metallic titanium
    Tripod Mount Bottom (isolated) and top 0.25" (6.35 mm) 20 UNC
    Dimensions (WxHxL) 3.1 x 2.6 x 5.5" (7.8 x 6.6 x 14.0 cm) without lens
    Weight 1.5 lb (0.7 kg) without lens
