User manual for the BOSS OC-3 Super Octave Pedal OC-3
The user manual for the BOSS OC-3 Super Octave Pedal OC-3 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Effects Pedals.

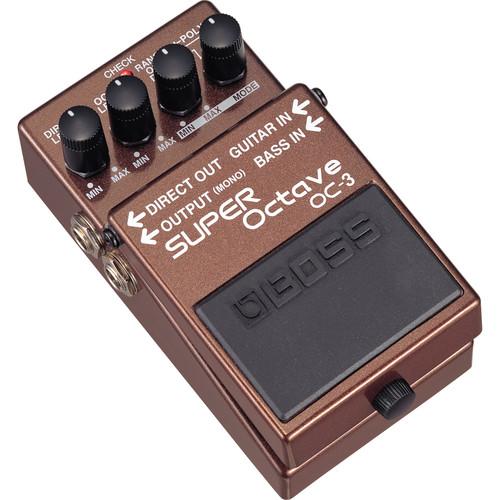

The BOSS OC-3 Super Octave is a compact but feature-rich effect pedal for guitar or bass. It generates a tone one octave below the input, and can also produce a second extra tone two octaves below the input. This gives you the ability to blend up to three individual sounds: the original note, a note one octave below and one that's two octaves below.
The OC-3 also has a Drive knob that adds in distortion to the octave tone, for a growling bass distortion or a fuzzy synth sound. Since you're able to input chords as well as single notes, this greatly expands the usability of the effect versus its predecessor, the OC-2. Also, when used as a bass effect, the OC-3 automatically optimizes itself to suit the range of a bass guitar.
If you own a BOSS effects pedals and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the BOSS OC-3 Super Octave Pedal OC-3 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the BOSS OC-3 Super Octave Pedal OC-3:
Specifications
Nominal Input Level
-20 dBu
Input Impedance
1 MOhm
Nominal Output Level
-20 dBu
Output Impedance
1 kOhm
Recommended Load Impedance
10 kOhms or greater
Residual Noise
-96 dBu (IHF-A, Typ.), all knobs at center position
Controls
Pedal switch, DIRECT LEVEL knob, OCT1 LEVEL knob, CONTROL knob, MODE knob
Connectors
GUITAR IN jack, BASS IN jack, OUTPUT (MONO) jack, DIRECT OUT jack, AC adapter jack (9 VDC)
Power Supply
9 VDC: Dry Battery 9 V type (6F22/9 V), AC Adapter (PSA-Series, available separately)
The user manual for the BOSS OC-3 Super Octave Pedal OC-3 can be downloaded in .pdf
format if it did not come with your new effects pedals, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other BOSS users keep a unique electronic library
for BOSS effects pedalss,
where you can use our link to download the user manual for the BOSS OC-3 Super Octave Pedal OC-3.
The user manual lists all of the functions of the BOSS OC-3 Super Octave Pedal OC-3,
all the basic and advanced features and tells you how to use the effects pedals.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from BOSS service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the BOSS OC-3 Super Octave Pedal OC-3. User manuals are also
available on the BOSS website under Pro Audio - Musical Instruments - Effects Pedals.
