User manual for Cactus LV5 Laser Trigger DICLASLV5
Overall Rating: 4.0
80% of respondents would recommend this to a friend.
Manufacturer: Cactus
Basic description and contents of package
Product classification: Photography - Photo Accessories - Camera Trigger Systems
Safety instructions
Startup and operation of the camera trigger systems
Tips for setting up your Cactus
Settings and expert assistance
Contact Cactus service
Troubleshooting
Warranty information
Price: 90 USD
We recommend checking out our discussion threads on the Cactus LV5 Laser Trigger DICLASLV5,
which address similar problems with connecting and setting up Camera Trigger Systems Cactus.
User manual for the Cactus LV5 Laser Trigger DICLASLV5
The user manual for the Cactus LV5 Laser Trigger DICLASLV5 provides
necessary instructions for the proper use of the product Photography - Photo Accessories - Camera Trigger Systems.

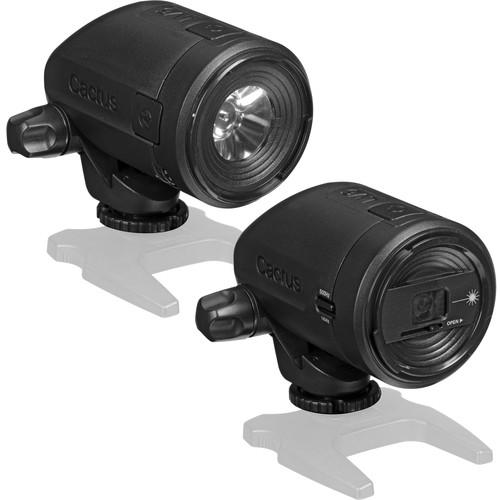

The Cactus LV5 Laser Trigger utilizes an emitter and sensor that can be set up to trigger a camera or flash unit upon changes in the beam's signal. The sensor features an embedded 2.4 GHz Cactus V5 radio module that has 16 channels and a range of up to 328' as well as a standard 3.5mm shutter release port for making a physical connection to certain cameras. Also, the emitter and sensor can work with a large 492' distance between them for more elaborate setups.
The LV5 works either with Cactus V5 compatible transceivers or modules or by connecting directly to a compatible camera or flash unit with the included 3.5mm cord. It features Duo Mode Triggering for providing the option of triggering when either the transmission is blocked or when an object is removed from between the sensor and emitter. The device also supports flash sync speeds up to 1/1000 second and offers a variety of shutter delay and freeze settings for customizing your setup. You can set the trigger to single, continuous, and bulb shot modes in coordination with your camera and each device runs on either 2 or 4 AAA batteries.
If you own a Cactus camera trigger systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cactus LV5 Laser Trigger DICLASLV5 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cactus LV5 Laser Trigger DICLASLV5:
Specifications
Frequency
2.4 GHz
Range
Sensor to Emitter Up to 492' (150 m) in dark environment Up to 66' (20 m) under strong and direct sunlight
Radio Triggering 1-328' (0.3-100.0 m)
Channels
16
Laser Type
Class 1
Laser Frequency
500 Hz 1 kHz
Flash Synch Speeds
Up to 1/1000 sec
Tilt
20° down to 65° up
Port
3.5 mm shutter release
Voltage
Camera Voltage Handling: 0-6 V
Certifications
RoHS
Operating Temperature
-4 to 122°F (-20 to 50°C)
Power Requirements
Emitter: 2 or 4 x AAA 1.5 V batteries Sensor: 2 or 4 x AAA 1.5 V batteries
Battery Life
Emitter: 40 hours with 2 AAA or 80 hours with 4 AAA Sensor, Standby: 90 hours with 2 AAA or 180 hours with 4 AAA Sensor, Trap Operation: 85 hrs with 2 AAA or 175 hours with 4 AAA Sensor, Escape Operation: 60 hours with 2 AAA or 125 hours with 4 AAA
Dimensions
Emitter: 3.6 x 3.1 x 3.7" (92 x 80 x 93 mm) Sensor with Hood: 6.0 x 3.4 x 3.7" (153 x 80 x 93 mm)
Weight
Emitter: 4.8 oz (135 g) Sensor with Hood: 6.2 oz (175 g)
The user manual for the Cactus LV5 Laser Trigger DICLASLV5 can be downloaded in .pdf
format if it did not come with your new camera trigger systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Cactus users keep a unique electronic library
for Cactus camera trigger systemss,
where you can use our link to download the user manual for the Cactus LV5 Laser Trigger DICLASLV5.
The user manual lists all of the functions of the Cactus LV5 Laser Trigger DICLASLV5,
all the basic and advanced features and tells you how to use the camera trigger systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Cactus service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Cactus LV5 Laser Trigger DICLASLV5. User manuals are also
available on the Cactus website under Photography - Photo Accessories - Camera Trigger Systems.
