User manual for Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Canon
- Basic description and contents of package
- Product classification: Photography - Digital Cameras - DSLR Cameras
- Safety instructions
- Startup and operation of the dslr cameras
- Tips for setting up your Canon
- Settings and expert assistance
- Contact Canon service
- Troubleshooting
- Warranty information
Click to enlarge image
|
We recommend checking out our discussion threads on the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002,
which address similar problems with connecting and setting up DSLR Cameras Canon.
|
User manual for the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002
The user manual for the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002 provides
necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

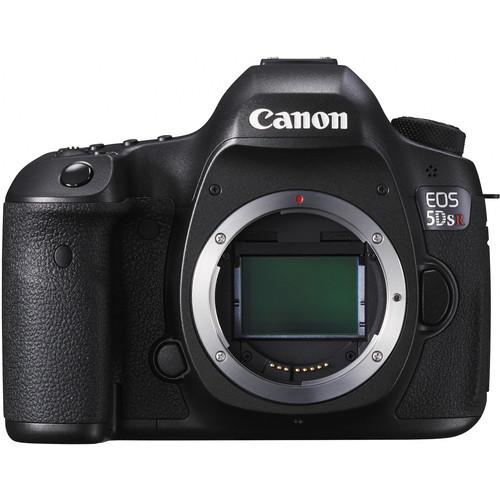

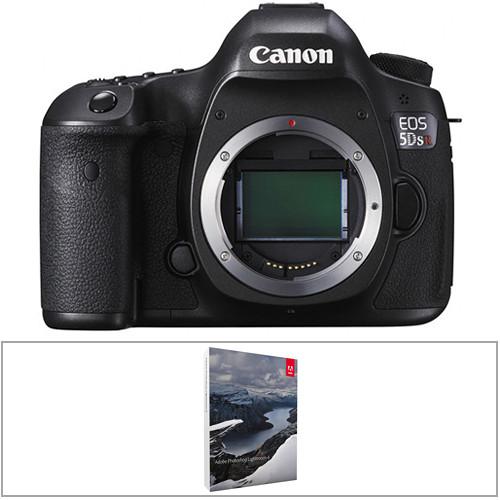

Providing the full resolving power of its new sensor, the EOS 5DS R DSLR Camera from Canon is a variant of the 5DS with the sensor's low-pass filter rendered neutral. By cancelling the effect of the filter, the 50.6MP sensor is enabled to deliver an even higher resolution with more intricate details. The potential downside to this is that the cancellation function brings with it the greater possibility of moiré and other color artifacts. This is a camera for those interested in the utmost resolution from the sensor and the ability to control color artifacts either in-camera or with post-processing software.
This long-awaited follow-up to the vaunted 5D Mark III and brings with it new technology and a number of significant upgrades, placing it in very lofty territory for a DSLR. Featuring a full-frame 50.6MP CMOS sensor, the camera captures ultra-high resolution images suitable for large-scale printing and extensive, creative cropping. The Dual DIGIC 6 Image Processors provide the wherewithal to handle this abundance of information, enabling fast performance speeds and top-of-the-line image quality. The 5DS R also features advanced video capability including HD 1080p capture at 30 fps and a Time Lapse movie function which takes still photos at set intervals and combines them into a full HD movie.
The EOS Scene Detection System with the 150,000-pixel RGB+IR metering sensor provides precise exposure and color metering and the 61-point High Density Reticular AF sensor with 41 cross-type points enables accurate AF placement and Canon's EOS iTR (Intelligent Tracking and Resolution) enhances AF performance by using information from the metering sensor. Crop shooting at 1.3x and 1.6x allows for flexibility in the size of image files created and the selection of lenses. Also, a built-in intervalometer and bulb timer expand your creative options. An advanced mirror control mechanism and new selectable shutter release lag times control camera vibration for reduced blur and quiet operation. Anti-flicker functionality compensates for flickering light sources, providing consistent exposure metering during continuous shooting. Despite its large file sizes, the 5DS R can still offer up to a 5 fps continuous shooting rate.
For stable eye-level composition the 5DS R features the Intelligent Viewfinder II with 100% coverage. In addition to its clear view, a superimposed, transparent LCD is incorporated which displays setting information and offers a customizable view of focus points and grid lines. The 3.2" ClearView II LCD monitor provides playback and live view composition with 1.04m-dot resolution and a 170º viewing angle. High-transparency materials and multi-coating resist reflections for bright viewing, especially important when shooting video.
The 5DS R is a durable and multi-faceted camera for advanced use, yet its dimensions match that of the 5D Mark III. A magnesium-alloy build provides resistance to impact and the elements and inputs include a PC terminal, 3-pin input, an external microphone jack as well as HDMI out and USB 3.0 compatibility. The base plate and tripod socket have also been reinforced to reduce vibrations and ensure a secure attachment to support systems. Dual media slots for Compact Flash and SD format memory cards are supported. A customizable Quick Control System allows you to easily switch between frequently used settings and functions.
|
If you own a Canon dslr cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002:
| Lens Mount | Canon EF | | Camera Format | Full-Frame (1.0x Crop Factor) | | Pixels | Actual: 53 Megapixel
Effective: 50.6 Megapixel | | Max Resolution | 50.3 MP: 8688 x 5792 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Sensor Type / Size | CMOS, 36 x 24 mm | | File Formats | Still Images: JPEG, RAW
Movies: MOV, MPEG-4 AVC/H.264
Audio: Linear PCM (Stereo) | | Bit Depth | 14-bit | | Dust Reduction System | Yes | | Memory Card Type | CompactFlash
SD
SDHC
SDXC | | Focus Type | Auto & Manual | | Focus Mode | Automatic (A), Full-time Servo (F), Manual Focus (M), Single-servo AF (S) | | Autofocus Points | Phase Detection:61, 41 cross-type | | Viewfinder Type | Pentaprism | | Viewfinder Eye Point | 21.00 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.71x | | Diopter Adjustment | - 3 to +1 m | | Display Screen | 3.2" Rear Screen LCD (1,040,000) | | Screen Coverage | 100% | | Diagonal Angle of View | 170.0° | | ISO Sensitivity | Auto, 100-6400 (Extended Mode: 50-12800) | | Shutter | Type: Mechanical
Speed: 1/8000 - 30 seconds | | Mirror Lock-Up | Yes | | Metering Method | Center-weighted average metering, Evaluative metering, Partial Metering, Spot metering | | Exposure Modes | Modes: Aperture Priority, Bulb, C1, C2, Custom, Manual, Programmed Auto, Scene Auto Selector, Shutter Priority
Metering Range: EV 0.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps) | | White Balance Modes | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight | | Flash Modes | TTL Auto
Wireless | | Built-in Flash | No | | Max Sync Speed | Mechanical Shutter: 1 / 200 seconds | | Flash Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Dedicated Flash System | eTTL | | External Flash Connection | Hot Shoe, PC Terminal | | Video Recording | Yes, NTSC/PAL | | File Size | 1920 x 1080p (Full HD) | | Video Format | High Definition
MPEG AVC/H.264
1920 x 1080p / 29.97 fps / 25 fps / 23.98 fps
Standard Definition
MPEG AVC/H.264
1280 x 720p / 59.94 fps / 50 fps
MPEG AVC/H.264
640 x 480p / 29.97 fps / 25 fps | | Exposure Control | Auto: Shutter Speed, Aperture, ISO
Manual: Shutter Speed, Aperture, ISO | | ISO Sensitivity | Auto, 100 - 6400, Expandable to 12800 | | Exposure Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Focus | Auto
Manual
Continuous Auto | | Video Clip Length | 1920 x 1080
ALL-I11 min. (654 MB / min.)
1920 x 1080
IPB33 min. (255 MB / min.)
1280 x 720
ALL-I13 min. (583 MB / min.)
1280 x 720
IPB38 min. (196 MB / min.)
640 x 480
IPB97 min. (78 MB / min.) | | Audio Recording | Built-in Mic: With Video
Optional External Mic: With Video | | Continuous Shooting | Up to 5 fps | | Shutter Lag | 0.059 seconds | | Self Timer | 2 seconds, 10 seconds | | Interval Recording | Yes | | Connectivity | 1x Audio Out, Canon N3, HDMI C (Mini), USB 3.0 | | Wi-Fi Capable | Not Specified By Manufacturer | | Battery | 1x LP-E6N Rechargeable Lithium-ion Battery Pack | | AC Power Adapter | AC Adapter Kit ACK-E6 (Optional) | | Operating/Storage Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 85% | | Dimensions (WxHxD) | 6.0 x 4.6 x 3.0" / 15.2 x 11.7 x 7.6 cm | | Weight | 29.81 oz / 845 g Body Only | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 9.8 x 7.2 x 6.0" | |
The user manual for the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002 can be downloaded in .pdf
format if it did not come with your new dslr cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Canon users keep a unique electronic library
for Canon dslr camerass,
where you can use our link to download the user manual for the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002.
The user manual lists all of the functions of the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002,
all the basic and advanced features and tells you how to use the dslr cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Canon service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Canon EOS 5DSR DSLR Camera (Canon 5DS R Body) 0582C002. User manuals are also
available on the Canon website under Photography - Digital Cameras - DSLR Cameras.
