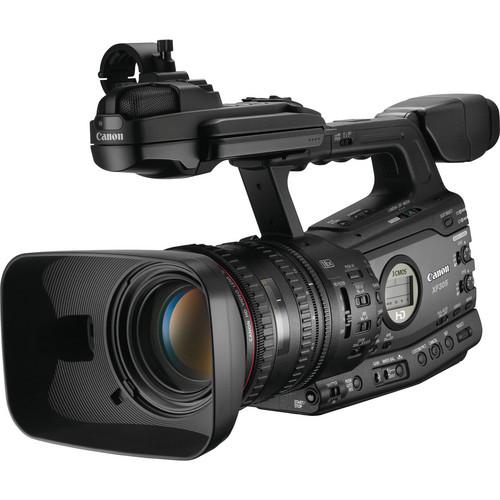

User manual for the Canon XF305 Professional PAL Camcorder XF305E
The user manual for the Canon XF305 Professional PAL Camcorder XF305E provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - PAL Camcorders.
Along with the XF300, the XF305 Professional PAL Camcorder represents Canon's entry into professional, three-chip solid-state video acquisition. Following on the heels of its widely respected XH line of tape-based camcorders, the XF305 takes advantage of the latest HD technology – along with Canon's MPEG-2 4:2:2 codec – to record Full HD video to affordable Compact Flash cards.
Everything you could want in a handheld, professional camcorder is here in one sleek, affordable package: three 1920 x 1080 CMOS sensors, multiple bit rates (up to 50Mbps), variable resolution and frame rates, industry-standard MXF file wrappers, a newly developed L-Series 18x zoom lens, and full image customization.
|
If you own a Canon pal camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Canon XF305 Professional PAL Camcorder XF305E in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Canon XF305 Professional PAL Camcorder XF305E:
| Image Device | 3x 1/3" CMOS Sensors
2.37 Mp (2.07 Mp effective)
RGB prism system | | Lens | 18x optical zoom
1.5x digital zoom
4.1-73.8mm (29.3-527.4mm, 35mm equivalent)
f/1.6-22
17 elements in 14 groups
82mm filter diameter | | Horizontal Resolution | 1000 TV lines or more (1920 x 1080i mode) | | Focusing System | Ring control or automatic (Instant AF, Medium AF, TV AF, Face Detection AF) | | Zoom | Ring, Rocker or Handle control.
Zoom Rocker: Variable speed/Fixed speed (16 speed level settings available)
Handle zoom: Fixed speed (16 speed level settings available) | | Iris | f/1.6-22; ring control; Push Auto Iris; Full Auto | | Minimum Illumination | Not specified by manufacturer | | Built-in Filters | Neutral Density (3 glass filters: 1/4, 1/16, 1/64) | | Minimum Focus Distance | 20mm (wide macro), 1 m (entire zoom range) | | Video Recording System | Compression: MPEG-2 Long GOP
Color Space: 4:2:2 (at 50 Mb/s recording)
File Format: MXF Recording Modes:
50 Mb/s CBR (4:2:2), MPEG-2 422P@HL: 1920 x 1080/50i, 25p; 1280 x 720/50p, 25p
35 Mb/s VBR (4:2:0), MPEG-2 MP@HL: 1920 x 1080/50i, 25p; 1280 x 720/50p, 25p
25 Mb/s CBR (4:2:0), MPEG-2 MP@H14: 1440 x 1080/50i, 25p | | Audio Recording Format | 2-channel, PCM digital recording, 16-bit; 48 kHz | | Audio Control | Independent limiters and auto/manual settings | | Frame Rates | 50i, 25p (all resolutions); 50p (1280 x 720 resolution only) | | Slow & Quick Motion Function | 720p: 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 fps
1080p: 12, 15, 18, 20, 21, 22, 23, 24, 25 fps | | Image Stabilization | SuperRange Optical (Lens Shift) with angle & vector movement detection
3 modes: Standard, Powered, Dynamic | | LCD Monitor | 4" (10.1 cm) color, approx. 1.23 million dots
Set brightness, contrast, color, sharpness, backlight, black & white
Adjustable left/right position | | Viewfinder | 0.52" (1.3 cm) color, approx. 1.55 million dots
Set brightness, contrast, color, backlight, black & white
Adjustable vertical tilt
+2.0 to -5.5 diopter | | Microphone | Yes, with attenuation and level meter | | Memory Card Slot | CF Card Type 1: 2 slots (movie files only); UDMA4, 30 MB/s or faster (40 MB/s or faster for Fast/Slow recording)
SD/SDHC/SDXC Card: still images, custom picture data, clip metadata, custom settings | | Still Picture Resolution | During video recording: 1920 x 1080
During playback: 1920 x 1080, 1280 x 720 | | Scan Reverse | Up/down, left/right, up/down/left/right image inversion | | Exposure | Metering: Standard (center-weighted), Spotlight, Backlight
Range: 50-100,000 lux
Compensation: -2 to +2 EV (14 steps)
Full Auto Mode | | Shutter Modes | 3 Position Switch: OFF (Full Auto) / ON / SEL (Auto; Speed; Angle; Clear Scan (CS); Slow Shutter (SLS)) | | Shutter Speed | 1/18 to 1/2000 depending on frame rate
Slow Shutter: 1/3, 1/6, 1/12, 1/25 depending on frame rate | | Shutter Angle | 11.25° to 360° depending on frame rate | | Clear Scan | 50i/p: 50-251.15 Hz
25p: 25-251.15 Hz | | White Balance | Auto, Manual, A, B, Daylight, Tungsten
-50 to +50 white balance offset for R,G,B | | Time Code | Countup Setting: Regen, RecRun, FreeRun, External, Hold
Start Value Setting: "00:00:00:00", Set/Reset selectable | | Gain Selection | Assignable L, M, H settings (-6 dB / -3 dB / 0 dB / 3 dB / 6 dB / 12 dB / 18 dB / 21 dB / 33 dB / TUNE (0.5 dB increments from 0 to 21 dB)) | | Automatic Gain Control | Setting: Full Auto; AGC On; Manual
Limit: 3 dB; 6 dB; 9 dB; 12 dB; 15 dB; 18 dB (Off/21 dB) | | Custom Picture | Stored Configurations: 9 (3 factory presets)
Storage Medium: SD/SDHC memory card (all customization data and metadata)
Gamma: 6 profiles
Master Pedestal: -50 to +50
Master Black: -50 to +50 for each of R,G,B
Black Gamma: Adjustable height, width, and apex
Low Key Saturation: -50 to +50 adjusts color saturation in low-brightness area
Knee: Adjusts over exposure characteristic (Automatic, Slope, Point, Saturation)
Sharpness: Adjustment for Detail level, Detail frequency, Coring, HV balance, Detail limit, Knee Aperture, Level Depend, Ingredient Ratio
Noise Reduction: Off, Automatic, On (1 to 8)
Skin Detail: Effect Level (Low, Middle, High), Hue, Chroma, Area, Y Level
Selective Noise Reduction: Effect Level (Low, Middle, High), Hue, Chroma, Area, Y Level
Color Matrix: -50 to +50 6-way matrix, Gain, Phase
White Balance: -50 to +50 white balance offset for R,G,B
Color Correction: Area selection / area revision of two areas
Setup Level: -50 to +50 On/Off
Press: On / Off
Clip 100% IRE: Limits output to 100% after setup adjustment | | Maximum Recording Time | Not specified by manufacturer | | Input and Output Connectors | HD/SD-SDI: BNC (x1 Output)
Component: D Connector (x1 Output)
Composite: 3.5mm mini jack (x1 Output); BNC (x1 Output)
HDMI: Standard Type A (x1 Output)
Time Code: BNC (x1 switchable Input/Output)
Genlock: BNC (x1 Input only)
Mic/Line: XLR 3-pin (x2 Input) with 48V phantom power (x2 Input); 3.5mm stereo (x1 Input)
USB: Mini-B USB 2.0 (x1 Output)
Headphone: 3.5mm Mini (x1 Output)
Remote Control Terminal: LANC (2.5mm) (x1 Input) | | Tally | x2 lamps | | Accessory Shoe | Hot shoe (EOS flash units supported) | | Power Requirements | 7.2V DC (Battery Pack) | | Power Consumption | 9W | | Battery Recording Time | Approx. 165 minutes | | Battery Backup | Lithium coin battery (built-in) | | Operating Temperature | 23 to 113°F (-5 to 45°C), 60% relative humidity | | Dimensions (WxHxD) | Approx. 7.1 x 7.6 x 15.5" (18.0 x 19.2 x 39.4 cm) | | Weight | Approx. 6.0 lb (2.7 kg) - camera only | | Package Weight | 13.7 lb | | Box Dimensions (LxWxH) | 17.9 x 11.7 x 9.6" | |
The user manual for the Canon XF305 Professional PAL Camcorder XF305E can be downloaded in .pdf
format if it did not come with your new pal camcorders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Canon users keep a unique electronic library
for Canon pal camcorderss,
where you can use our link to download the user manual for the Canon XF305 Professional PAL Camcorder XF305E.
The user manual lists all of the functions of the Canon XF305 Professional PAL Camcorder XF305E,
all the basic and advanced features and tells you how to use the pal camcorders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Canon service.
